2569-14 Overview

Fiber Optic FC Connector

2569-14 Parametric

Parameter NameAttribute value
MakerJohanson Manufacturing Corporation ( JMC )
Reach Compliance Codecompliant

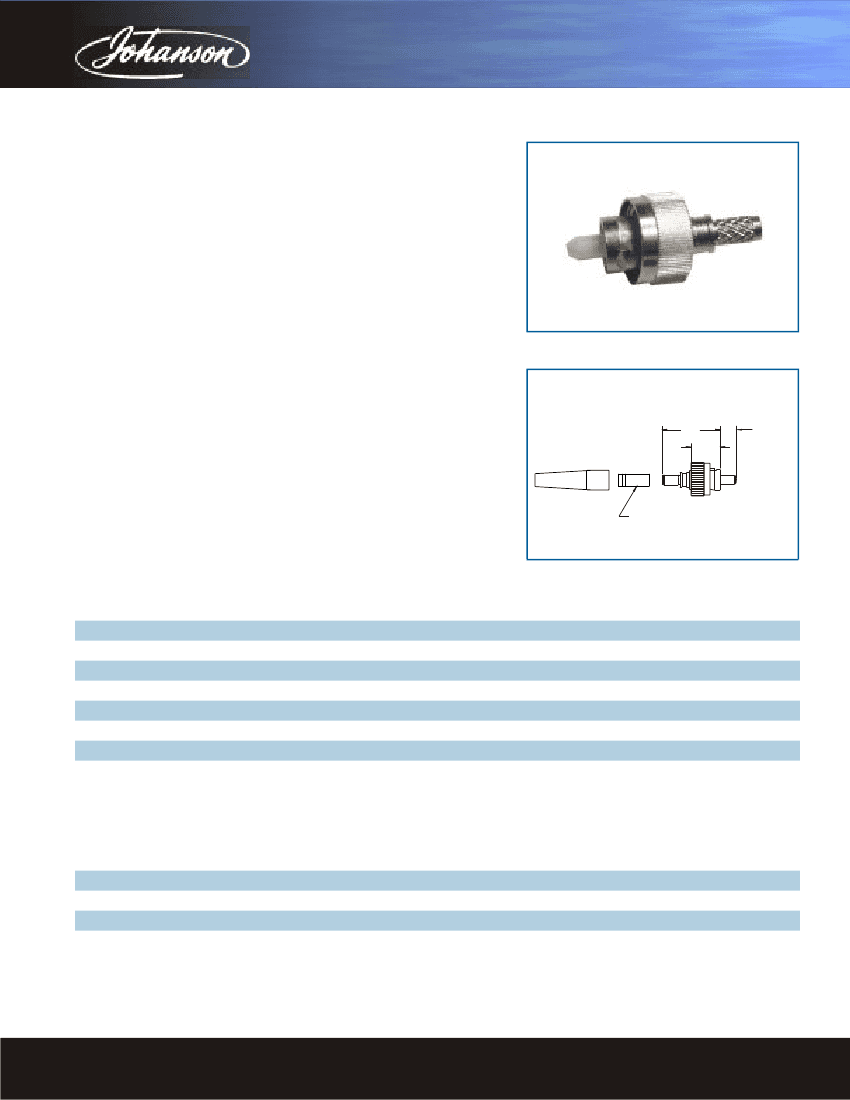

Connector typeFIBER OPTIC FC CONNECTOR
FC SHORT BODY UN-SPRUNG
FIBER OPTIC CONNECTORS
Cage Code: 91293
DS1050
0010
Features
One piece construction
Small, compact and light weight
TIA/EIA 604 compliant
Compatible with FC adapters and connectors
Compatible with standard polishing equipment
900um and 2.0 to 3.0mm cable compatible
Materials:
Nickel-plated Brass
Body:
Nickel-plated Brass
Sleeve:
Zirconia
Ferrule:
2569 Series
Specifications
Insertion Loss:
Return Loss:
Operating Temp:
Durability:
Cable retention:
0.15dB typical for Single-mode
<-45dB typical for PC polish
-40° to 85° C
>500 cycles
>25Lb, straight pull
.65
.33
(REF)
.148
+.001
- .000
CRIMP SLEEVE
Part Numbers
Description
FC Un-Sprung Connector
FC Un-Sprung Connector
FC Un-Sprung Connector
FC Un-Sprung Connector
FC Un-Sprung Connector
FC Un-Sprung Connector
1
2
Application
SM
MM
MM
APC
MM
SM
ID
126
127
144
126
142
125
1
P/N
2569-1
2569-2
2569-3
2569-11
2569-14
2569-42
Boot
Yellow, 3mm
Black, 3mm
Black, 3mm
Green, 3mm
Black, 3mm
Black, 3mm
2
Other ID’s available, contact factory
.
Boots listed are shipped with the connector unless otherwise specified at time of order.
Contact factory for other colors and sizes.
Related Products
FC Connectors
FC Adapters
High-Rel Aerospace FC Connectors
BELLCORE Style Boot Kit
2553 series
2523 series
2547 and 2550 series
2579 series
Data contained on this specification sheet is believed to be accurate as of the publication date. Johanson reserves the right to make changes
deemed appropriate. Consult the factory for current engineering drawings and data.
Johanson Fiber Optics Group, L.L.C
301 Rockaway Valley Road, Boonton, NJ 07005, Tel: 1-888-800-6618 Fax: 1-973-334-5322
www.johansonfiber.com
