8412569150: DescriptionDry Reed Relay, SPST, Momentary, 0.08A (Coil), 12VDC (Coil), 960mW (Coil), 3A (Contact), 10000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT; CategoryMechanical and electronic products relay; File Size171KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

8412569150 Overview

Dry Reed Relay, SPST, Momentary, 0.08A (Coil), 12VDC (Coil), 960mW (Coil), 3A (Contact), 10000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT

8412569150 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	19.1 mm
body height	19.9 mm
Body length or diameter	68.1 mm
Maximum coil current (DC)	0.08 A
Coil operating voltage (DC)	9 V
Coil power	960 mW
Coil release voltage (DC)	1 V
Coil resistance	150 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	3A@10000VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@10000VDC
Maximum contact voltage (AC)	10000 V
Maximum contact voltage (DC)	10000 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	8412569150
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	3 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BOX
physical size	68.1mm x 19.1mm x 19.9mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER AND WIRE

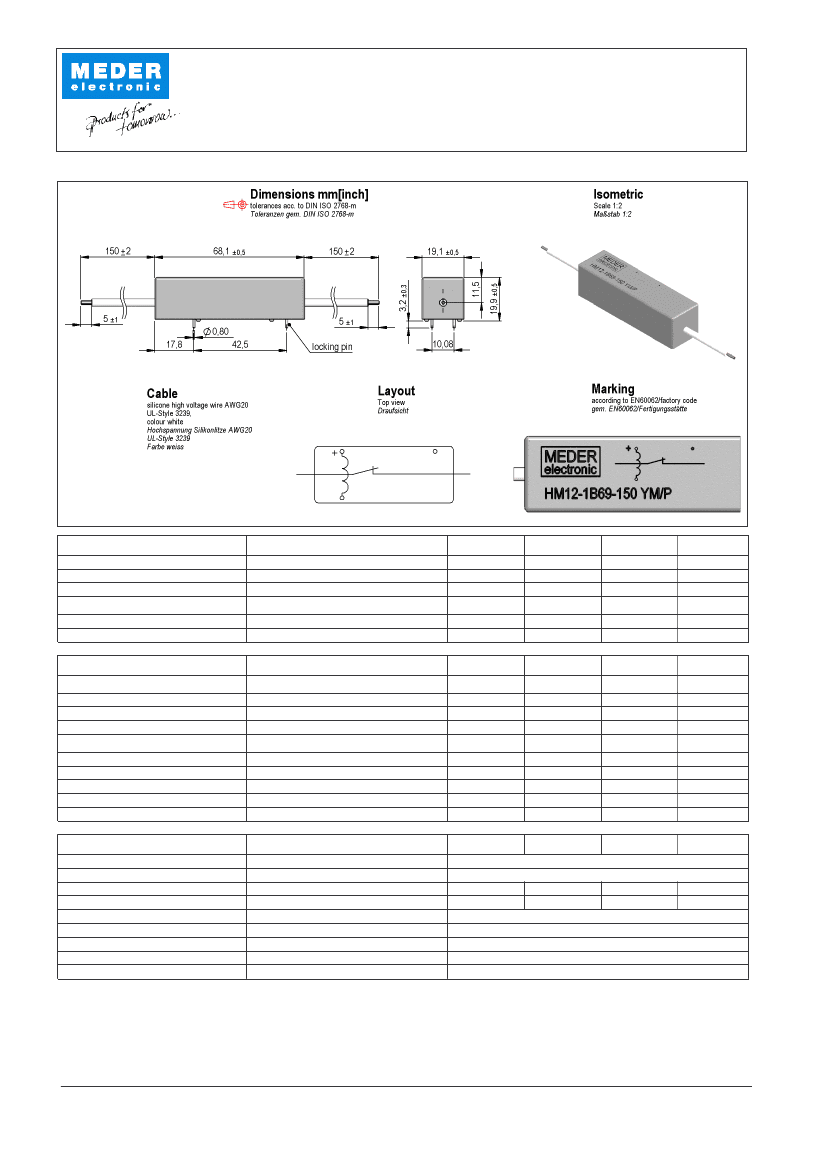

Preview

Download Datasheet

View All

&

$

%

"#

!

'

"

' (

)

*

& +

0/

"

1 2"(

)

3 &24 (

)

.

, *

&

-

")

&

#/

")

' "

")

+ / ") (

)

+ / ")

"

' -

"

' "

"

? 9 +" (

)

4&

" 5

*

' &

"

"- 3'

,

5"

/

" #67

" (

,8

3'

:

6

1

9 '

(

+ /$ ; (

"

*< =$ ;>

6

(

)

")

!

2

+ /$ ; (

(

+ /"

,

"

9<@

& " + /

!"

#

? 2 !'

")

*< =$ ;>

!

63'

2

(

)

) -

1 - 5 "

1 -

/ "

' &&

- "&

-

! 5

# "

' "

2#

3

") / ' ' "

"

" ' ' "

'

<

")

& "

' ""

"&"

*

/ * <

"#

-

:

3

D

#

)"

"

" /

"

#

/"

3

D

& )

)"

5-

(

AB46 '

'* C

&& (

$

&& (

5-

B4D?* '<

'* C

$ "

%

'/ ")

'/ ") 5-
