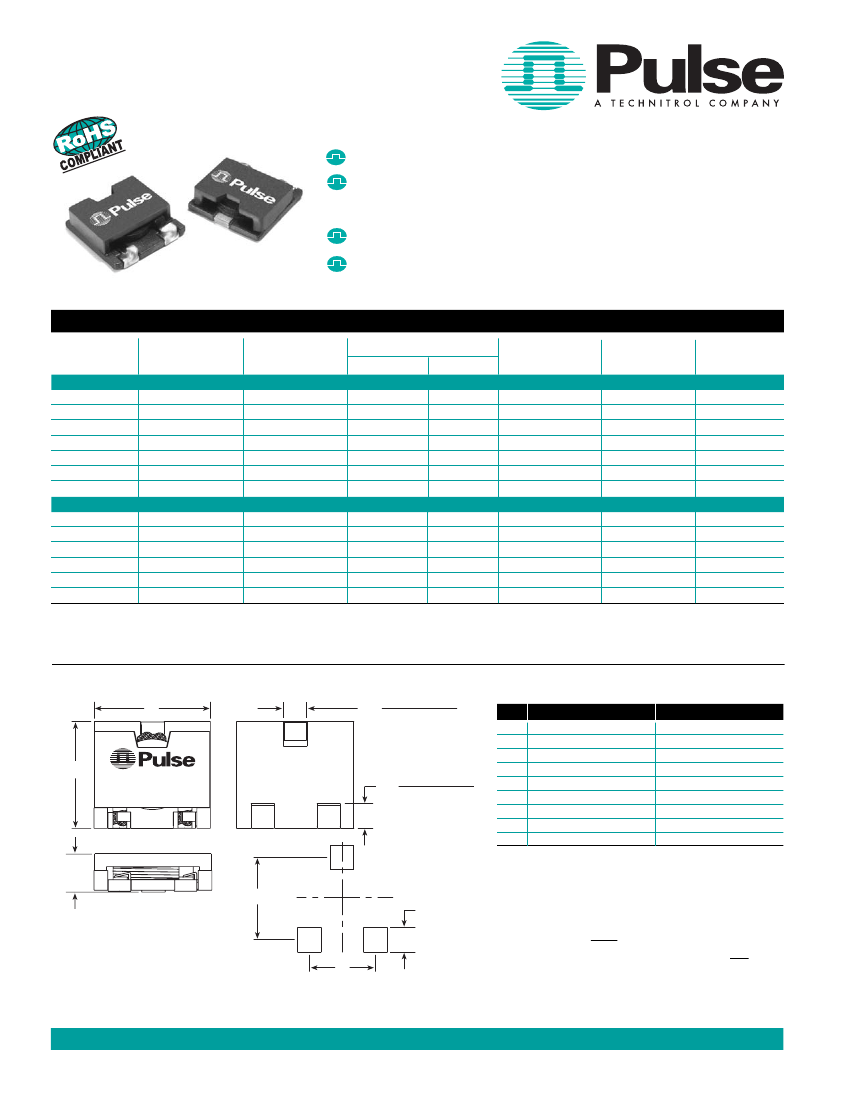

SMT POWER INDUCTORS
Flat Coils - PG0006 and PG0138 Series
Height:
6.0mm Max (PG0006) - 4.8mm Max (PG0138)
Footprint:
13.4mm x 13.3mm (PG0006)
13.0mm x 12.8mm (PG0138)
Current Rating:
up to 25A
DC
Inductance Range
0.50µH to 5.0µH
Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C
1
Part
Number
PG0006 S
ERIES
PG0006.601
PG0006.102
PG0006.212
PG0006.312
PG0006.422
PG0006.462
PG0006.552
PG0138 S
ERIES
PG0138.601
PG0138.102
PG0138.222
PG0138.332
PG0138.472
PG0138.552
7,8
Inductance
@Irated
(μH TYP)
0.50
0.90
1.9
2.8
3.8
4.2
5.0
0.54
0.90
1.87
2.64
3.95
4.40
2
Irated
3
(A)
25
20
14
12
10
9.0
8.0
23
18
14
12
9.3
8.2
DCR
(mΩ)
TYP
0.6
1.4
3.0
7.0
7.0
9.8
11.8
1.40
3.0
7.0
9.8
11.8
11.8
MAX
0.75
1.75
3.6
7.5
7.5
10.4
12.4
1.75
3.6
7.5
10.4
12.4
12.4
Inductance
@0A
DC
(μH ±20%)
0.60
1.0
2.1
3.1
4.2
4.6
5.5
0.60
1.0
2.2
3.3
4.7
5.5
Saturation
4
Current
I
SAT
(A)
23
20
14
12
10
9
8
28.3
22.8
15.5
12.2
10.2
8.2
Heating
5
Current I
DC
(A)
25
23
18
14
14
12
9.3
23
18
14
12
9.3
9.3
Mechanical
A
3X
.100 ± .010
2,54 ± 0,25
Dim.
A
B
C
D
E
F
G
H
I
PG0006
.528/13,40 MAX
.523/13,28 MAX
.236/6,00 MAX
.260/6,60 ±.005/0,12
.417/10,60 ±.005/0,12
3x.146/3,70 ±.005/0,12
.787/20,00
.945/24,00
.272/6,91
PG0138
.504/12,80 MAX
.512/13,00 MAX
.193/4,90 MAX
.260/6,60 ±.005/0,12
.425/10,80 ±.005/0,12
3x.146/3,70 ±.005/0,12
.630/16,00
.945/24,00
.232/5,90
B
Date Code
PG0006.XXX
PG0138.XXX
Country of Origin
3X
.100 ± .010
2,54 ± 0,25
(NO CONNECTION)
C
D
F
PG0006
PG0138
Weight
......................3.0 grams .............2.4 grams
Tape & Reel.................340/reel
................600/reel
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
SUGGESTED
PAD LAYOUT
E
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
60
SPM2007 (7/07)
SMT POWER INDUCTORS
Flat Coils - PG0006 and PG0138 Series
Schematic
1
H
2
I
G
TAPE & REEL LAYOUT
Notes from Tables
1. The temperature of the component (ambient plus temperature
rise) must be within the specified operating temperature range.
2. Inductance at Irated is a typical inductance value for the
component taken at rated current.
3. The rated current listed is the lower of the saturation current
@ 25°C or the heating current.
4. The saturation current, I
S A T
, is the current at which the
component inductance drops by 10% typical (20% typical for
PG0138.XXX)
at an ambient temperature of 25°C. This current is
determined by placing the component in the specified ambient
environment and applying a short duration pulse current
(to eliminate self-heating effects) to the component.
5. The heating current, I
DC
, is the DC current required to raise the
component temperature by approximately 40°C. The heating
current is determined by mounting the component on a typical
PCB and applying current for 30 minutes. The temperature is
measured by placing the thermocouple on top of the unit under
test. Take note that the component’s performance varies depend-
ing on the system condition. It is suggested that the component
be tested at the system level, to verify the temperature rise of the
component during system operation.
6. Unless otherwise specified, all testing is made at 100kHz,
0.25V
AC
.
7. Optional Tape & Reel packaging can be ordered by adding a
"T" suffix to the part number (i.e. PG0006.102 becomes
PG0006.102T). Pulse complies to industry standard tape and reel
specification EIA481.
8. To order RoHS compliant part, add the suffix “NL” to the part
number (i.e. PG0006 becomes PG0006NL and PG0006T
becomes PG0006NLT).
PG0006 TYPICAL INDUCTANCE VS. DC BIAS
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
.552
.462
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
PG0138 TYPICAL INDUCTANCE VS. DC BIAS
.552
INDUCTANCE (µH)
INDUCTANCE (µH)
.422
.312
.472
.332
.222
.102
.601
.212
.102
.601
0
2
3
5
6
8
9
11
12
14
15
17
18
20
21
23
24
26
27
29
30
32
33
35
36
38
39
CURRENT (A)
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
61
0
2
3
5
6
8
9
11
12
14
15
17
18
20
21
23
24
26
27
29
30
32
33
35
36
38
39
CURRENT (A)
SPM2007 (7/07)
