P0762.104NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P0762.104NLT

P0762.104NLT: DescriptionGeneral Purpose Inductor, 100uH, 20%, 1 Element, SMD, 5137, ROHS COMPLIANT; CategoryPassive components inductor; File Size157KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

P0762.104NLT Overview

General Purpose Inductor, 100uH, 20%, 1 Element, SMD, 5137, ROHS COMPLIANT

P0762.104NLT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	5137
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
uppercase and lowercase codes	5137
structure	Unshielded
DC Resistance	0.84 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	P0762
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	12.95 mm
Package form	SMT
Package width	9.4 mm
method of packing	TR
Maximum rated current	0.6 A
series	P0762NL
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED WITH PEAK DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

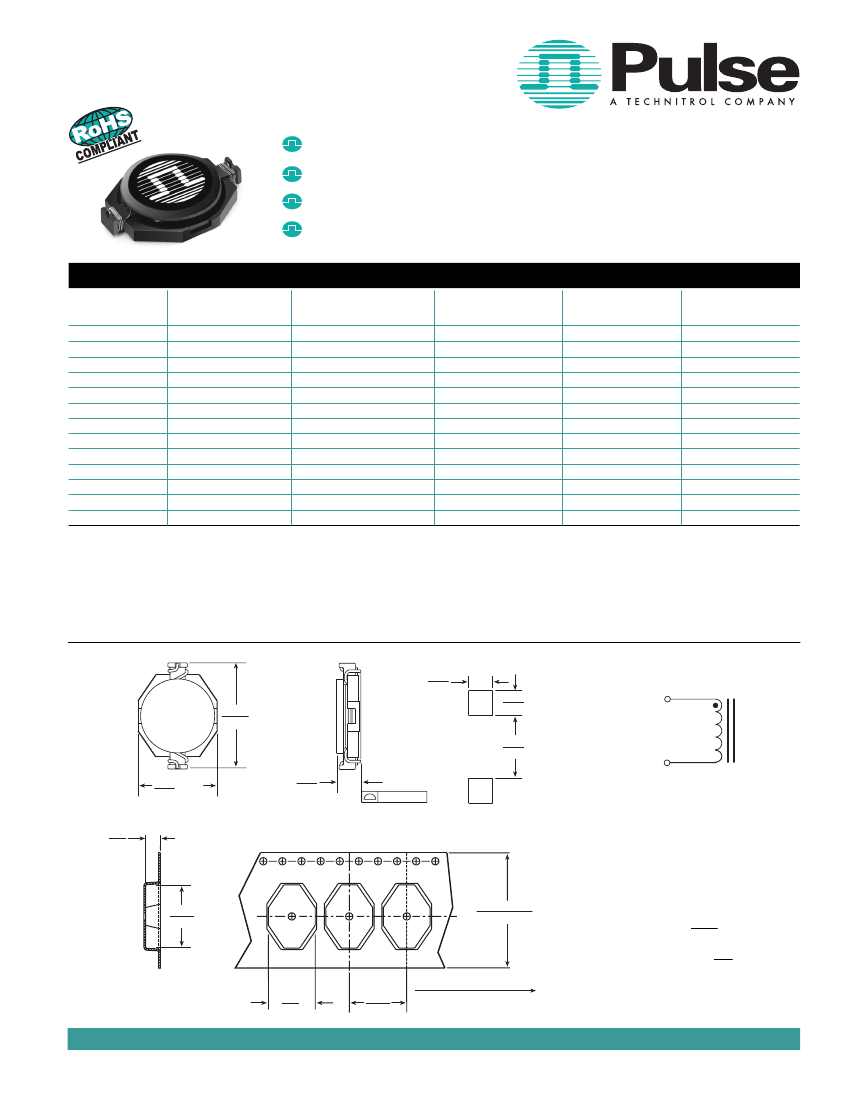

SMT POWER INDUCTORS

Unshielded Drum Core - P0762NL Series

Height:

3.0mm Max

Footprint:

13.0mm x 9.4mm Max

Current Rating:

up to 2.0A

Inductance Range:

10µH to 1000µH

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

6,7

Number

P0762.103NL

P0762.153NL

P0762.223NL

P0762.333NL

P0762.473NL

P0762.683NL

P0762.104NL

P0762.154NL

P0762.224NL

P0762.334NL

P0762.474NL

P0762.684NL

P0762.105NL

Inductance

@ I

(µH ± 20%)

100

150

220

330

470

680

1000

Irated

(A)

2.0

1.5

1.3

1.1

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.05

DCR (MAX)

(mΩ)

110

150

230

300

390

660

840

1200

1900

2700

4000

5300

8400

Saturation Current

(A) @

25°C

2.4

2.0

1.6

1.4

1.0

0.9

0.7

0.6

0.5

0.4

0.3

0.2

0.1

Heating Current

(A)

2.0

1.5

1.3

1.1

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

.05

NOTES:

1. The temperature of the component (ambient plus temperature

rise) must be within the specified operating temperature range.

2. Inductance tested at 100kHz, 10mV

RMS

3. Inductance drop = 10% typical at the Saturation Current.

ΔT

= 15°C rise typical at the heating current.

5. The rated current is the lower of the saturation or heating current.

6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part number

(i.e. P0762.103NL becomes P0762.103NLT). Pulse complies to industry standard tape and

reel specification EIA481.

7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not

necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions.

If a part number does not have the "NL" suffix, but an RoHS compliant version is required,

please contact Pulse for availability.

Mechanical

SUGGESTED PAD LAYOUT

.110

2,79

.115

2,92

.290

7,37

.370 MAX

9,40

.118

3,00

Schematic

XXX

.510 MAX

12,95

.118

3,00

MAX

.004/0,10

Weight

. . . . . . . . 0.8 grams

Tape & Reel

. . . . . 1000/reel

.520

13,21

.945

± .012

24,00

± 0,30

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

USER DIRECTION OF FEED

TAPE & REEL LAYOUT

.380

9,65

.472

12,00

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

SPM2007 (11/07)
