LH7A400
Preliminary data sheet
FEATURES
• 32-bit ARM9TDMI™ RISC Core
– 16 kB Cache: 8 kB Instruction and 8 kB Data
– MMU (Windows CE™ Enabled)
– Up to 250 MHz; see Table 1 for options
• 80 kB On-Chip Static RAM
• Programmable Interrupt Controller
• External Bus Interface
– Up to 125 MHz; see Table 1 for options
– Asynchronous SRAM/ROM/Flash
– Synchronous DRAM/Flash
– PCMCIA
– CompactFlash
• Clock and Power Management
– 32.768 kHz and 14.7456 MHz Oscillators
– Programmable PLL
• Programmable LCD Controller
– Up to 1,024 × 768 Resolution
– Supports STN, Color STN, AD-TFT, HR-TFT, TFT
– Up to 64 k-Colors and 15 Gray Shades
• DMA (10 Channels)
– AC97
– MMC
– USB
• USB Device Interface (USB 2.0, Full Speed)
• Synchronous Serial Port (SSP)
– Motorola SPI™
– Texas Instruments SSI
– National MICROWIRE™
32-Bit System-on-Chip
• Three Programmable Timers
• Three UARTs
– Classic IrDA (115 kbit/s)
• Smart Card Interface (ISO7816)
• Two DC-to-DC Converters
• MultiMediaCard™ Interface
• AC97 Codec Interface
• Smart Battery Monitor Interface
• Real Time Clock (RTC)
• Up to 60 General Purpose I/Os
• Watchdog Timer
• JTAG Debug Interface and Boundary Scan
• Operating Voltage
– 1.8 V Core
– 3.3 V Input/Output
• 5 V Tolerant Digital Inputs (except oscillator pins)
– Oscillator pins P15, P16, R13, and T13 are
1.8 V ± 10 %.
• Operating Temperature:
−40°C
to +85°C

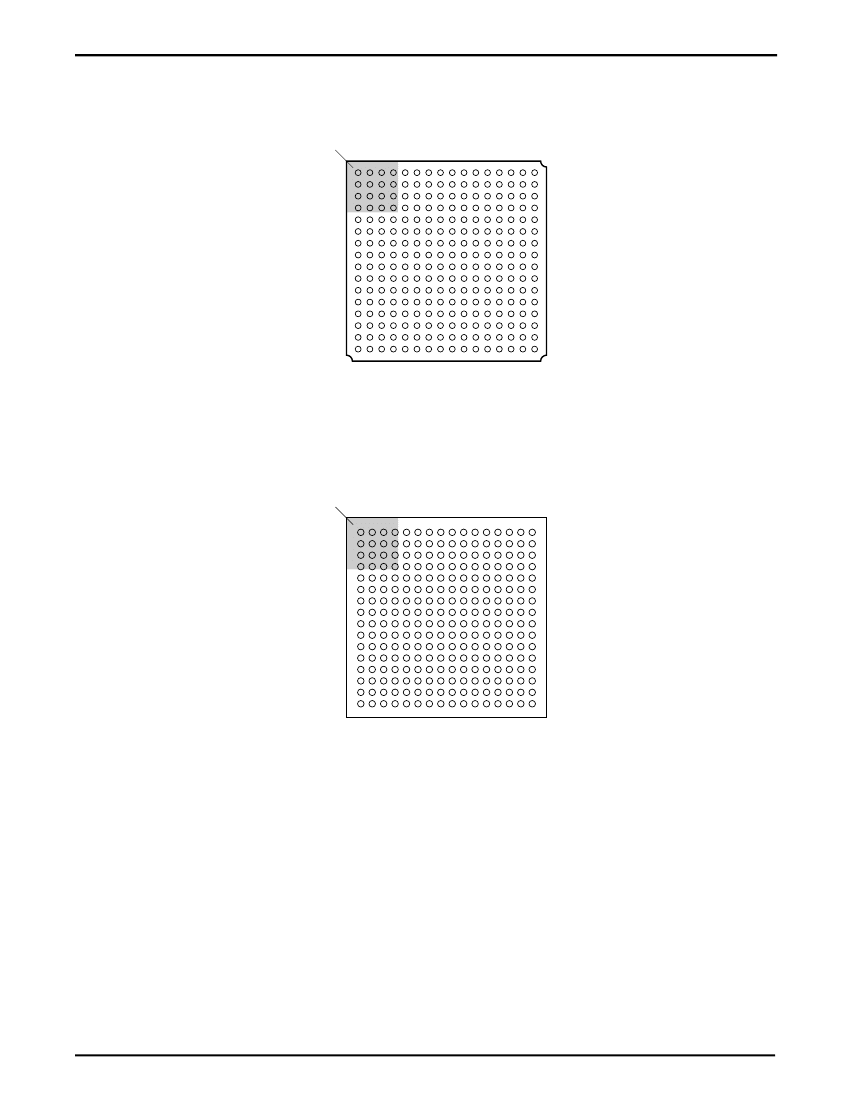

• 256-ball BGA or 256-ball LFBGA Package
DESCRIPTION
The LH7A400, powered by an ARM922T, is a com-
plete System-on-Chip with a high level of integration to
satisfy a wide range of requirements and expectations.
This high degree of integration lowers overall
system costs, reduces development cycle time and
accelerates product introduction.
Table 1. LH7A400 versions
PART NUMBER
LH7A400N0F076B5
LH7A400N0F000B3A
LH7A400N0F000B5
LH7A400N0G000B5
CORE
CLOCK
250 MHz/
245 MHz
200 MHz/
195 MHz
200 MHz/
195 MHz
200 MHz/
195 MHz
BUS
CLOCK
125 MHz
100 MHz
100 MHz
100 MHz
LOW POWER CURRENT BY MODE (TYP.)
Run = 250 mA; Halt = 50 mA; Standby = 129
µA
Run = 125 mA; Halt: 25 mA; Standby = 42
µA
Run = 125 mA; Halt: 25 mA; Standby = 42
µA
Run = 125 mA; Halt: 25 mA; Standby = 42
µA
TEMP. RANGE
0°C to +70°C/
−
40°C to +85°C
0°C to +70°C/
−
40°C to +85°C
0°C to +70°C/
−
40°C to +85°C
0°C to +70°C/
−
40°C to +85°C
Preliminary data sheet
1
DSP and ARM Processors
