HCPL7820#500 datasheet, PDF - EEWORLD Datasheet

HCPL7820#500: DescriptionIsolation Amplifier, 1 Func, 3750V Isolation-Min, 200MHz Band Width, CMOS, PDSO8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size506KB，15 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric View All

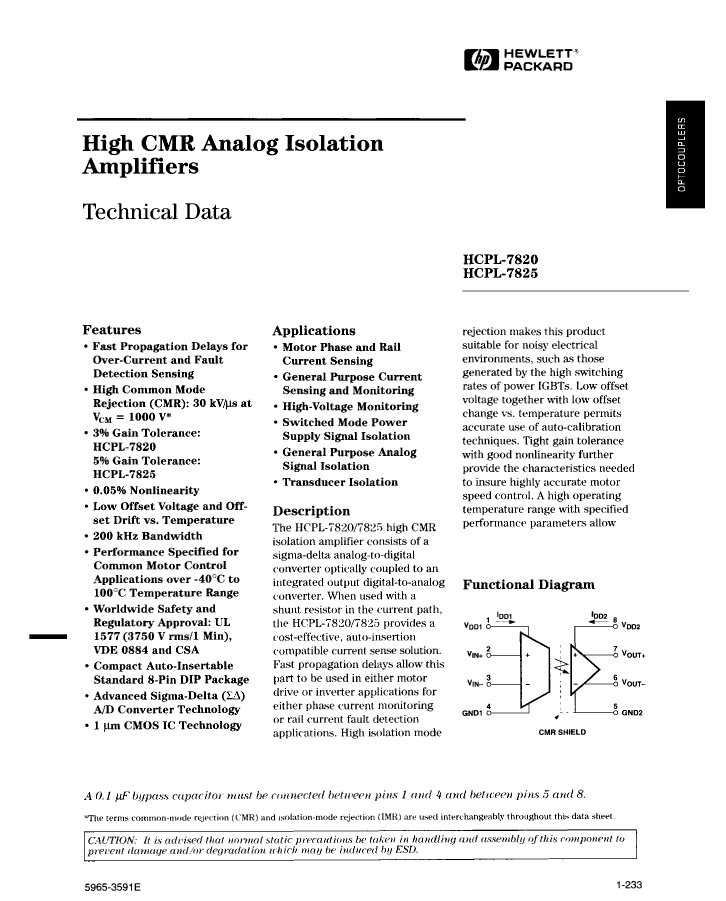

HCPL7820#500 Overview

Isolation Amplifier, 1 Func, 3750V Isolation-Min, 200MHz Band Width, CMOS, PDSO8

Parameter Name	Attribute value
Maker	Hewlett Packard Co.

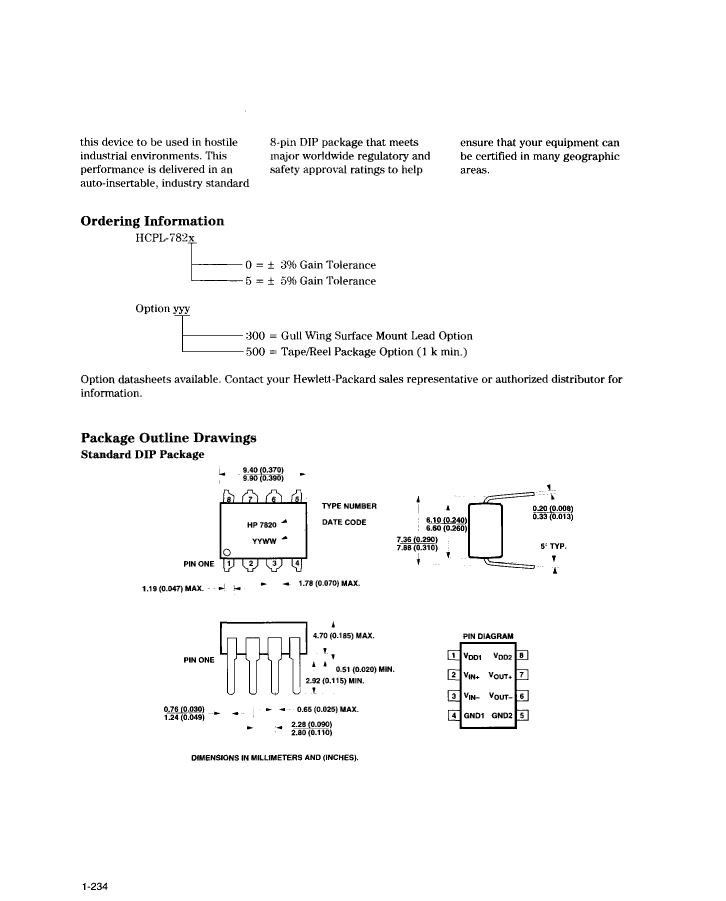

Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	ISOLATION AMPLIFIER
Nominal bandwidth (3dB)	200 MHz

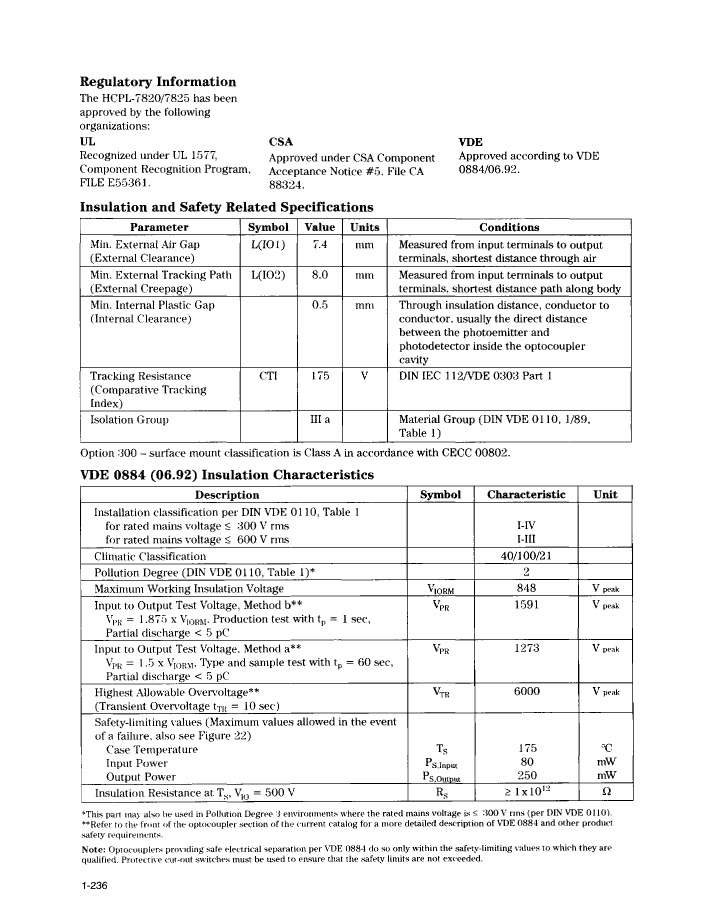

Maximum common mode voltage	3750 V
Minimum insulation voltage	3750 V
JESD-30 code	R-PDSO-G8
Number of functions	1
Number of terminals	8

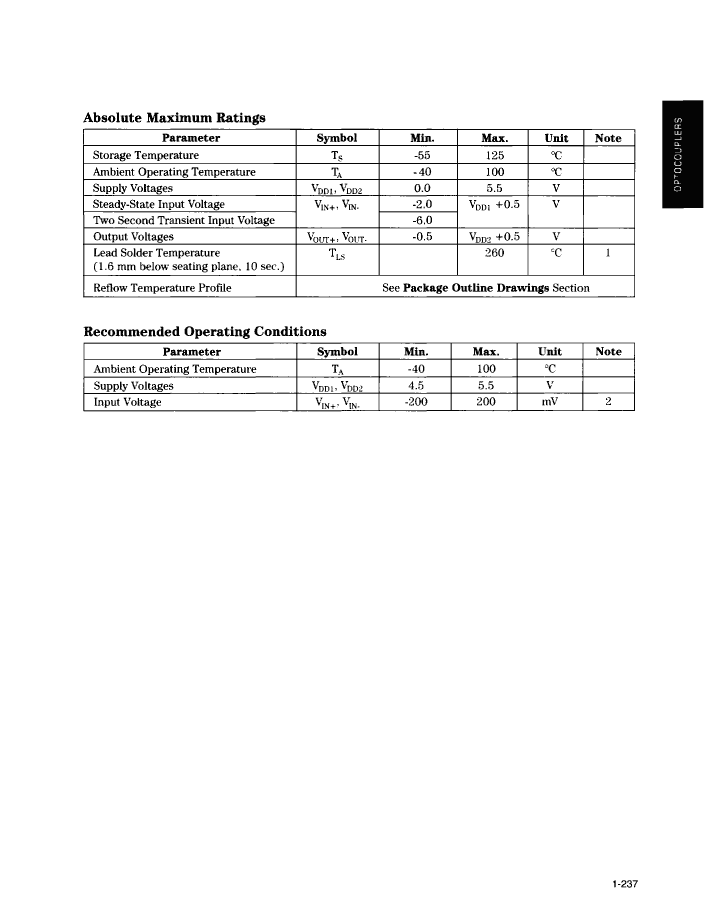

Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Supply voltage upper limit	5.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL

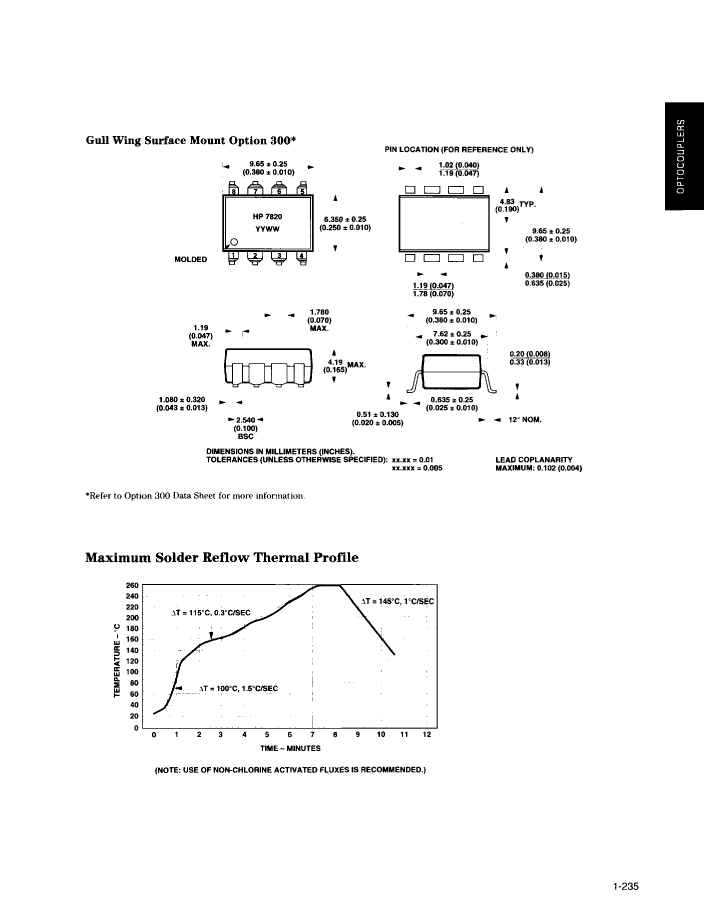

Terminal form	GULL WING
Terminal location	DUAL
Maximum voltage gain	8.4
Minimum voltage gain	7.6
