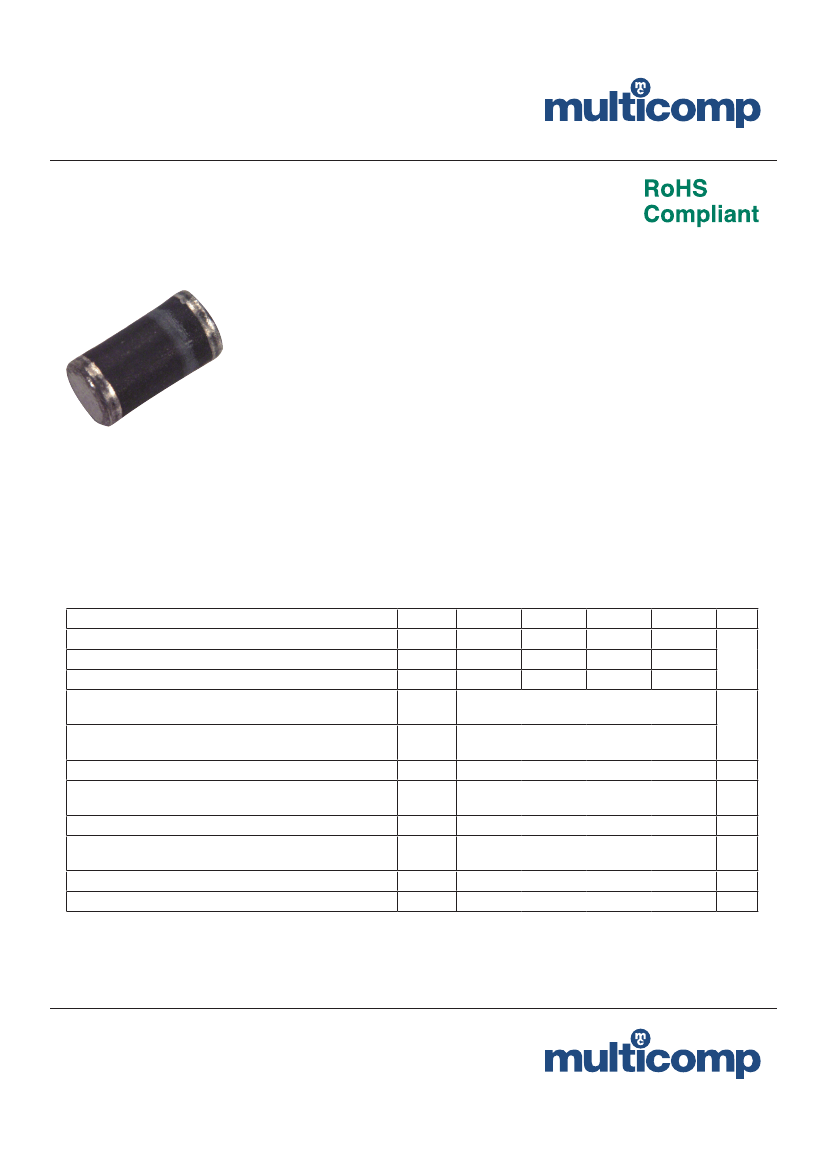

SMD Rectifier Diodes
Features:
•
•
•
•
Plastic package has UL Flammability Classification 94V-0
Construction utilizes void-free molded plastic technique
For surface mounted applications
High temperature : 250°C/10 seconds at terminals.
Mechanical Data:
Case
Terminals
Polarity
Mounting Position
Weight
Reverse Voltage
Forward Current
: JEDEC Mini MELF(DO-213AA) molded plastic body
: Solder plated, solderable per MIL-STD-750, method 2026
: Colour band denotes cathode end
: Any
: 0.0005 ounce, 0.015 gram
: 50 to 1000 Volts
: 1 Ampere
Maximum Ratings and Electrical Characteristics:
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Max. Recurrent Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Max. Average Forward
Rectified Current 0.375" (9.5mm) lead length at T
a
= 75°C
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
T
a
= 75°C
T
a
= 25°C
T
a
= 125°C
Symbol
V
rrm
V
rms
V
dc
I
(AV)
I
fsm
V
f
I
r
C
j
R
θJA
R
θJL
T
j
T
stg
LL4001G+
LL4002G+
LL4004G+
LL4007G+
Unit
50
35
50
100
70
100
1
400
280
400
1000
700
1000
A
V
25
1.1
5
100
15
75
30
-65 to +175
-65 to +175
V
μA
pF
°C/W
°C
°C
Max. Instantaneous Forward Voltage at 1A
Max. DC Reverse Current at
at Rated DC Blocking Voltage at
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance
(Note 2)
(Note 3)
Operating Temperature Range
Storage Temperature Range
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts
2. Thermal resistance from junction to ambient, 0.24×0.24’’ (6.0×6.0mm) copper pads to each terminal
3. Thermal resistance from junction to terminal, 0.24×0.24’’ (6.0×6.0mm) copper pads to each terminal
4. The typical data above is for reference only
www.element14.com
www.farnell.com
www.newark.com
Page <1>
30/10/18
V1.1
SMD Rectifier Diodes

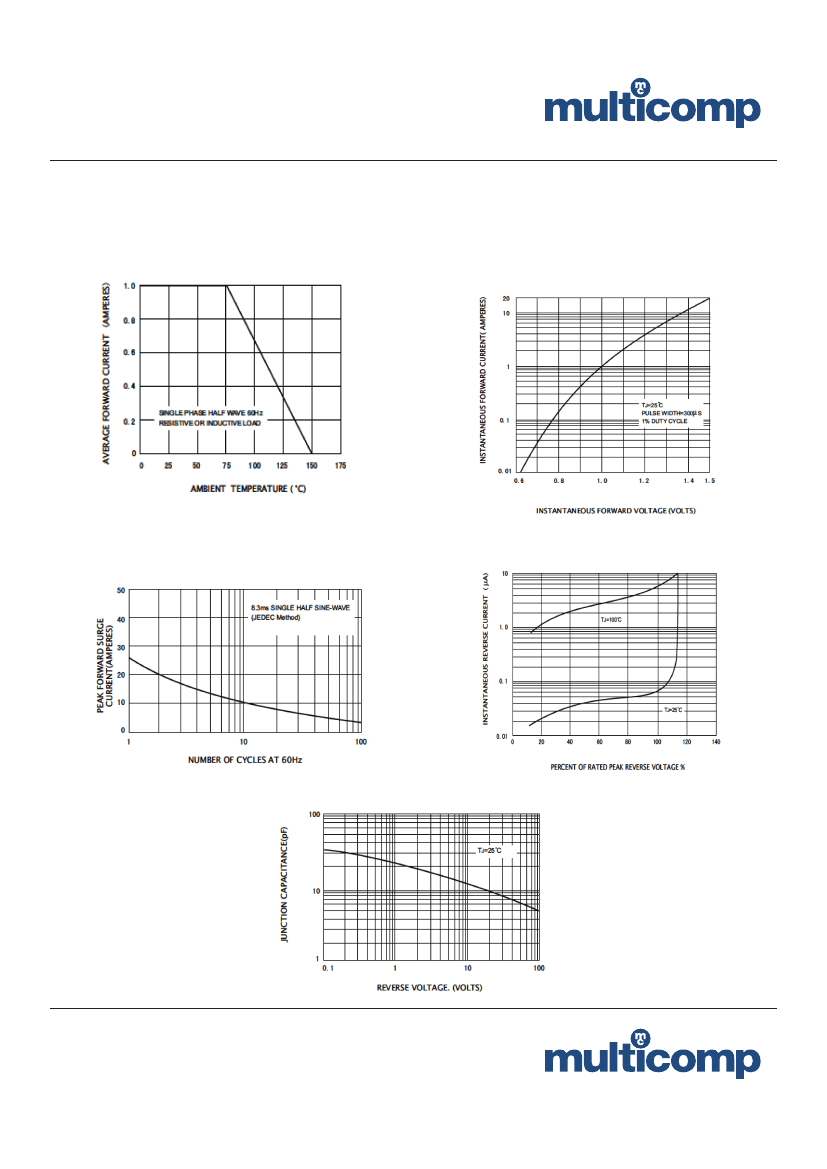

Ratings and Characteristic Curves
FIG.1 – Forward Current Derating
FIG.2 – Typical Instantaneous Forward
characteristics
FIG.3 – Maximum Non-Repetitive Peak
forward Surge Current
FIG.4 – Typical Reverse Characteristics
FIG.5 – Typical Junction
www.element14.com
www.farnell.com
www.newark.com
Page <2>
30/10/18
V1.1
SMD Rectifier Diodes

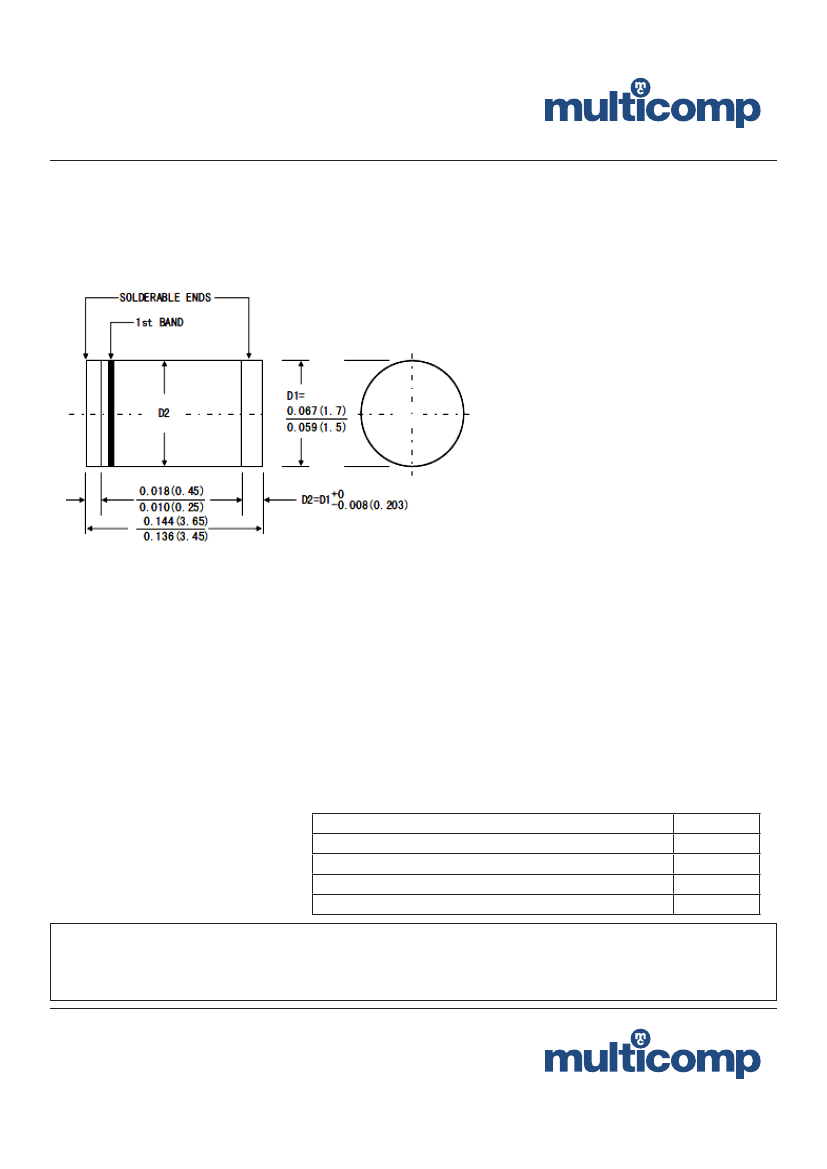

MiniMELF (Do-213AA)
Dimensions : Inches (Millimetres)
Part Number Table
Description
Rectifier Diode, Single, 50V, 1A, 1.1V, MiniMELF (DO-213AA)
Rectifier Diode, Single, 100V, 1A, 1.1V, MiniMELF (DO-213AA)
Rectifier Diode, Single, 400V, 1A, 1.1V, MiniMELF (DO-213AA)
Rectifier Diode, Single, 1kV, 1A, 1.1V, MiniMELF (DO-213AA)
Part Number
LL4001G+
LL4002G+
LL4004G+
LL4007G+
