TITLE
T1/E1 QUAD TRANSFORMER
AGENCY APPROVAL: NA
CATALOG SHEET
PN
SPECIFICATIONS
EXTENDED TEMP RANGE (-40C TO +85C)
1. INDUCTANCE:
(PRI'S)
1.2mH MIN. @ 0.01v ,100kHz, (25C)
600µh MIN.@0.01V,100kHz,(-40C TO +85C)
2. LEAKAGE INDUCTANCE:
(PRI W/ SEC SHORTED)
.5µH MAX @ 1MHz
3. TURNS RATIO:
(PRI TO SEC)= 1 : 1.36CT ± 2%
4. INTERWINDING CAPACITANCE:(PRI
TO SEC)
30 pf MAX @1MHz
5. DC RESISTANCE:
PRI =0.6 OHMS MAX
SEC=0.8 OHMS MAX
6. DIELECTRIC STRENGTH:
(PRI TO SEC)
1500 VAC FOR 60 SECONDS
7. RETURN LOSS:
(WINDING WITH TURNS RATIO 1.36 IS 100 OHM REF.)
51KHz TO 102KHz
12dB MIN
102KHz TO 2.048MHz
18dB MIN
2.048MHz TO 3.072 MHz
14dB MIN
8. CROSS TALK:
65dB OR BETTER
9.COMMON MODE REJECTION RATIO:
50 dB OR BETTER @1MHZ

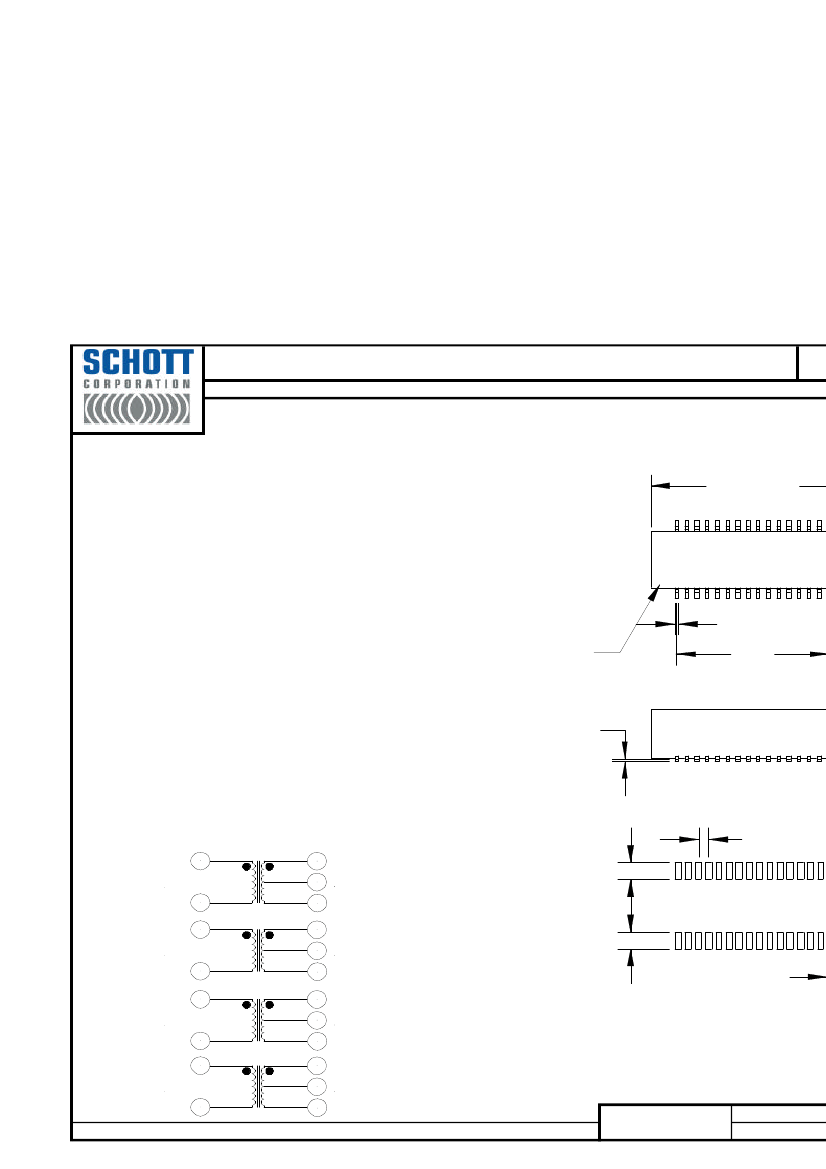

DIMENSIONAL
OUTLINE
1.000 MAX
.
PIN 1
INDICATOR
.010±.002
SCHOTT
37532
C O UNTRY OF ORIGIN
& DATE CODE
.018±.002
.750
REF. PWB LAYOUT
1
SCHEMATIC
1 : 1.36CT
.050
32
31
PRI
3
5
SEC
.090
30
1 : 1.36CT
28
27
PRI
7
10
SEC
.090
26
1 : 1.36CT
23
22
PRI
12
14
SEC
COPLANARITY OF PINS IS LESS THEN OR E
21
1 : 1.36CT
19
18
PRI
16
SEC
TOLERANCES UNLESS
OTHERWISE SPECIFIED
INCHES / DECIMAL
MILLIMETERS (mm)
17
1000 Parkers Lake Road, Wayzata, MN 55391, (952) 475-1173, www.schottcorp.com
