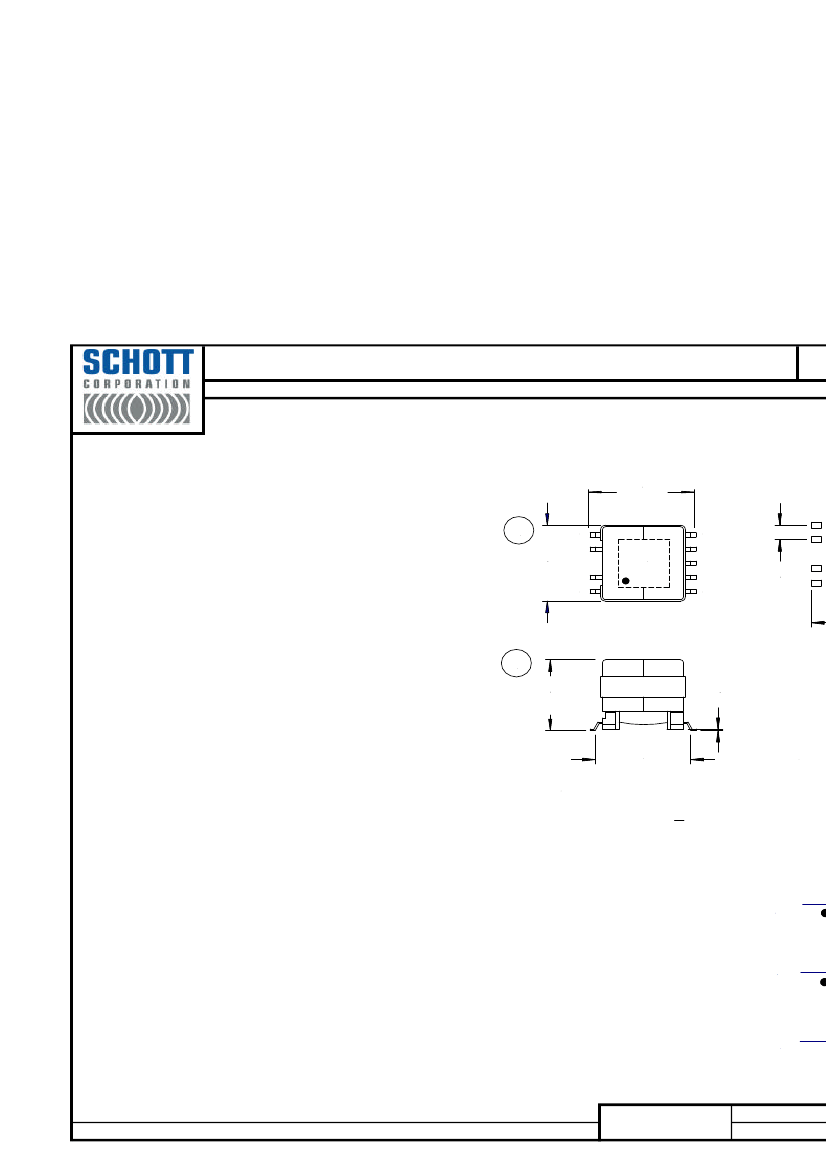

TITLE

INDUCTOR - POTS SPLITTER

AGENCY APPROVAL: NA

SPECIFICATIONS:

TEMP CLASS 130°C

1. INDUCTANCE: @ 0.1 Vrms, 10 KHz, 0-100 mAdc

@ 0 mAdc 1-5 = 4.75 to 5.25 mH (5.0 +/- 5%)

@ 100 mAdc, 1-10 tie (5&6) = 18mH MIN

@ 0 mAdc1-5 = 6-10 within 2%

2. IWC: @ 100 KHz, 0.1 Vrms

1-6 = 450 pF MAX

.670 ±.010

(17.02)

.560 MAX

(14.22)

SCHOTT

38164

YYWW

.098

(2.5)

3. TURNS RATIO: 1-5 : 6-10 = 1 : 1 ± 2%

4. DC RESISTANCE: OHMS

1-5 = 6-10 = 6.0 MAX

5. DIELECTRIC STRENGTH: 850 Vdc, 1 minute

(1000 Vdc, 1 second Schott Production Test)

1-6 AND ALL WINDINGS TO CORE

6. LEAKAGE INDUCTANCE: @ 100kHz,0.1VRMS

1-5 (TIE 6-10) 20µH MAX

.606 ± .006

(15.39)

.500 MAX

(12.70)

.008

(0.2)

.098 ±.010

(2.5)

NOTE:

COPLANARITY < .004 (0.10)

1000 Parkers Lake Road, Wayzata, MN 55391, (952) 475-1173, www.schottcorp.com

TOLERANCES UNLESS

OTHERWISE SPECIFIED

INCHES / DECIMAL

MILLIMETERS (mm)
