TRANSFORMER, ADSL

Preview

Download Datasheet

View All

TITLE

TRANSFORMER, ADSL

AGENCY APPROVAL: PENDING

SPECIFICATIONS

Designed to meet UL1950/EN60950 with supplementary

insulation for a working voltage of 250V.

TEMP CLASS: 155° C, FLAMABILITY: UL94V-0

OPERATING TEMPERATURE RANGE -40°C TO +85°C

1. INDUCTANCE: @ 0.1 Vrms, 10 kHz

1-3-2-4 = 447 TO 502 µH (474 µH NOM)

2. LEAKAGE INDUCTANCE: @ 0.1 Vrms, 100 kHz

1-4 TIE 2&3, (SHORT 8&5,7&6) = 5 µH MAX

3. IWC: @ 100 kHz, 0.1 Vrms

1-4 TO 8-6(tie 3&2, 5&7) = 50 pF MAX

4. TURNS RATIO: 1-3 : 2-4 : 8-5 : 7-6 = 2 : 2 : 1 : 1 ± 1%

5. DC RESISTANCE: OHMS MAX

1-3 =1.2

8-5 = 1.0

2-4 = 1.2

7-6 = 1.0

6. HIPOT: 1500 Vrms, 1 MINUTE

(1800 Vrms OR 2500 VDC FOR 1 SECOND)

1&2 TO 8&7

1, 2, 8 & 7 TO CORE

7. LONGITUDINAL BALANCE: V1 = 0 dBM @ 20 kHz & 1.0 MHz

V2 = @20kHz = 65 dB MIN

@ 1.0MHz = 45dB Min

8. HARMONIC DISTORTION: V1= 4.24Vrms,150kHz

@150kHz, V2 = -85dB

9.INSERTION LOSS: 150kHz,300kHz,2.2MHz

V2 = @150 kHz = 0.5dB Max

V2 = @ 2.2MHz = 1.0dB Max

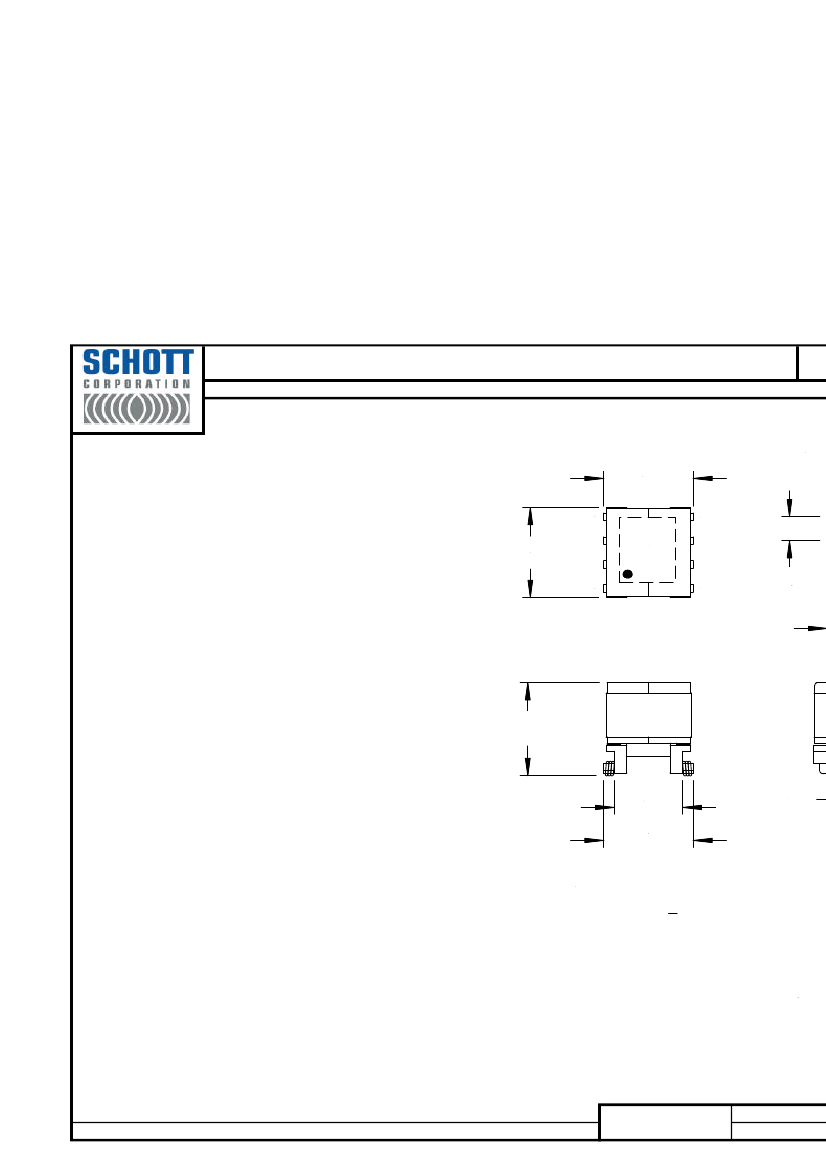

REF

.350 MAX

(8,89)

SCHOTT

39288

YYWW-X

.385 MAX

(9,78)

.098

(2,50)

.390 MAX

(9.91)

.250

(6,35)

.335

(8,51)

.098

(2,50)

NOTE:

COPLANARITY < .004 (0.10)

LINE

1000 Parkers Lake Road, Wayzata, MN 55391, (952) 475-1173, www.schottcorp.com

TOLERANCES UNLESS

OTHERWISE SPECIFIED

INCHES / DECIMAL

MILLIMETERS (mm)
