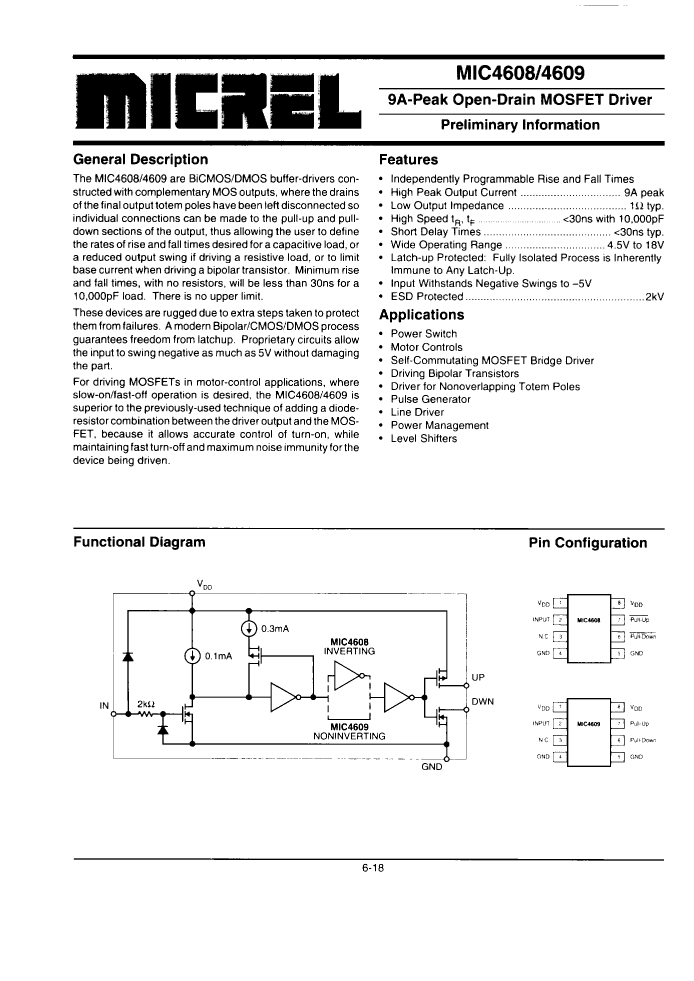

MIC4608BMT&R datasheet, PDF - EEWORLD Datasheet

MIC4608BMT&R: DescriptionBuffer/Inverter Based MOSFET Driver, 9A, BCDMOS, PDSO8, 0.150 INCH, SOIC-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size116KB，4 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

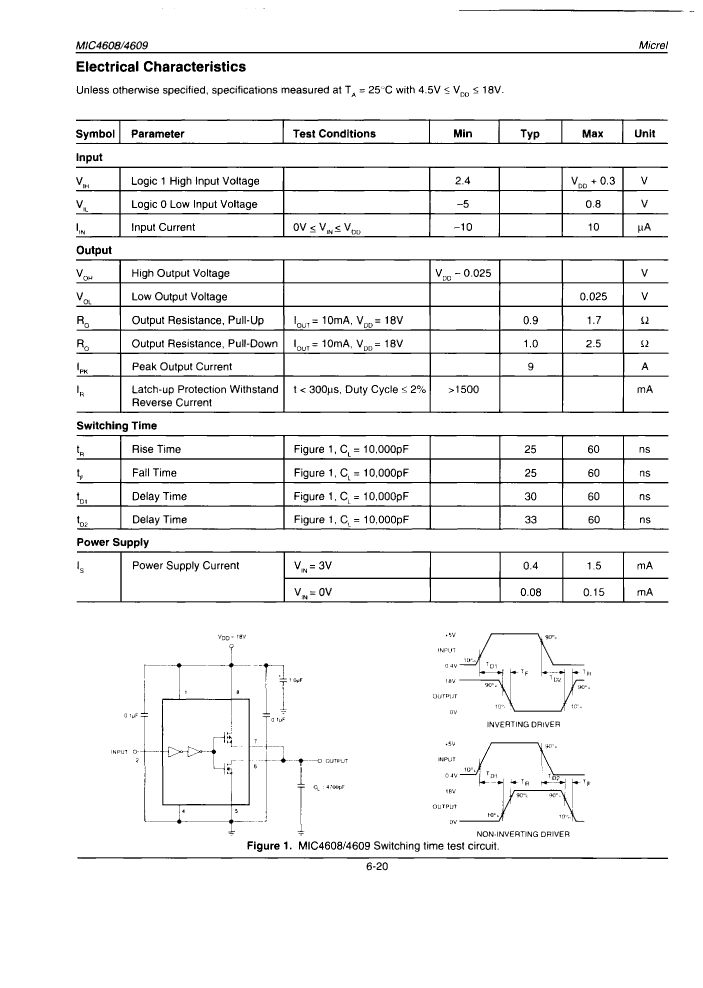

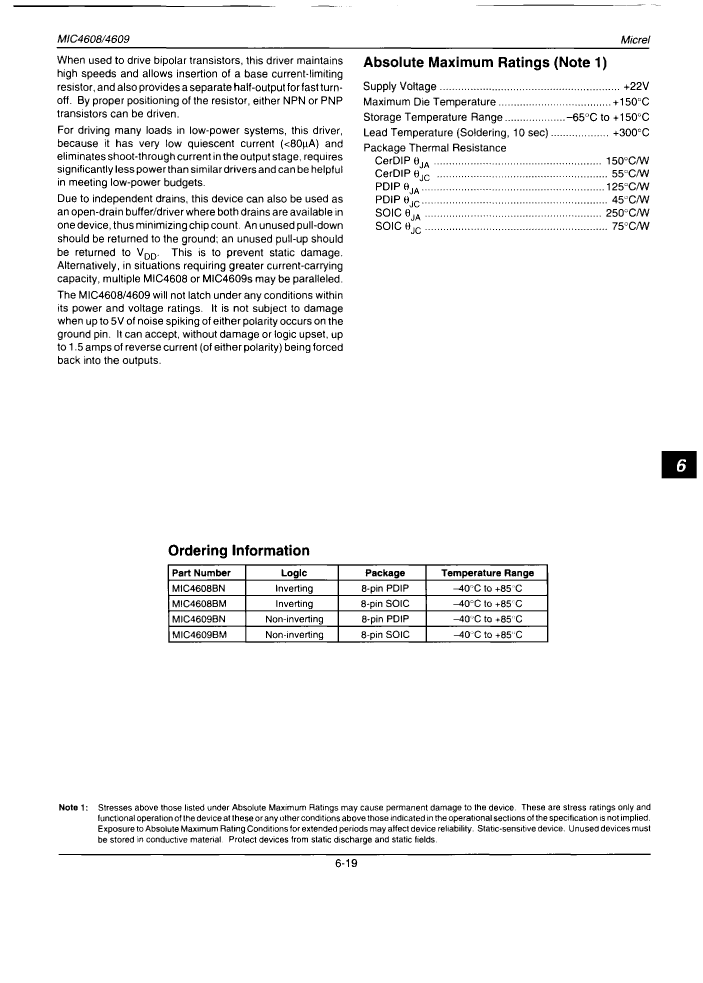

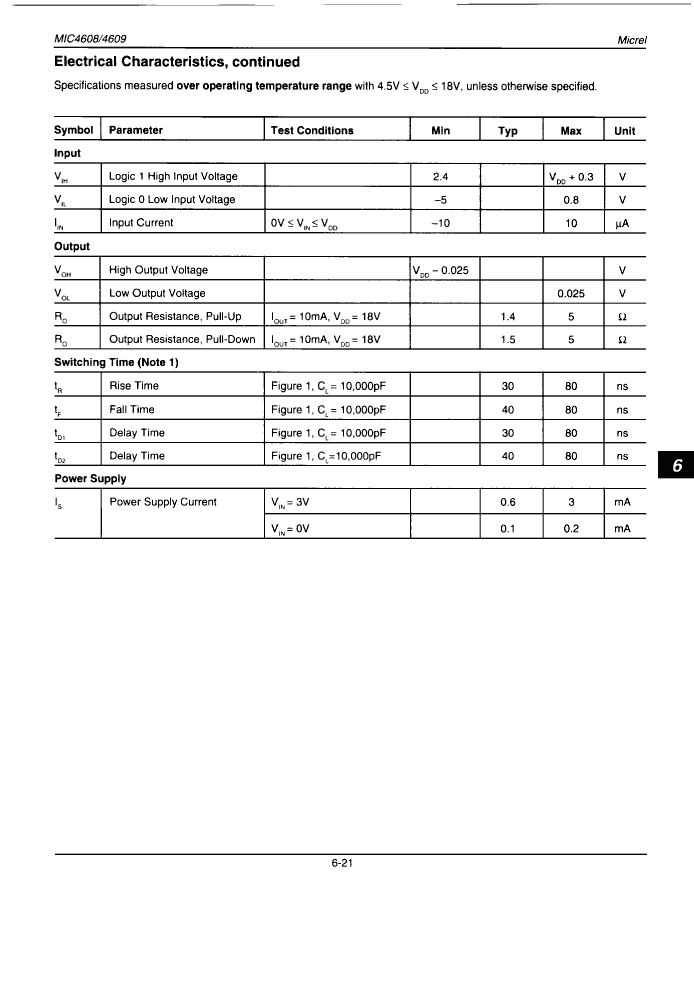

MIC4608BMT&R Overview

Buffer/Inverter Based MOSFET Driver, 9A, BCDMOS, PDSO8, 0.150 INCH, SOIC-8

Parameter Name	Attribute value
Maker	Micrel ( Microchip )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
high side driver	NO
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Nominal output peak current	9 A
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.879 mm
Maximum slew rate	3 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	BCDMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Disconnect time	0.08 µs
connection time	0.08 µs
width	3.9 mm

	MIC4608BMT&R	MIC4609BMT&R
Description	Buffer/Inverter Based MOSFET Driver, 9A, BCDMOS, PDSO8, 0.150 INCH, SOIC-8	Buffer/Inverter Based MOSFET Driver, 9A, BCDMOS, PDSO8, 0.150 INCH, SOIC-8
Maker	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
high side driver	NO	NO
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Nominal output peak current	9 A	9 A
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.879 mm	1.879 mm
Maximum slew rate	3 mA	3 mA
Maximum supply voltage	18 V	18 V
Minimum supply voltage	4.5 V	4.5 V
surface mount	YES	YES
technology	BCDMOS	BCDMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Disconnect time	0.08 µs	0.08 µs
connection time	0.08 µs	0.08 µs
width	3.9 mm	3.9 mm
