TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01844
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
Website: http://www.microsemi.com
–
Exhibits Leakage Currents approaching
the theoretical bulk characteristics of silicon
–
Oxide and Nitride passivation for long-term
stable device performance
–
Available for upscreen to MIL-PRF-19500
requirements
DEVICES
–
Voidless hermetically sealed glass package
–
Metallurgically Bonded double plug
construction
–
PICO Amp Low Leakage Diodes
LEVELS
DR5100
DR5101
DR5102
DR5103
DR5139
DR5140
LR5100
LR5101
LR5102
LR5103
LR5139
LR5140
COMMERCIAL
MAXIMUM RATING AT 25°C
Operating Temperature:
Storage Temperature:
-65°C to +175°C
-65°C to +175°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C, unless otherwise specified)
TYPE
NUMBER
MINIMUM
BEAKDOWN
VOLTAGE
V
BR
@ 100μA
T
A
= 25°C
VOLTS
DR5100
DR5101
DR5102
DR5103
DR5139
DR5140
LR5100
LR5101
LR5102
LR5103
LR5139
LR5140
75
75
75
75
75
110
75
75
75
75
75
110
MAXIMUM
REVERSE
VOLTS
V
R
VOLTS
20
20
20
20
50
100
20
20
20
20
50
100
MAXIMUM REVERSE
LEAKAGE CURRENT
I
R
@ V
R
T
A
= 25°C
pA
10
20
10
20
50
125
10
20
10
20
50
125
I
R
@ V
R
T
A
= 150°C
nA
50
100
50
100
150
200
50
100
50
100
150
200
MAXIMUM
FORWARD
VOLTAGE
V
F
@ 100mA
T
A
= 25°C
V
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
MAXIMUM
CAPACITANCE
C @ V
R
f = 1.0MHz
0V
10V
pF
6
6
6
6
6
6
6
6
6
6
6
6
pF
3
3
3
3
3
3
3
3
3
3
3
3
DO-35
DO-35
DO-35
DO-35
DO-35
DO-35
DO-213AA
DO-213AA
DO-213AA
DO-213AA
DO-213AA
DO-213AA
PACKAGE
DO-35
DO-213AA
LDS-0141 Rev. 3 (100570)
Page 1 of 2
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01844
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
Website: http://www.microsemi.com

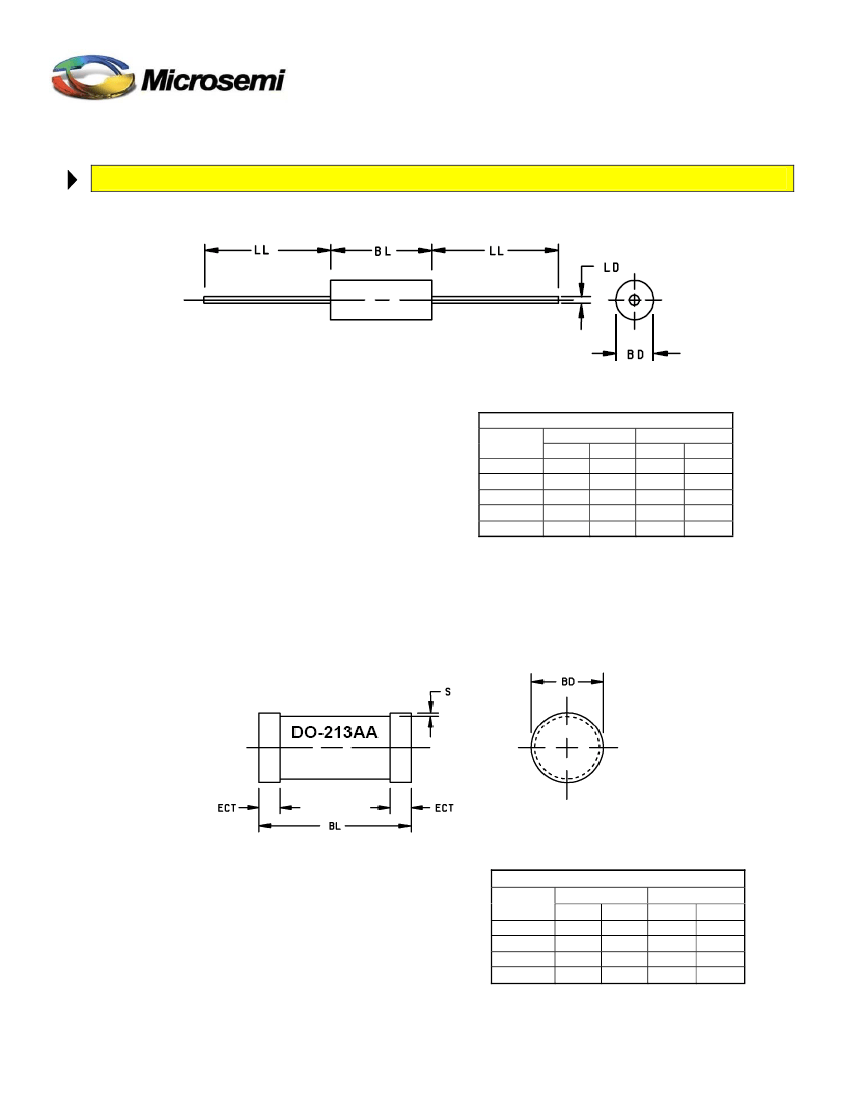

PACKAGE DIMENSIONS
NOTES:
1.
2.
Dimensions are in inches. Millimeters are given for general information
only.
In accordance with ASME Y14.5M, diameters are equivalent to
Φx
symbology.
Symbol
BD
BL
LD
LL
BD
Dimensions (DO-35)
Inches
Millimeters
Min
Max
Min
Max
.056
.075
1.42
1.91
.140
.180
3.56
4.57
.018
.022
0.46
0.56
1.000 1.500
25.40
38.10
.050
.075
1.27
1.90
MECHANICAL CHARACTERISTICS:
Case: Hermetically sealed glass case.
Lead material: Silver / Dumet, Braze Alloy Category II
Marking: Body painted, alpha numeric.
Polarity: Cathode band.
NOTES:
1.
2.
3.
4.
Dimensions are in inches. Millimeters are given for general information
only.
Dimensions are pre-solder dip.
Referencing to dimension S, minimum clearance of glass body to mounting
surface on all orientations.
In accordance with ASME Y14.5M, diameters are equivalent to
Φx
symbology.
Dimensions (DO-213)
Inches
Millimeters
Symbol
Min
Max
Min
Max
BD
BL
ECT
S
.063
.130
.016
.001
.067
.146
.022
1.60
3.30
0.41
0.03
1.70
3.71
0.56
LDS-0141 Rev. 3 (100570)
Page 2 of 2
