3050 ± 80mm
4
REV.
B
REVISION
DESCRIPTION
Updated Notes and Graphics
DATE
11-18-15
APPROVED
LY
4
2
1
CN1
3.8 ± 0.5

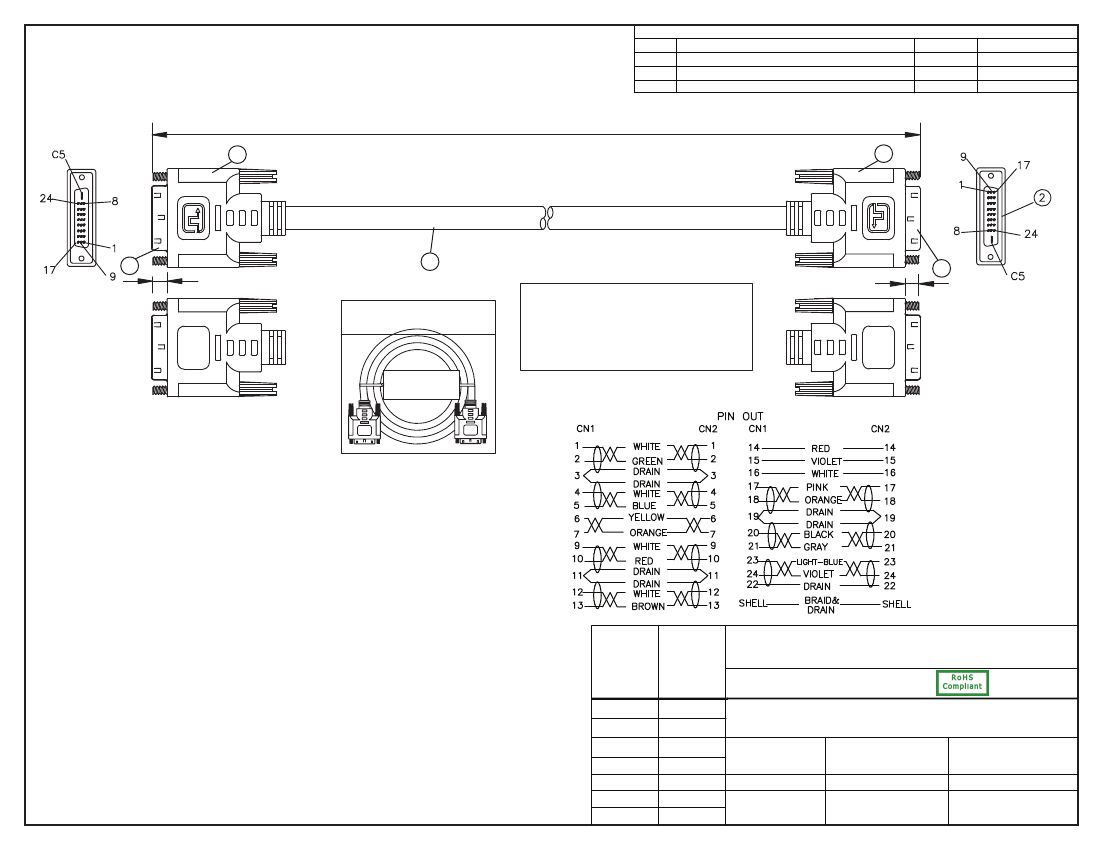

P /N: 1321027- 10
DVI(24+1) P /M- DVI(24+1) P /M
Length: 10F T
C olor: B lac k
P /N: 1321027- 10
D VI( 24+1) P /M- DVI( 24+1) P /M
Length: 10F T
C olor: B lac k
3
3.8 ± 0.5
CN2
NOTES:
1. CABLE: UL20276
(28AWG*1PR+EAM)*7+28AWG*1PR+28AWG*3C+AEB(AL) 65%
OUTER JACKET: BLACK, OD: 8.5 ± 0.2mm
2. CONNECTOR: DVI 24+1 MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
THUMB SCREW: 2.8*32.5mm 4-40UNC
3. CONNECTOR: DVI 24+1 MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
THUMB SCREW: 2.8*32.5mm 4-40UNC
4. PVC MOLDED: COLOR V398 30P BLACK
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: AC300V DC400V 10M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 3 ohm MAX.
6. PACKING: 1PC/POLYBAG
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
1321027-10
DVI (24+1)P/M - DVI (24+1)P/M
UNIT: mm
REV. B
Approved / Date
JJH / 01-25-07
Drawn / Date
B. Grubb
01-25-07
Checked / Date
01-25-07
