EC3725ETTTS-01.544MTR

Description
CRYSTAL OSCILLATOR, CLOCK, 1.544MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
CategoryPassive components    oscillator
File Size122KB,2 Pages
ManufacturerECLIPTEK
Websitehttp://www.ecliptek.com
Environmental Compliance
Download Datasheet Parametric View All

EC3725ETTTS-01.544MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 1.544MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EC3725ETTTS-01.544MTR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerECLIPTEK
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
JESD-609 codee4
Manufacturer's serial numberEC37
Installation featuresSURFACE MOUNT
Nominal operating frequency1.544 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeLVCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.3mm
longest rise time6 ns
Maximum supply voltage2.625 V
Minimum supply voltage2.375 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceNickel/Gold (Ni/Au)
EC37
Series
• RoHS Compliant (Pb-Free)
• LVCMOS output
• 2.5V Supply Voltage
• Ceramic SMD package
• Stability to ±20ppm
• Standby Function
• Available on Tape and Reel
NOTES
EC37
H 1.3
L 5.0
W 3.2
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

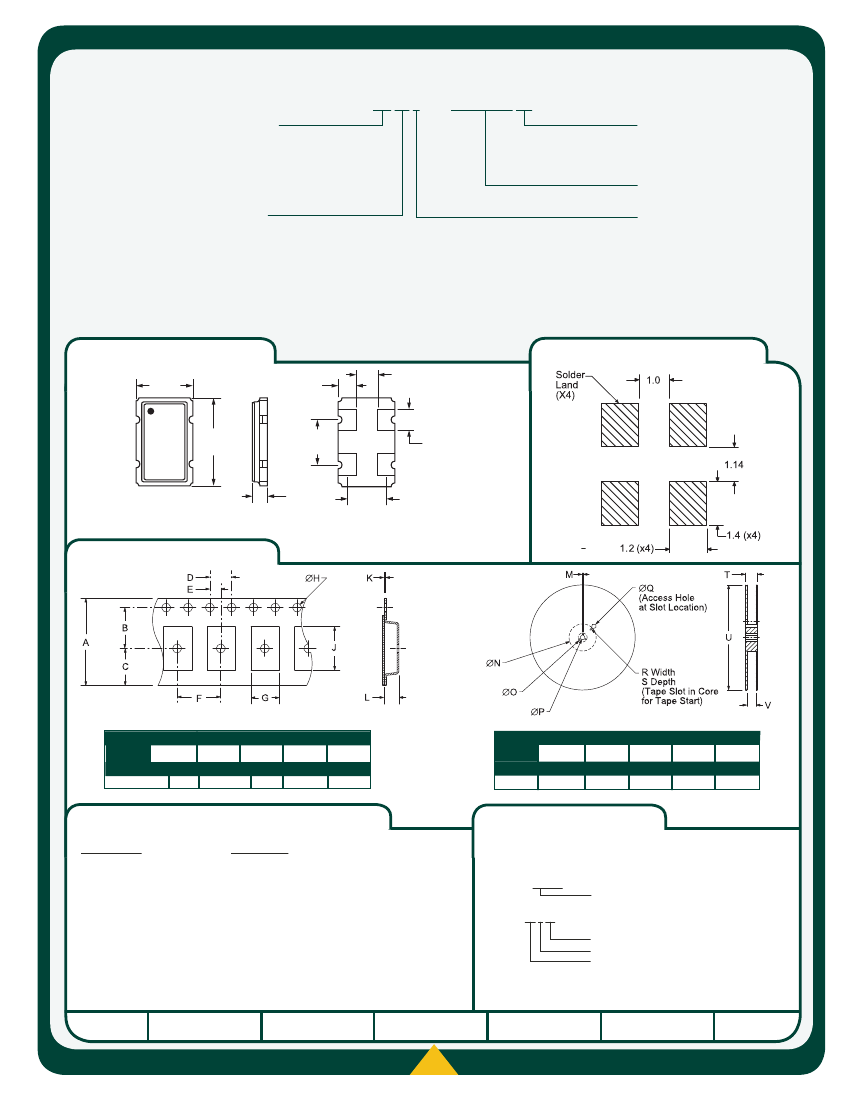

ELECTRICAL SPECIFICATIONS
Frequency Range (F
O
)
Operating Temperature Range (OTR)
Storage Temperature Range (STR)
Supply Voltage (V
DD
)
Input Current (I
DD
)
1.544MHz to 110.000MHz
-10°C to 70°C
-40°C to 85°C
-55°C to 125°C
2.5V
DC
±5%
3mA Maximum
5mA Maximum
8mA Maximum
15mA Maximum
20mA Maximum
25mA Maximum
±100ppm, ±50ppm, 25ppm, or
±20ppm Maximum
Frequency Tolerance/Stability
1.544MHz to 9.999MHz
10.000MHz to 24.999MHz
25.000MHz to 34.999MHz
35.000MHz to 49.999MHz
50.000MHz to 70.000MHz
70.001MHz to 110.000MHz
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time (T
R
/T
F
)
Duty Cycle (SYM)
Load Drive Capability (C
LOAD
)
Tri-State Input Voltage
20% to 80% of Waveform < 40.000MHz
20% to 80% of Waveform > 40.000MHz
at 50% of Waveform
Standby Current
Start Up Time (T
S
)
RMS Phase Jitter
MANUFACTURER
CATEGORY
No Connection
V
IH
: 90% of V
DD
Minimum
V
IL
: 10% of V
DD
Maximum
Disabled Output: High Impedance
12kHz to 20MHz offset frequency
SERIES
PACKAGE
VOLTAGE
90% of V
DD
Minimum (I
OH
= -4mA)
10% of V
DD
Maximum (I
OL
= +4mA)
6 nSeconds Maximum
4 nSeconds Maximum
50 ±10(%) (Standard)
50 ±5(%) (Optional)
15pF Maximum
Enables Output
Enables Output
Disables Output: High Impedance
10µA Maximum
10 mSeconds Maximum
1pSeconds Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC37
CERAMIC
2.5V
OS92
08/08
800-ECLIPTEK www.ecliptek.com for latest revision
154
Specifications subject to change without notice.
