IRKT170-12PBF datasheet, PDF - EEWORLD Datasheet

IRKT170-12PBF: DescriptionSilicon Controlled Rectifier, 377A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 2 Element, LEAD FREE, POWER, MAGN-A-PAK-7; CategoryAnalog mixed-signal IC Trigger device; File Size32KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

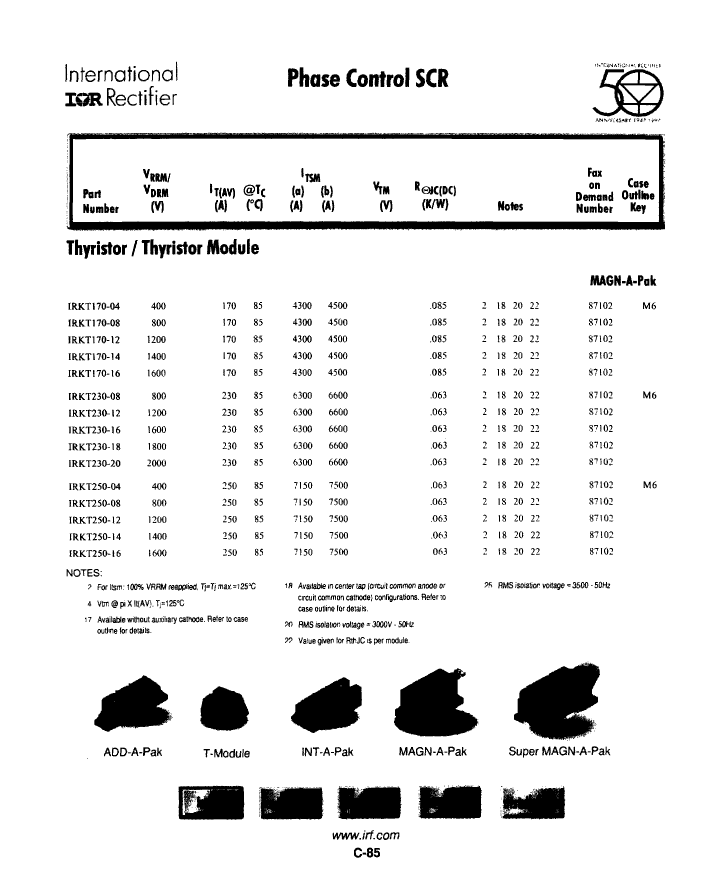

Download Datasheet Parametric View All

IRKT170-12PBF Overview

Silicon Controlled Rectifier, 377A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 2 Element, LEAD FREE, POWER, MAGN-A-PAK-7

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	FLANGE MOUNT, R-PUFM-D3
Contacts	7
Reach Compliance Code	unknown
Other features	UL APPROVED
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, 2 ELEMENTS
Maximum DC gate trigger current	200 mA
JESD-30 code	R-PUFM-D3
Number of components	2
Number of terminals	3
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	377 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
