MOLC-1-14-61-SM-Q

Description
56 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size553KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

MOLC-1-14-61-SM-Q Overview

56 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

MOLC-1-14-61-SM-Q Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact completed and terminatedMATTE TIN
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberMOLC
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded4
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts56
LEAD STYLE PLATING
-01
-P
-S,-SM
-11
-31
-61
-P,-S,-SM
-P,-S,-SM
-P,-S,-SM

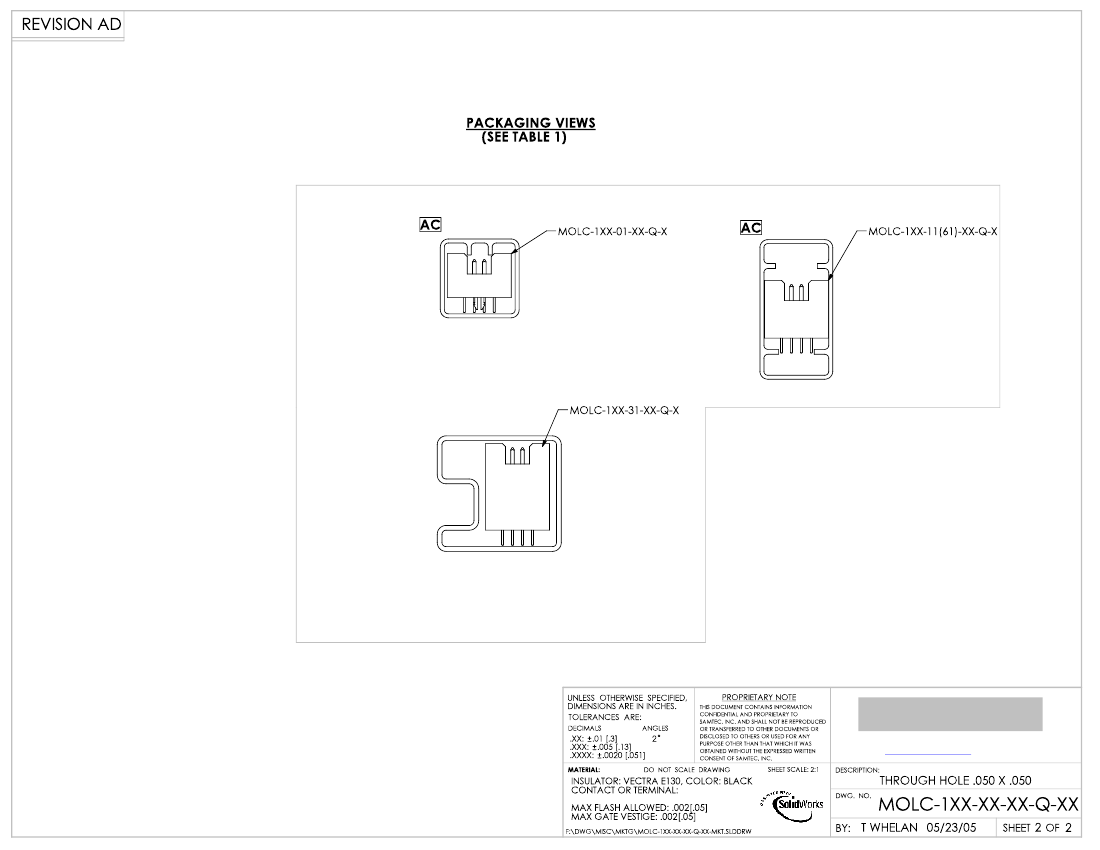

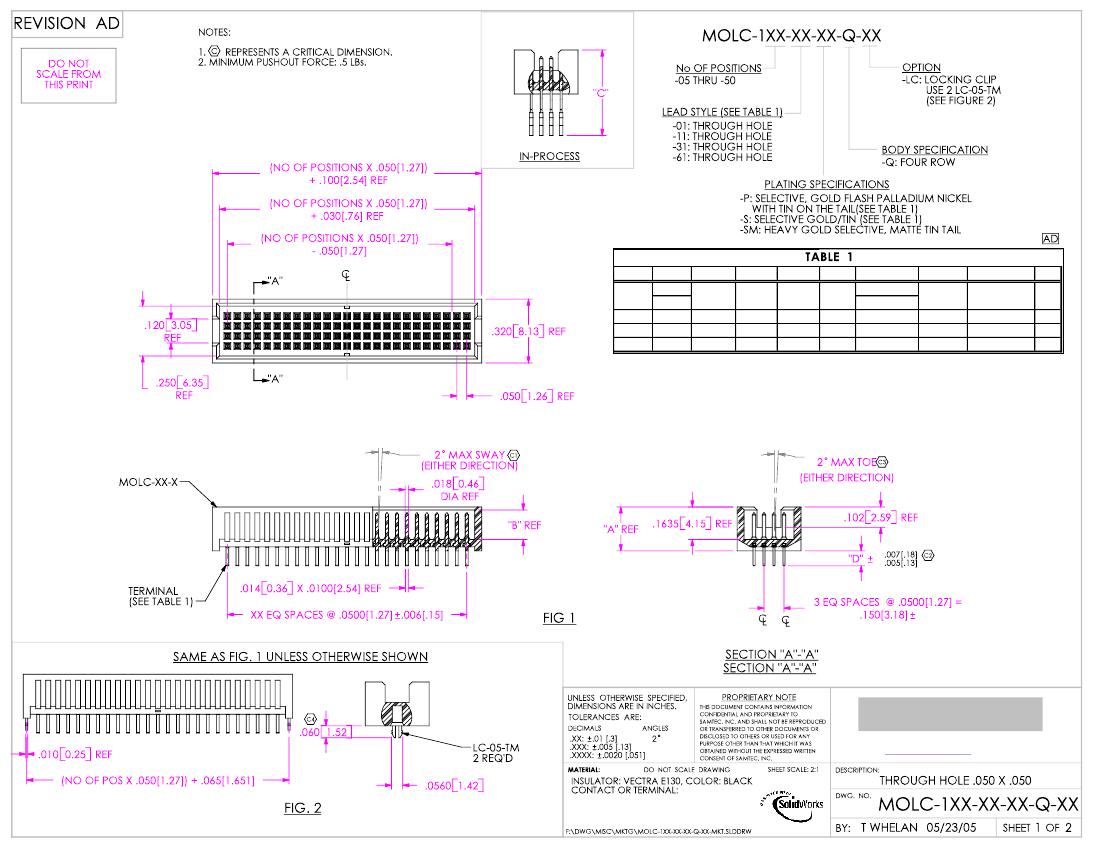

"A"
.2200[5.59]
"B"
.1335[3.39]
"C"
.4285[10.88]
"D"
.075[1.91]
USE TERMINAL
USE BODY PACKAGING TUBE PLUG
PT-1-24-06-15
TP-09
T-1R16-01-P-2.NEW MOLC-XX-Q-01
T-1R16-01-SX-2
.2885[7.33]
.4335[11.01]
.2200[5.58]
.1435[3.65]
.1435[3.65]
.1435[3.65]
.6400[16.26]
.6400[16.26]
.6400[16.26]
.075[1.91]
.075[1.91]
.140[3.56]
T-1R20-03-XXX
T-1R20-02-XXX
T-1R16-04-XXX
MOLC-XX-Q-02
MOLC-XX-Q-04
MOLC-XX-Q-01
PT-1-24-15-29
PT-1-24-01-40
PT-1-24-15-29
TP-07
TP-13
TP-07
S A M TE C
*
5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0
P H O N E : 8 1 2 .9 4 4 .6 7 3 3
F A X : 8 1 2 .9 4 8 .5 0 4 7
e -M ail:
IN F O @ S A M T E C .C O M
C O D E: 55322
