MTP3055ELN datasheet, PDF - EEWORLD Datasheet

MTP3055ELN: Description12A, 60V, 0.18ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size24KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

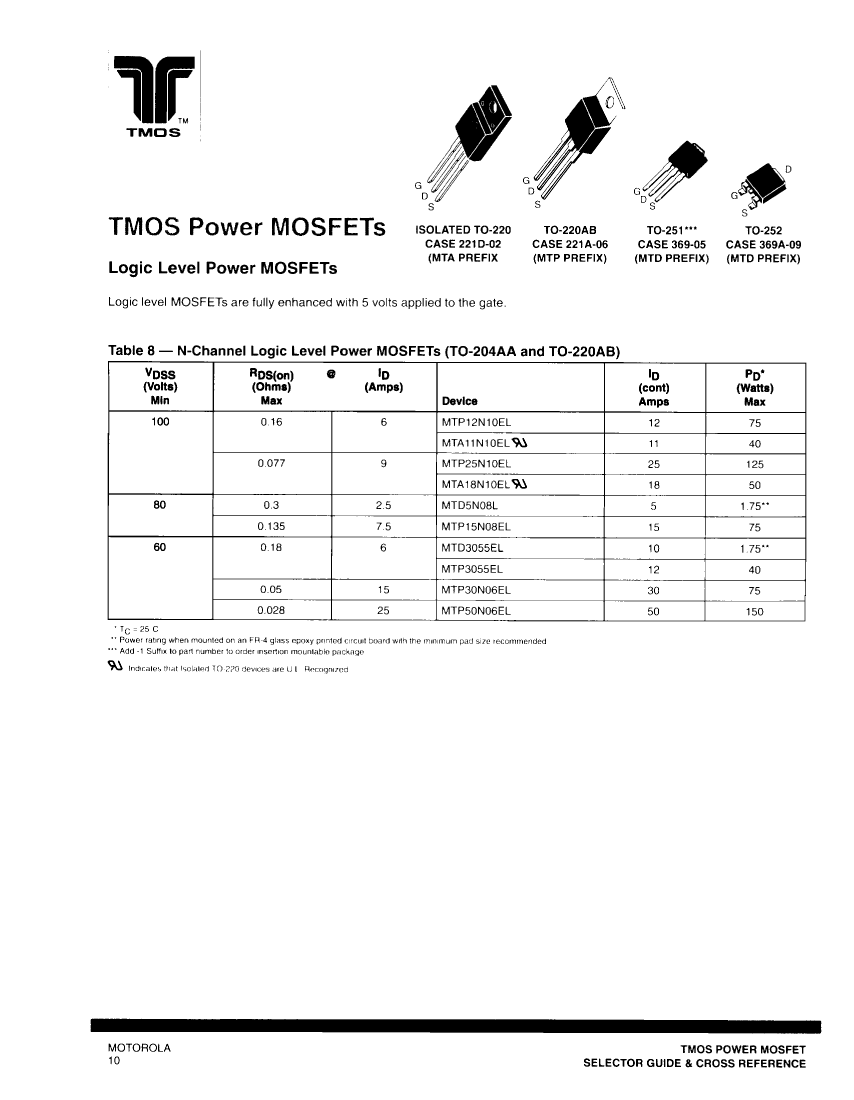

Download Datasheet Parametric View All

MTP3055ELN Overview

12A, 60V, 0.18ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	12 A
Maximum drain-source on-resistance	0.18 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	40 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
