MCM69F536ZP8 datasheet, PDF - EEWORLD Datasheet

MCM69F536ZP8: DescriptionIC,SYNC SRAM,32KX36,BICMOS-TTL,BGA,119PIN,PLASTIC; Categorystorage storage; File Size743KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

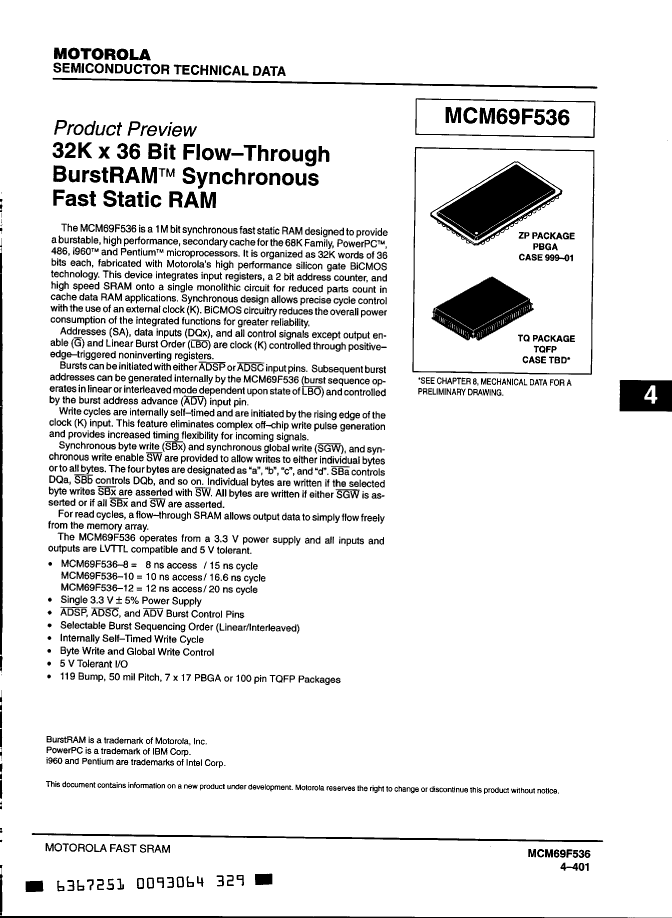

MCM69F536ZP8 Overview

IC,SYNC SRAM,32KX36,BICMOS-TTL,BGA,119PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	BGA, BGA119,7X17,50
Reach Compliance Code	unknown
Maximum access time	8 ns
I/O type	COMMON
JESD-30 code	R-PBGA-B119
JESD-609 code	e0
memory density	1179648 bit
Memory IC Type	STANDARD SRAM
memory width	36
Number of terminals	119
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
organize	32KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA119,7X17,50
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	3.14 V
Maximum slew rate	0.275 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM

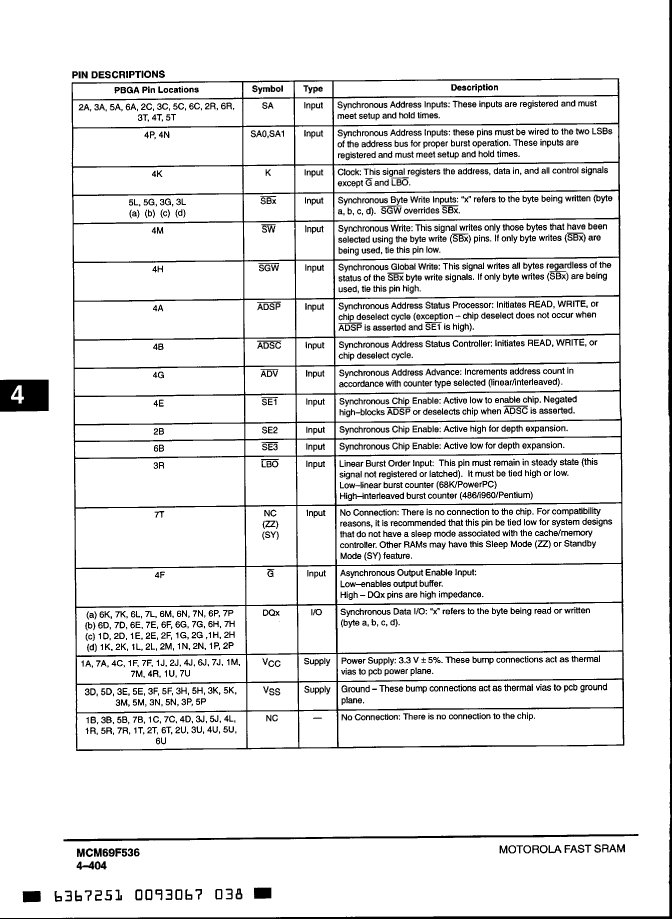

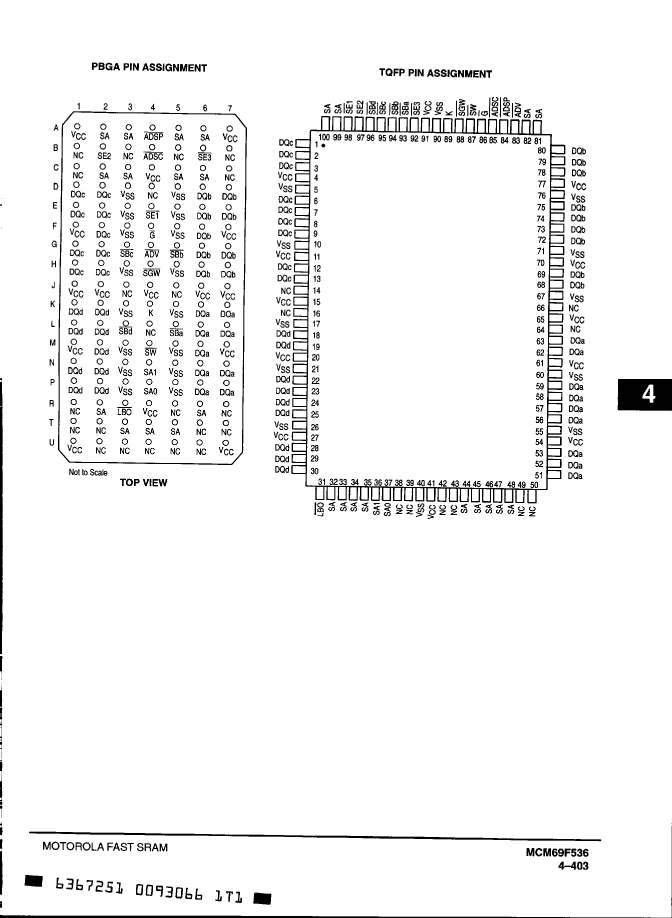

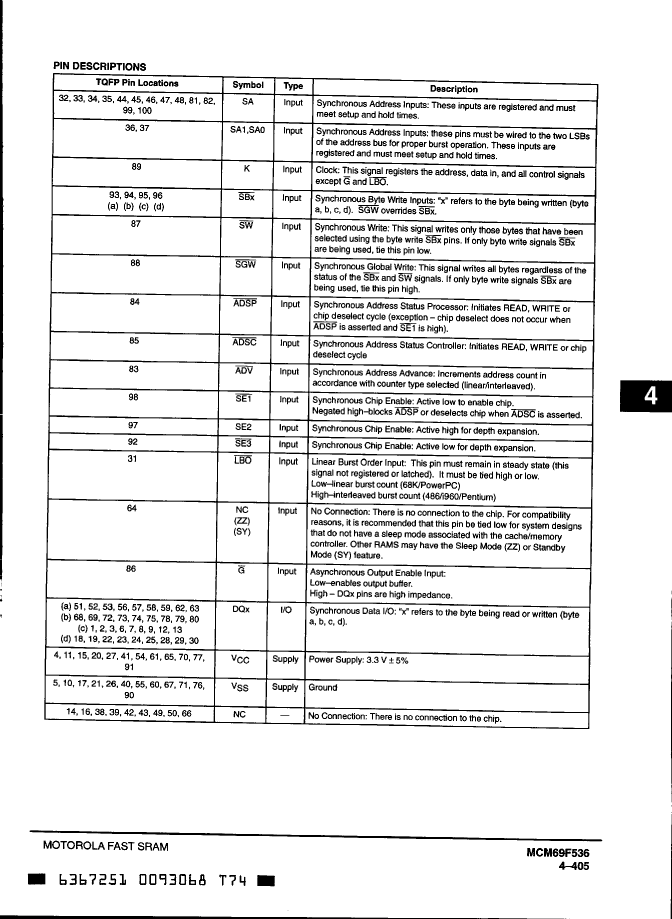

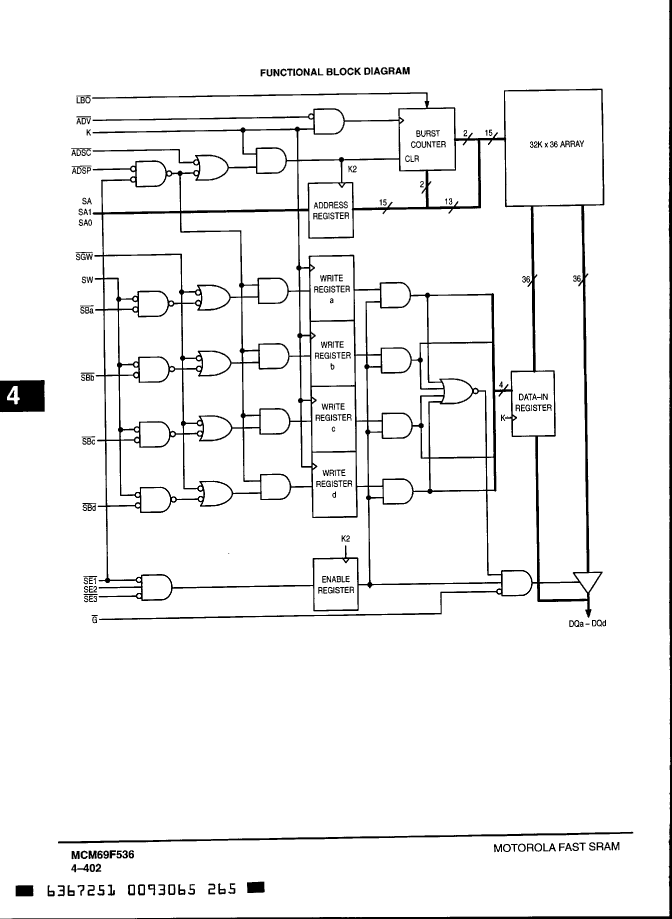

	MCM69F536ZP8
Description	IC,SYNC SRAM,32KX36,BICMOS-TTL,BGA,119PIN,PLASTIC
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	BGA, BGA119,7X17,50
Reach Compliance Code	unknown
Maximum access time	8 ns
I/O type	COMMON
JESD-30 code	R-PBGA-B119
JESD-609 code	e0
memory density	1179648 bit
Memory IC Type	STANDARD SRAM
memory width	36
Number of terminals	119
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
organize	32KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA119,7X17,50
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	3.14 V
Maximum slew rate	0.275 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
