PS2913-1-F3-A-N datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2913-1-F3-A-N

PS2913-1-F3-A-N: Description1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size227KB，14 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

PS2913-1-F3-A-N Overview

1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4

PS2913-1-F3-A-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	120 V
Configuration	SINGLE
Nominal current transfer ratio	50%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	2500 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

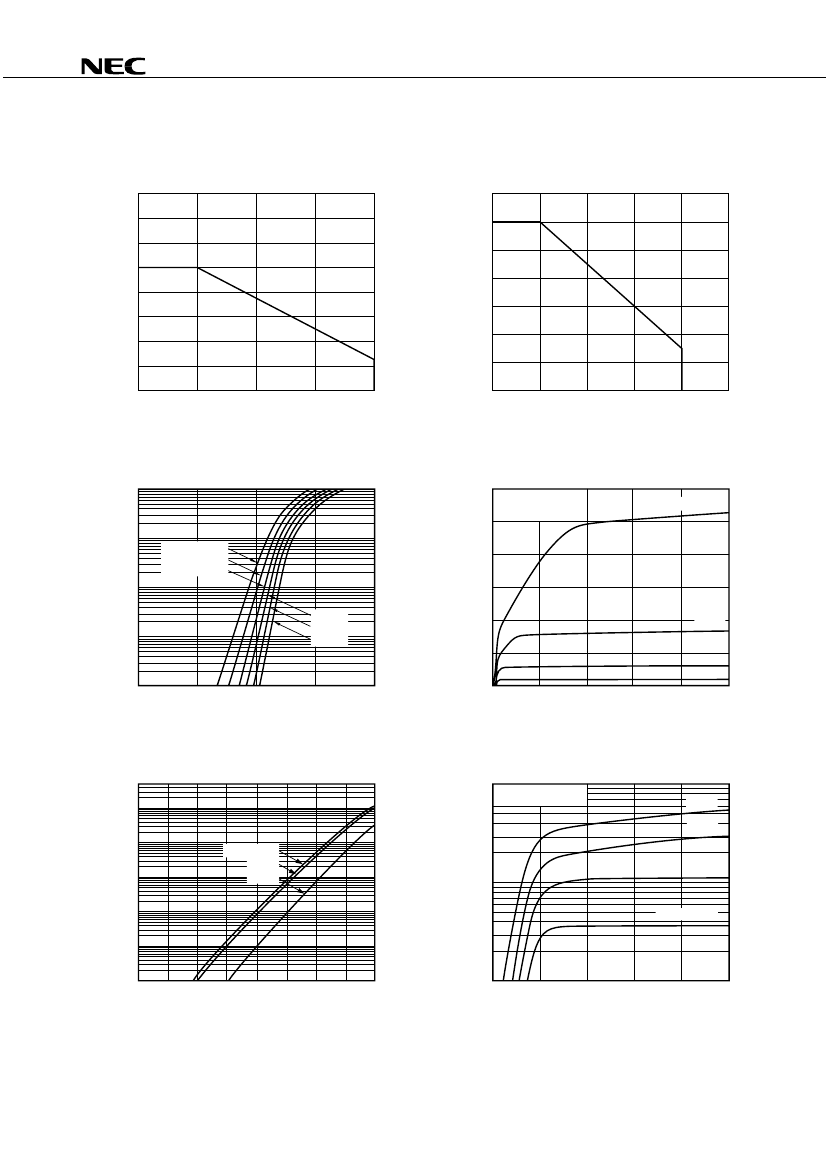

Preview

Download Datasheet

View All

DATA SHEET

PHOTOCOUPLER

PS2913-1

SINGLE Tr. OUTPUT, HIGH COLLECTOR TO EMITTER VOLTAGE

4-PIN ULTRA SMALL FLAT-LEAD

−NEPOC

Series−

PHOTOCOUPLER

DESCRIPTION

The PS2913-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon

phototransistor in one package for high density mounting applications.

An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30%

compared with the PS28xx series.

FEATURES

• Ultra small flat-lead package (4.6 (L)

2.5 (W)

2.1 (H) mm)

• Isolation distance (0.4 mm MIN.)

• High collector to emitter voltage (V

CEO

= 120 V)

• High isolation voltage (BV = 2 500 Vr.m.s.)

• Ordering number of taping product: PS2913-1-F3, F4: 3 500 pcs/reel

<R>

• Safety standards

• UL approved: File No. E72422

• BSI approved: No. 8657, 8658

• DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

APPLICATIONS

• Hybrid IC

• Power supply

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics

sales representative for availability and additional information.

Document No. PN10043EJ03V0DS (3rd edition)

Date Published May 2006 NS CP(K)

Printed in Japan

The mark <R> shows major revised points.

2000, 2006

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

PS2913-1-F3-A-N Related Products

	PS2913-1-F3-A-N	PS2913-1-A-L	PS2913-1-A-N	PS2913-1-A-K	PS2913-1-V-F4-A-N	PS2913-1-F4-A	PS2913-1-F4-A-N	PS2913-1-F4-A-L	PS2913-1-V-F3-A-M	PS2913-1-V-F3-A-L
Description	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	incompatible
package instruction	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	120 V	120 V	120 V	120 V	120 V	120 V	120 V	120 V	120 V	120 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	50%	75%	50%	100%	50%	100%	50%	75%	50%	75%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V
JESD-609 code	e0	e0	e0	e0	e0	e6	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Bismuth (Sn/Bi)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Renesas Electronics Corporation	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
