CT1487MFP Overview

Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,

CT1487MFP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	DFP, FL24,.74,100
Reach Compliance Code	unknown
Differential output	YES
Number of drives	1
High level input current maximum value	0.00008 A
JESD-30 code	R-XDFP-F24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	26 V
Maximum output low current	0.004 A
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL24,.74,100
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5,+-15 V
Certification status	Not Qualified
Maximum receive delay	450 ns
surface mount	YES
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	2.54 mm
Terminal location	DUAL

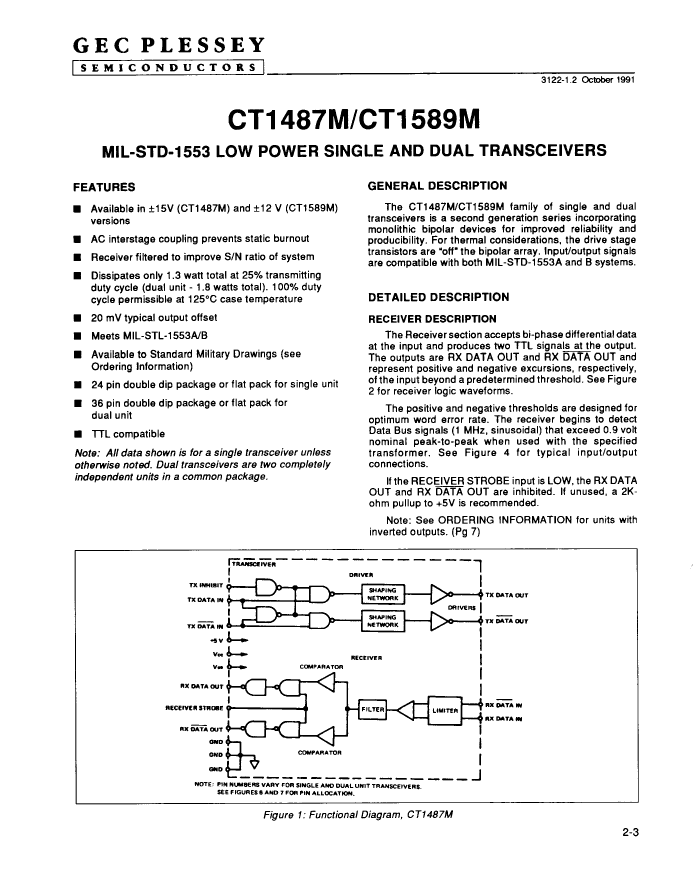

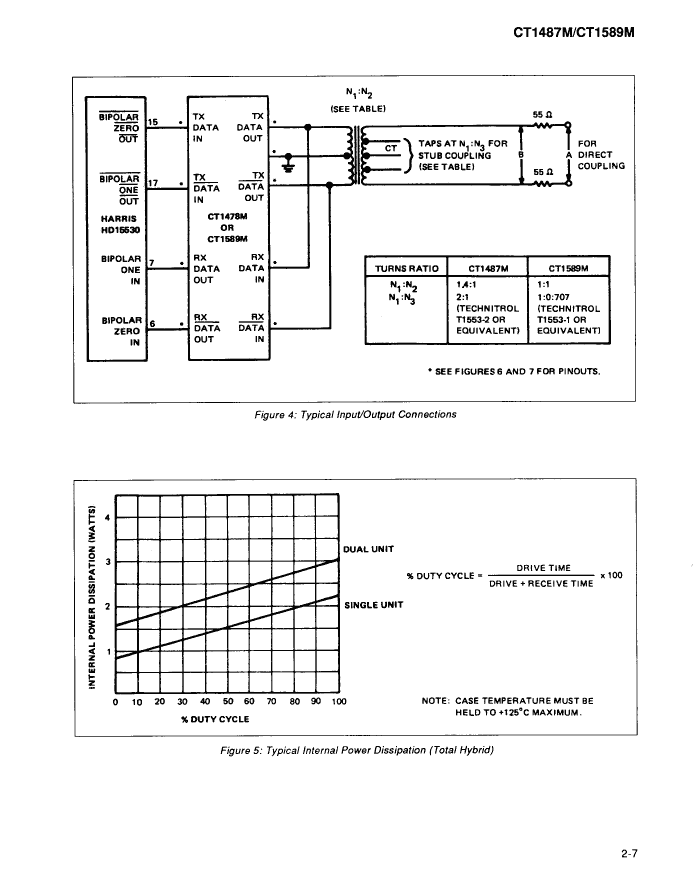

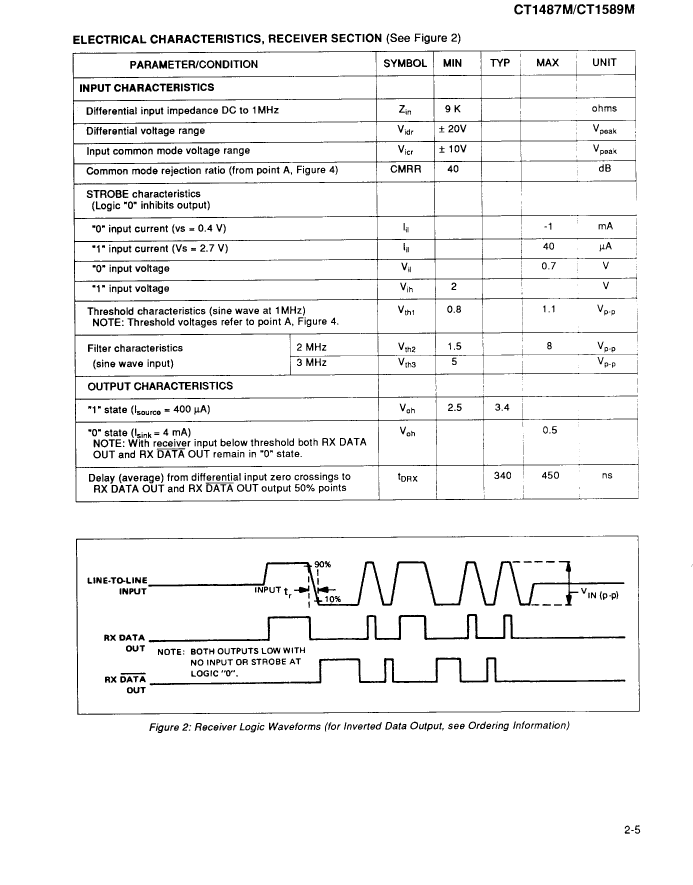

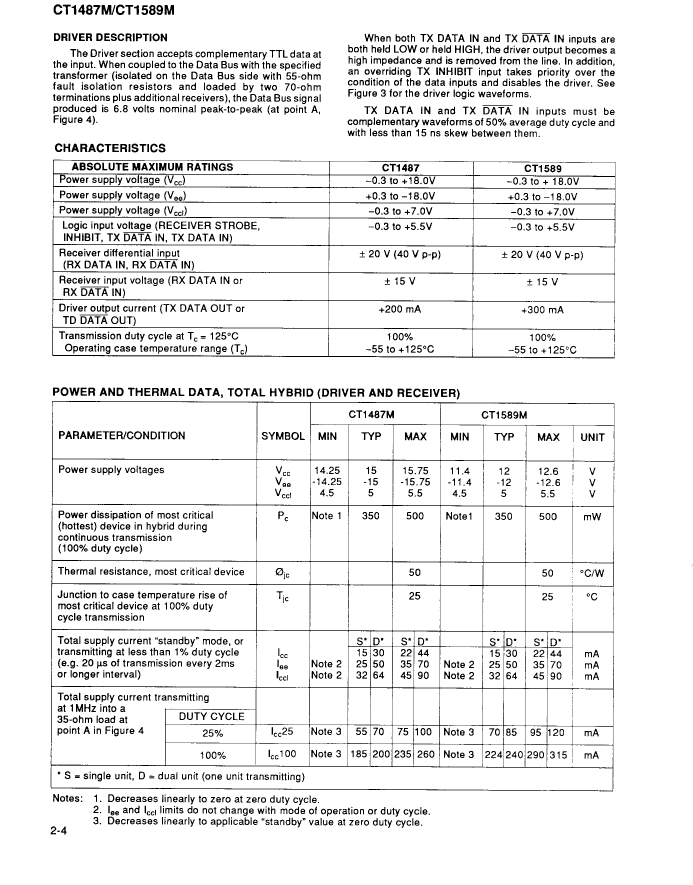

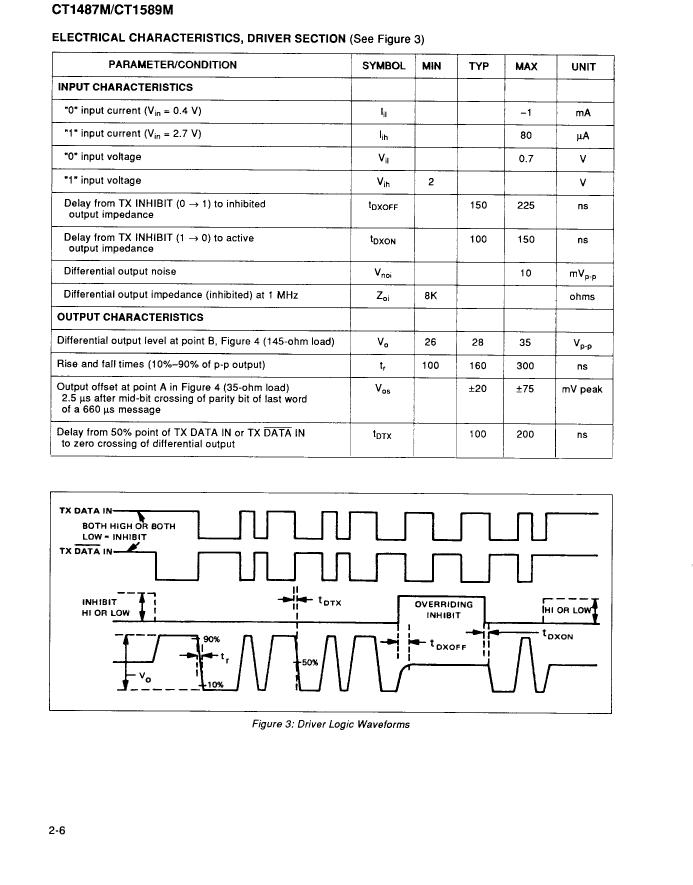

Preview

Download Datasheet

View All

CT1487MFP Related Products

	CT1487MFP	CT1487MIFP	CT1487MI	CT1487DIFP	CT1487DI	CT1487D	CT1589MIFP	CT1589MFP	CT1589DI
Description	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 1 Driver, Hybrid, MDIP24,	Line Driver/Receiver, 2 Driver, Hybrid, MDFP36,	Line Driver/Receiver, 2 Driver, Hybrid, MDIP36,	Line Driver/Receiver, 2 Driver, Hybrid, MDIP36,	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 2 Driver, Hybrid, MDIP36,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Dynex	Dynex	Dynex	Dynex	Dynex	Dynex	Dynex	Dynex	Dynex
package instruction	DFP, FL24,.74,100	DFP, FL24,.74,100	DIP, DIP24,.6	DFP, FL36,.8,100	DIP, DIP36,.6	DIP, DIP36,.6	DFP, FL24,.74,100	DFP, FL24,.74,100	DIP, DIP36,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Differential output	YES	YES	YES	YES	YES	YES	YES	YES	YES
Number of drives	1	1	1	2	2	2	1	1	2
High level input current maximum value	0.00008 A	0.00008 A	0.00008 A	0.00008 A	0.0001 A	0.00008 A	0.00008 A	0.00008 A	0.00008 A
JESD-30 code	R-XDFP-F24	R-XDFP-F24	R-MDIP-T24	R-MDFP-F36	R-MDIP-T36	R-MDIP-T36	R-XDFP-F24	R-XDFP-F24	R-MDIP-T36
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	24	24	24	36	36	36	24	24	36
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Minimum output swing	26 V	26 V	26 V	26 V	26 V	26 V	26 V	26 V	26 V
Maximum output low current	0.004 A	0.004 A	0.004 A	0.004 A	0.008 A	0.004 A	0.004 A	0.004 A	0.004 A
Package body material	CERAMIC	CERAMIC	METAL	METAL	METAL	METAL	CERAMIC	CERAMIC	METAL
encapsulated code	DFP	DFP	DIP	DFP	DIP	DIP	DFP	DFP	DIP
Encapsulate equivalent code	FL24,.74,100	FL24,.74,100	DIP24,.6	FL36,.8,100	DIP36,.6	DIP36,.6	FL24,.74,100	FL24,.74,100	DIP36,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-12 V	5,+-12 V	5,+-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns
surface mount	YES	YES	NO	YES	NO	NO	YES	YES	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
