DATA SHEET
PHOTOCOUPLER
PS2501-1,-2,-4,PS2501L-1,-2,-4
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode
and an NPN silicon phototransistor.
The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
−NEPOC
Series−
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High-speed switching (t
r
= 3
µ
s TYP., t
f
= 5
µ
s TYP.)
• Ordering number of tape product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4
• Safety standards
• UL approved: File No. E72422
1
2
PIN CONNECTION
(Top View)
PS2501-1, PS2501L-1
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
PS2501-2, PS2501L-2
8
7
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
PS2501-4, PS2501L-4
16 15 14 13 12 11 10 9
1
2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PN10225EJ03V0DS (3rd edition)
Date Published March 2006 CP(K)
Printed in Japan
The mark
shows major revised points.
NEC Compound Semiconductor Devices, Ltd. 1988, 2006
PS2501-1,-2,-4,PS2501L-1,-2,-4

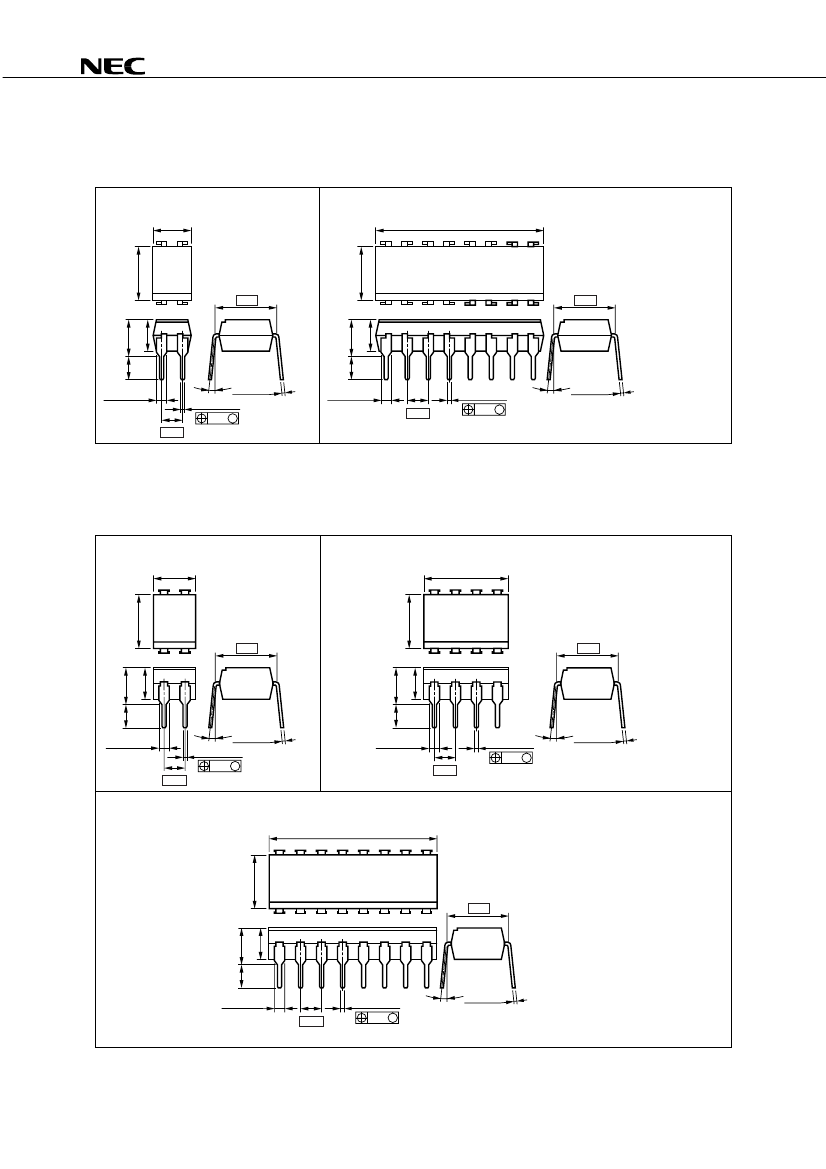

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type (New package)
PS2501-1
4.6±0.35
19.8±0.5
PS2501-4
6.5±0.5
7.62
6.5±0.5
7.62
3.2±0.4 4.15±0.4
3.2±0.4 4.15±0.4
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
3.5±0.3
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
Caution New package 1-ch, 4-ch only
DIP Type
PS2501-1
4.6±0.5
9.7±0.5
PS2501-2
6.5±0.5
6.5±0.5
7.62
3.3±0.5 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
7.62
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
PS2501-4
19.8±0.5
6.5±0.5
7.62
3.3±0.5 4.15±0.4
3.5±0.3
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2
Data Sheet PN10225EJ03V0DS
PS2501-1,-2,-4,PS2501L-1,-2,-4

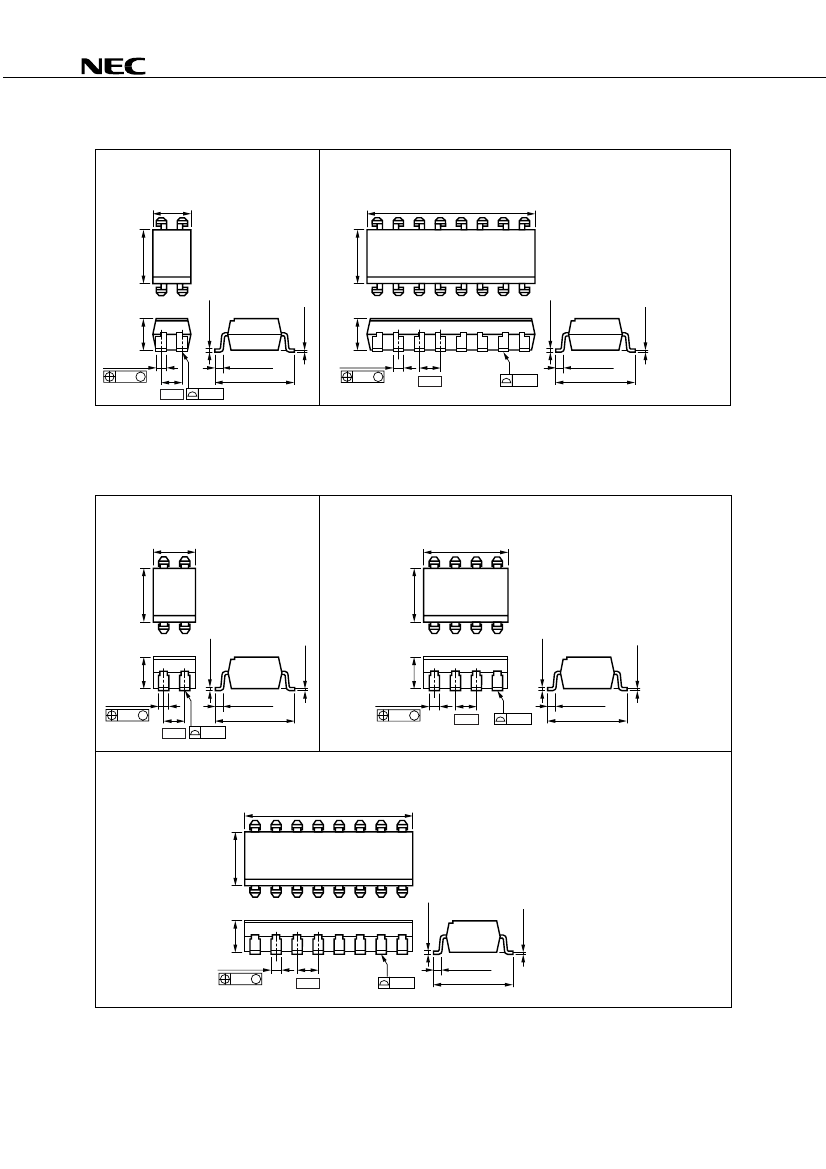

Lead Bending Type (New package)
PS2501L-1
4.6±0.35
19.8±0.5
PS2501L-4
6.5±0.5
0.25
+0.1
–0.05
6.5±0.5
0.1
+0.1
–0.05
0.25
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
Caution New package 1-ch, 4-ch only
Lead Bending Type
PS2501L-1
4.6±0.5
9.7±0.5
PS2501L-2
6.5±0.5
6.5±0.5
0.25
+0.1
–0.05
0.25
+0.1
–0.05
0.1
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
PS2501L-4
19.8±0.5
6.5±0.5
0.25
+0.1
–0.05
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
0.1
+0.1
–0.05
0.1
+0.1
–0.05
0.1
+0.1
–0.05
Data Sheet PN10225EJ03V0DS
3
PS2501-1,-2,-4,PS2501L-1,-2,-4
MARKING EXAMPLE
PS2501-1
No. 1 pin
Mark
No. 1 pin
Mark
PS2501-2, -4
2501
ML601
Assembly Lot
PS2501-2
NL601
Country Assembled
Type Number
Assembly Lot
M
L
6 01
N
L
6 01
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Package
Standard PKG
New PKG
Made in Japan Made in Taiwan
L
J
N
K
Package
Standard PKG
New PKG
*1
PS2501-4 only
Made in Japan Made in Taiwan
L
J
*1
N
4
Data Sheet PN10225EJ03V0DS
PS2501-1,-2,-4,PS2501L-1,-2,-4
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
PS2501-1
PS2501L-1
PS2501L-1-E3
PS2501L-1-E4
PS2501L-1-F3
PS2501L-1-F4
PS2501-2
PS2501L-2
PS2501L-2-E3
PS2501L-2-E4
PS2501-4
PS2501L-4
PS2501-1-A
PS2501L-1-A
PS2501L-1-E3-A
PS2501L-1-E4-A
PS2501L-1-F3-A
PS2501L-1-F4-A
PS2501-2-A
PS2501L-2-A
PS2501L-2-E3-A
PS2501L-2-E4-A
PS2501-4-A
PS2501L-4-A
Magazine case 20 pcs
PS2501-4
Embossed Tape 1 000 pcs/reel
Magazine case 45 pcs
PS2501-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Pb-Free
Magazine case 100 pcs
Packing Style
Safety Standard
Approval
Standard products
(UL approved)
Application Part
Number
PS2501-1
*1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10225EJ03V0DS
5
