CT1487DIFP: DescriptionLine Driver/Receiver, 2 Driver, Hybrid, MDFP36,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size300KB，8 Pages; ManufacturerCircuit Technology Inc

Download Datasheet Parametric Compare View All

CT1487DIFP Overview

Line Driver/Receiver, 2 Driver, Hybrid, MDFP36,

CT1487DIFP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Circuit Technology Inc
package instruction	DFP, FL36,.8,100
Reach Compliance Code	unknown
Differential output	YES
Number of drives	2
High level input current maximum value	0.0001 A
JESD-30 code	R-MDFP-F36
JESD-609 code	e0
Number of terminals	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	26 V
Maximum output low current	0.004 A
Package body material	METAL
encapsulated code	DFP
Encapsulate equivalent code	FL36,.8,100
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5,+-15 V
Certification status	Not Qualified
Maximum receive delay	450 ns
Filter level	38535Q/M;38534H;883B
surface mount	YES
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	2.54 mm
Terminal location	DUAL

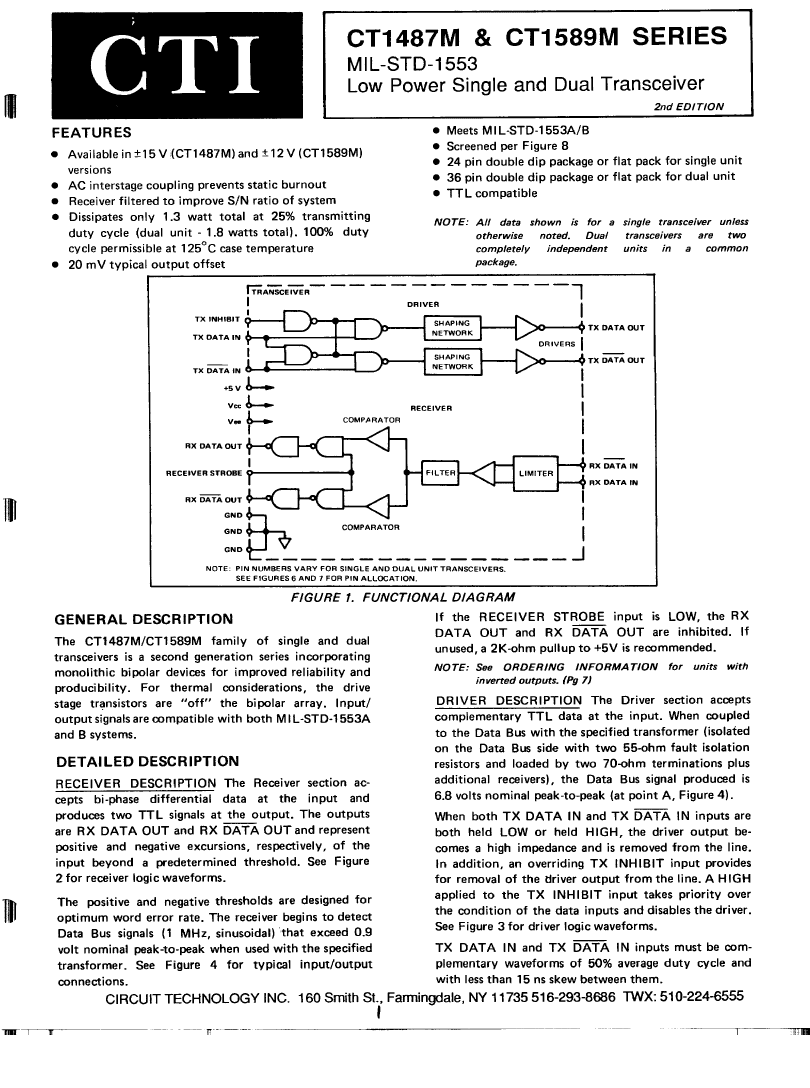

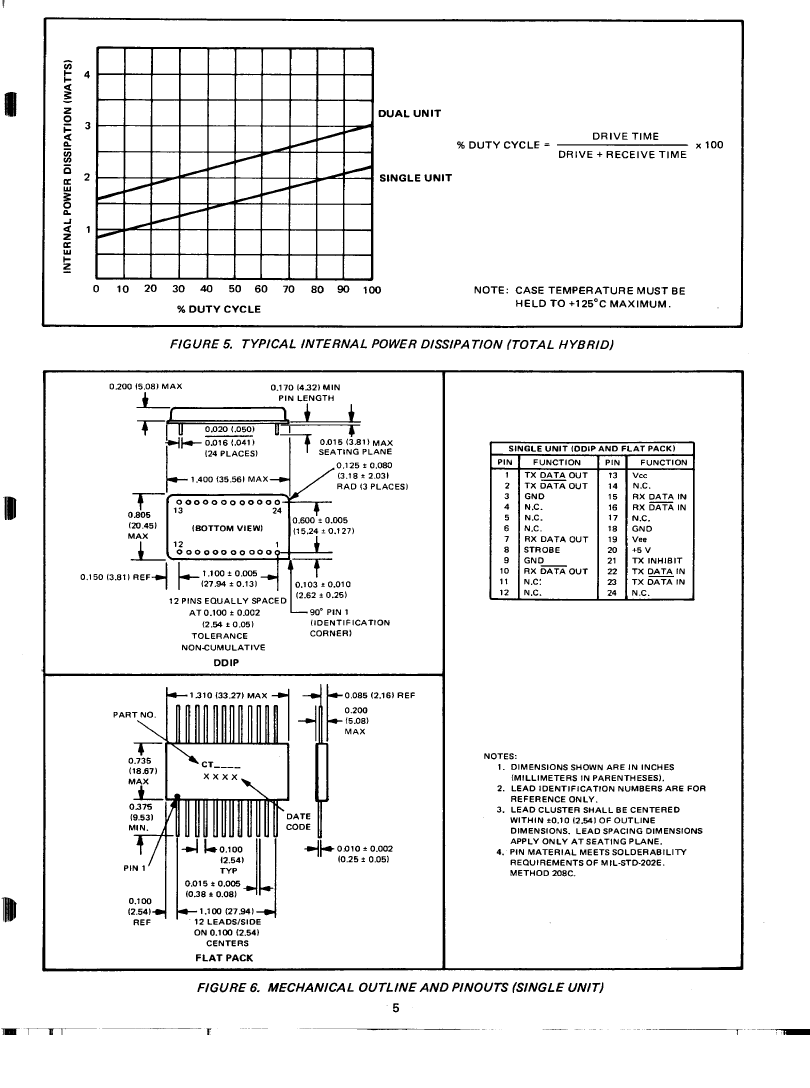

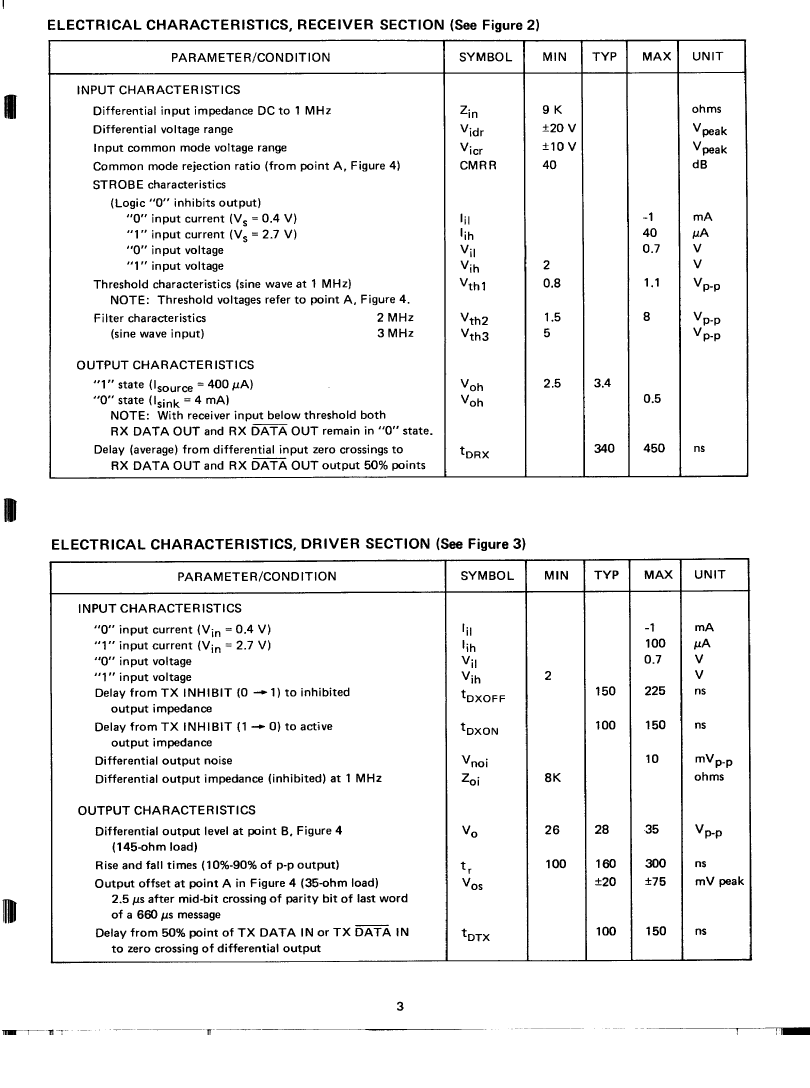

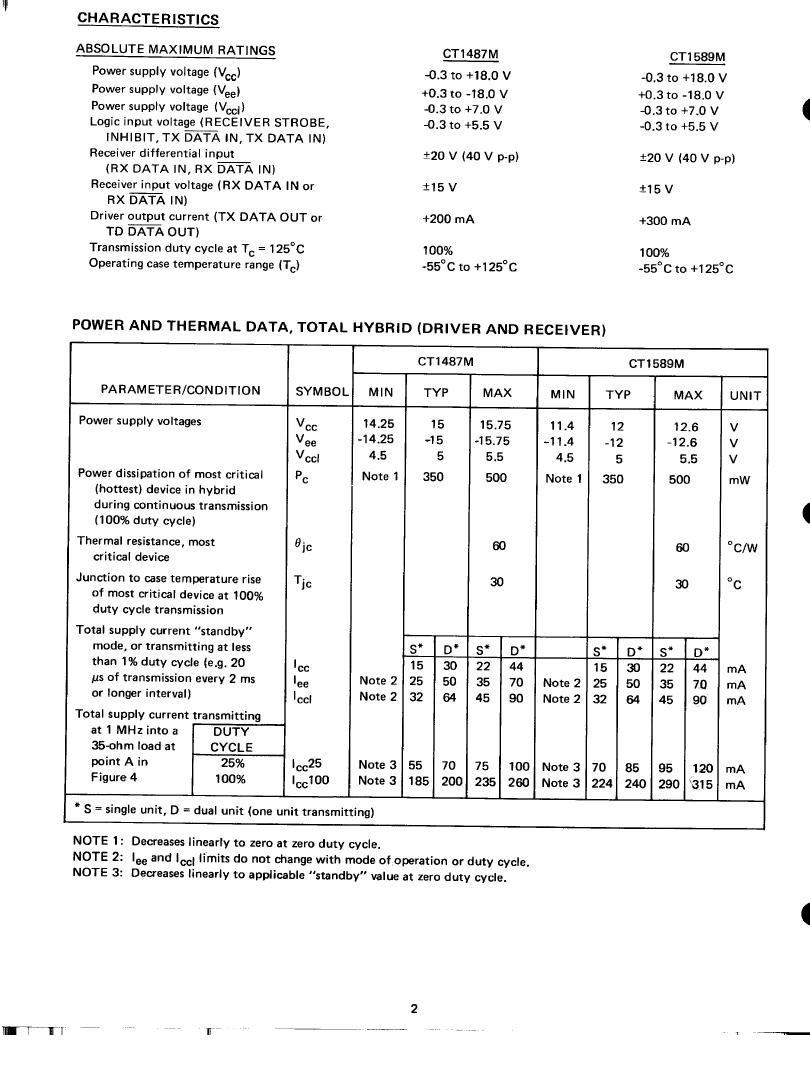

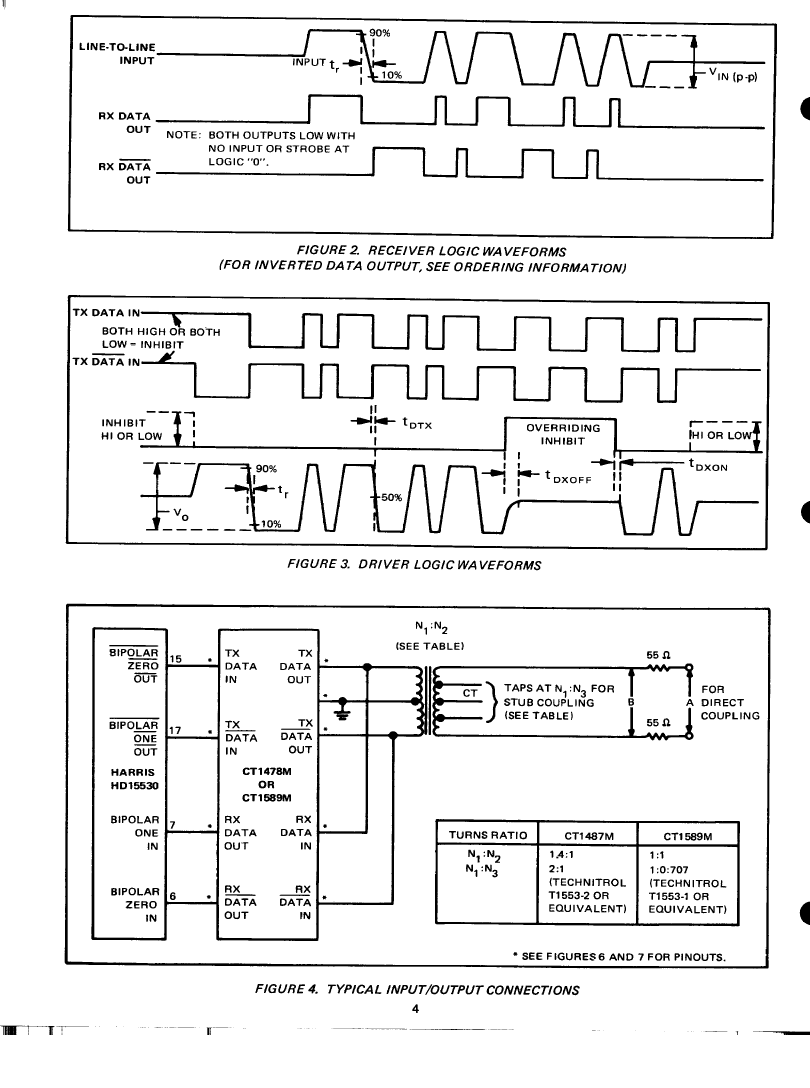

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CT1487DIFP Related Products

	CT1487DIFP	CT1487M	CT1487MIFP	CT1487MI	CT1487MFP	CT1487DI	CT1487D
Description	Line Driver/Receiver, 2 Driver, Hybrid, MDFP36,	Line Driver/Receiver, 1 Driver, Hybrid, MDIP24,	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 1 Driver, Hybrid, MDIP24,	Line Driver/Receiver, 1 Driver, Hybrid, CDFP24,	Line Driver/Receiver, 2 Driver, Hybrid, MDIP36,	Line Driver/Receiver, 2 Driver, Hybrid, MDIP36,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Circuit Technology Inc	Circuit Technology Inc	Circuit Technology Inc	Circuit Technology Inc	Circuit Technology Inc	Circuit Technology Inc	Circuit Technology Inc
package instruction	DFP, FL36,.8,100	DIP, DIP24,.6	DFP, FL24,.74,100	DIP, DIP24,.6	DFP, FL24,.74,100	DIP, DIP36,.6	DIP, DIP36,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Differential output	YES	YES	YES	YES	YES	YES	YES
Number of drives	2	1	1	1	1	2	2
High level input current maximum value	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
JESD-30 code	R-MDFP-F36	R-MDIP-T24	R-XDFP-F24	R-MDIP-T24	R-XDFP-F24	R-MDIP-T36	R-MDIP-T36
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of terminals	36	24	24	24	24	36	36
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Minimum output swing	26 V	26 V	26 V	26 V	26 V	26 V	26 V
Maximum output low current	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Package body material	METAL	METAL	CERAMIC	METAL	CERAMIC	METAL	METAL
encapsulated code	DFP	DIP	DFP	DIP	DFP	DIP	DIP
Encapsulate equivalent code	FL36,.8,100	DIP24,.6	FL24,.74,100	DIP24,.6	FL24,.74,100	DIP36,.6	DIP36,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns	450 ns
surface mount	YES	NO	YES	NO	YES	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
