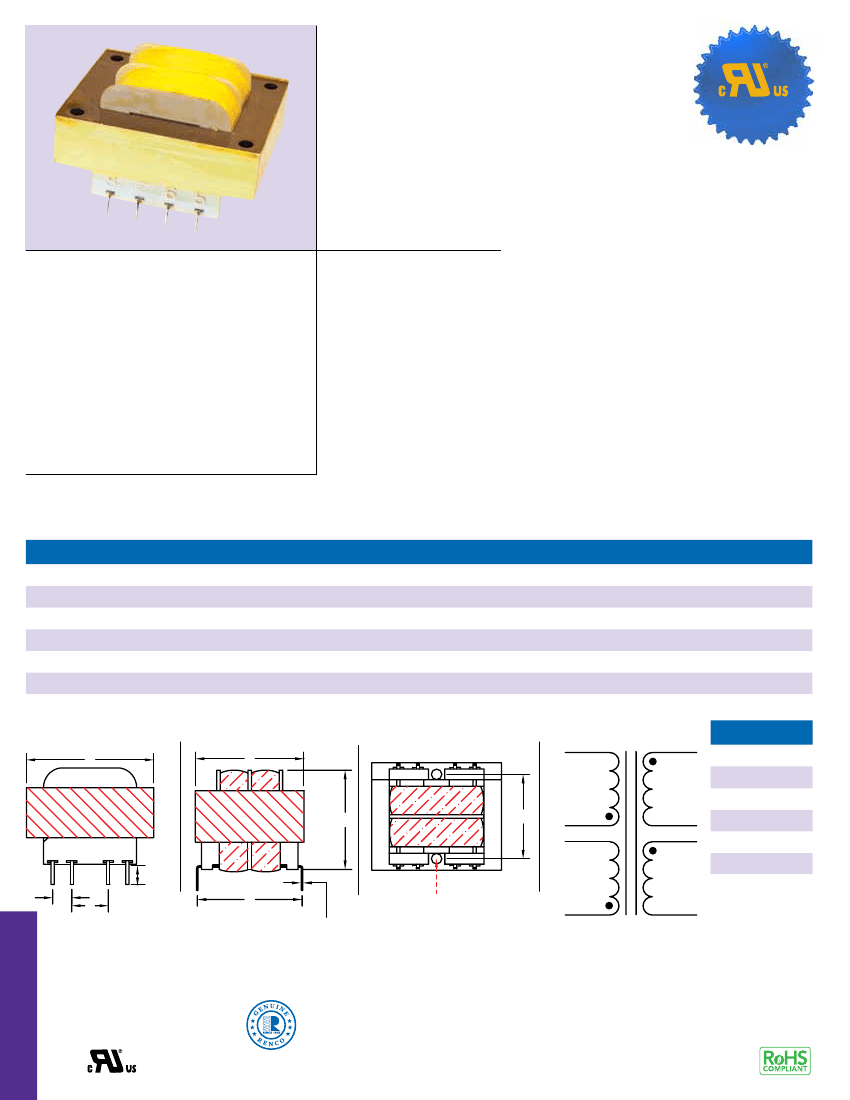

RLD-2240
50/60 HZ TRANSFORMERS
DUAL/TRAN™
DESCRIPTION
• Dual Transformer
UL RECOGNIZED
E132629
FEATURES & APPLICATIONS
• Advanced design and manufacturing techniques of using split
bobbins and nonconcentric winding of the primary and second ry
a
results in low interwinding capacitive coupling and eliminates the
need for electrostatic shielding
• Avoids crossover of primary and secondary leads
• Can be used in a wide variety of applications since they can
be supplied with single 115 VAC or dual 115/230 VAC
primaries for 50/60 Hz operation
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 508
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER SIZE VA
RLD-2240
RLD-2240
RLD-2240
RLD-2240
RLD-2240
RLD-2240
FRONT VIEW
A
A (MAX.)
1.375 (34.93)
1.375 (34.93)
1.625 (41.28)
1.875 (47.63)
2.250 (57.15)
2.625 (66.68)
SIDE VIEW
D
B (TYP.)
0.25 (6.35)
0.25 (6.35)
0.25 (6.35)
0.30 (7.62)
0.30 (7.62)
0.40 (10.16)
C (TYP.)
0.25 (6.35)
0.25 (6.35)
0.30 (8.89)
0.40 (10.16)
0.40 (10.16)
0.40 (10.16)
D (MAX.)
1.1250 (28.58)
1.1250 (28.58)
1.3125 (33.34)
1.5625 (39.69)
1.8750 (47.63)
2.1875 (55.56)
E (MAX.)
0.9375 (23.81)
1.1875 (30.16)
1.3125 (33.34)
1.4375 (36.51)
1.4375 (36.51)
1.5625 (39.69)
F (TYP.)
1.20 (30.48)
1.20 (30.48)
1.28 (32.51)
1.41 (35.81)
1.60 (40.64)
1.85 (46.99)
2
3
4
5
6
7
1.1
2.4
6
12
20
36
BOTTOM VIEW
1
2
3
4
SCHEMATIC
4
5
G (MAX.)
-
-
1.3125 (33.34)
6
7
115 V
50/60 Hz
E
G
3
2
1.250 (31.75)
1.500 (38.10)
*
1
B
C
4
0.28
(7.11)
MIN.
5
6
7
8
4
F
8
115 V
50/60 Hz
1
8
NOTE: WHITE DOT
INDICATES PIN #1
PIN DIMENSION
0.041 (1.04)
CLEARANCE HOLE FOR
OPTIONAL NYLON MTG.
SCREW AND NUT (2PL)
TRANSFORMERS
RENCO ELECTRONICS INC.
448
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RLD-2240
Renco Part Number
Single 115/230V 8 Pin
RLD-2240-2-10
RLD-2240-3-10
RLD-2240-4-10
RLD-2240-5-10
RLD-2240-6-10
RLD-2240-7-10
RLD-2240-2-12
RLD-2240-3-12
RLD-2240-4-12
RLD-2240-5-12
RLD-2240-6-12
RLD-2240-7-12
RLD-2240-2-16
RLD-2240-3-16
RLD-2240-4-16
RLD-2240-5-16
RLD-2240-6-16
RLD-2240-7-16
RLD-2240-2-20
RLD-2240-3-20
RLD-2240-4-20
RLD-2240-5-20
RLD-2240-6-20
RLD-2240-7-20
RLD-2240-2-24
RLD-2240-3-24
RLD-2240-4-24
RLD-2240-5-24
RLD-2240-6-24
RLD-2240-7-24
RLD-2240-2-28
RLD-2240-3-28
RLD-2240-4-28
RLD-2240-5-28
RLD-2240-6-28
RLD-2240-7-28
RLD-2240-2-36
RLD-2240-3-36
RLD-2240-4-36
RLD-2240-5-36
RLD-2240-6-36
RLD-2240-7-36
SECONDARY RMS RATING
Series
Parallel
10V C.T. @ 0.11 A
10V C.T. @ 0.25 A
10V C.T. @ 0.60 A
10V C.T. @ 1.20 A
10V C.T. @ 2.00 A
10V C.T. @ 3.60 A
12.6V C.T. @ 0.09 A
12.6V C.T. @ 0.20 A
12.6V C.T. @ 0.50 A
12.6V C.T. @ 1.00 A
12.6V C.T. @ 1.60 A
12.6V C.T. @ 2.85 A
16V C.T. @ 0.07 A
16V C.T. @ 0.15 A
16V C.T. @ 0.40 A
16V C.T. @ 0.80 A
16V C.T. @ 1.25 A
16V C.T. @ 2.25 A
20V C.T. @ 0.05 A
20V C.T. @ 0.12 A
20V C.T. @ 0.30 A
20V C.T. @ 0.60 A
20V C.T. @ 1.00A
20V C.T. @ 1.80 A
24V C.T. @ 0.045 A
24V C.T. @ 0.10 A
24V C.T. @ 0.25 A
24V C.T. @ 0.50 A
24V C.T. @ 0.80 A
24V C.T. @ 1.50 A
28V C.T. @ 0.04 A
28V C.T. @ 0.085 A
28V C.T. @ 0.20 A
28V C.T. @ 0.42 A
28V C.T. @ 0.70 A
28V C.T. @ 1.30 A
36V C.T. @ 0.03 A
36V C.T. @ 0.065 A
36V C.T. @ 0.17 A
36V C.T. @ 0.35 A
36V C.T. @ 0.55 A
36V C.T. @ 1.00 A
5V @ 0.22 A
5V @ 0.50 A
5V @ 1.20 A
5V @ 2.40 A
5V @ 4.00 A
5V @ 7.20 A
6.3V @ 0.18 A
6.3V @ 0.40 A
6.3V @ 1.00 A
6.3V @ 2.00 A
6.3V @ 3.20 A
6.3V @ 5.70 A
8V @ 0.14 A
8V @ 0.30 A
8V @ 0.08 A
8V @ 1.60 A
8V @ 2.50 A
8V @ 4.50 A
10V @ 0.11 A
10V @ 0.24 A
10V @ 0.60 A
10V @ 1.20 A
10V @ 2.00 A
10V @ 3.60 A
12V @ 0.09 A
12V @ 0.20 A
12V @ 0.50 A
12V @ 1.00 A
12V @ 1.60 A
12V @ 3.00 A
14V @ 0.08 A
14V @ 0.17 A
14V @ 0.40 A
14V @ 0.84 A
14V @ 1.40 A
14V @ 2.60 A
18V @ 0.06 A
18V @ 0.13 A
18V @ 0.34 A
18V @ 0.70 A
18V @ 1.10 A
18V @ 2.00 A
PART
NUMBER
RLD-2240
RLD-2240
RLD-2240
RLD-2240
RLD-2240
RLD-2240
VA SIZE
2
3
4
5
6
7
1.1
2.4
6
12
20
36
OPTIONAL
MTG SCREW NUT
NONE
NONE
4-40 NYLON
4-40 NYLON
4-40 NYLON
*
* SIZE 7 HAS 4 MOUNTING HOLES ON
2.1875 (55.56) X 1.75 (44.45) CENTERS
FOR A #6 SCREW. NEED NOT BE NYLON.
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
449
TRANSFORMERS
RLD-2240 TABLE CONTINUES ON FOLLOWING PAGE
RLD-2240
Renco Part Number
Single 115/230V 8 Pin
RLD-2240-2-48
RLD-2240-3-48
RLD-2240-4-48
RLD-2240-5-48
RLD-2240-6-48
RLD-2240-7-48
RLD-2240-2-56
RLD-2240-3-56
RLD-2240-4-56
RLD-2240-5-56
RLD-2240-6-56
RLD-2240-7-56
RLD-2240-2-120
RLD-2240-3-120
RLD-2240-4-120
RLD-2240-5-120
RLD-2240-6-120
RLD-2240-7-120
SECONDARY RMS RATING
Series
Parallel
48V C.T. @ 0.023 A
48V C.T. @ 0.05 A
48V C.T. @ 0.125 A
48V C.T. @ 0.25 A
48V C.T. @ 0.40 A
48V C.T. @ 0.75 A
56V C.T. @ 0.02 A
56V C.T. @ 0.045 A
56V C.T. @ 0.11 A
56V C.T. @ 0.22 A
56V C.T. @ 0.35 A
56V C.T. @ 0.65 A
120V C.T. @ 0.01 A
120V C.T. @ 0.02 A
120V C.T. @ 0.05 A
120V C.T. @ 0.10 A
120V C.T. @ 0.16 A
120V C.T. @ 0.30 A
24V @ 0.046 A
24V @ 0.10 A
24V @ 0.25 A
24V @ 0.50 A
24V @ 0.80 A
24V @ 1.50 A
28V @ 0.042 A
28V @ 0.09 A
28V @ 0.22 A
28V @ 0.44 A
28V @ 0.70 A
28V @ 1.30 A
60V @ 0.02 A
60V @ 0.04 A
60V @ 0.10 A
60V @ 0.20 A
60V @ 0.32 A
60V @ 0.60 A
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
PART NUMBER
RLD-2240-2
RLD-2240-3
RLD-2240-4
RLD-2240-5
RLD-2240-6
RLD-2240-7
PART WEIGHT
73.0g (2.58oz)
112.0g (3.95oz)
179.0g (6.31oz)
296.0g (10.44oz)
372.0g (13.12oz)
519.0g (18.31oz)
TRANSFORMERS
RENCO ELECTRONICS INC.
450
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
