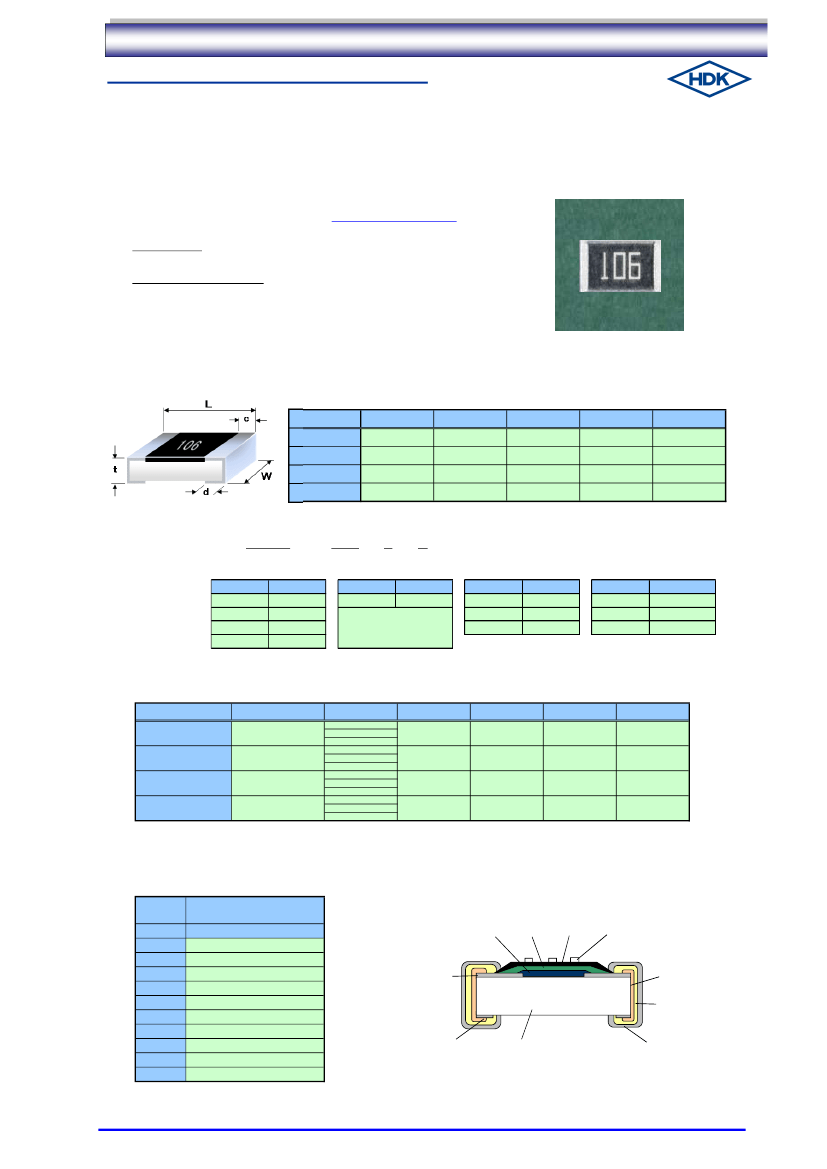

High Voltage Type Chip Resistor
Hokuriku Electric Industry Co.,Ltd
【Model Number】
HCR**
【Features】
■Compared to normal chip resistor,
this product can be
used at higher voltage.
■Reflow, Flow solderings are applicable.
■Europe RoHS compliant product.
【Dimensions】
(Unit: mm)
Model No.
L
1.60±0.15
2.00±0.10
3.20±0.10
5.00±0.15
W
0.80±0.15
1.25±0.10
1.60±0.10
2.50±0.15
t
0.50±0.10
0.50±0.10
0.50±0.10
0.55±0.15
c
0.25±0.20
0.40±0.20
0.50±0.20
0.40±0.20
d
0.25±0.20
0.40±0.20
0.50±0.20
0.40±0.20
HCR16
HCR20
HCR32
HCR50
【Designation】
HCR２０
①
①Model No.
Model No.
Size
HCR16
1608
HCR20
2012
HCR32
3216
HCR50
5025
-
１０５
②
Ｊ
③
Ｖ
④
③Resistance Tolerance
Symbol
Tolerance
Ｆ
±1.0％
Ｇ
±2.0％
J
±5.0％
③Packing Form
Symbol
Form
V
Paper tape
Ｅ
Emboss tape
B
Bulk
②Resistance Value
Marking
Resistance
105
1ＭΩ
105＝10×10
5
＝1,000,000Ω＝1ＭΩ
【Specification】
Model No.
Rated power (W)
at 70℃
0.100
0.125
0.250
0.500
Tolerance
Class F (±1%)
Class G (±2%)
Class J (±5%)
Class F (±1%)
Class G (±2%)
Class J (±5%)
Class F (±1%)
Class G (±2%)
Class J (±5%)
Class F (±1%)
Class G (±2%)
Class J (±5%)
Range (Ω)
180K½20M
180K½20M
100K½20M
3M½16M
TCR (ppm/℃)
±200
±200
±200
±200
Max.Working Voltage
Max.Overload Voltage
HCR16
HCR20
HCR32
HCR50
350V (DC)
400V
500V
1500V
500V (DC)
800V
1000V
* Operating temperature range: -55½+155 ℃
【Structure】
Model
No.
No.
1
2
3
4
5
6
7
8
9
10
HCR20, HCR32, HCR50
Element Name
Ceramic substrate
Bottom electrode
Top electrode
Resistive element
Protective coat Ⅰ
Protective coat Ⅱ
Marking
Side electrode
Ni plating
Sn plating
4
5
6
7
3
8
9
2
１
10
* Design・specification are subject to change without prior notice. Please check before purchase and use.
