OM9375SPP datasheet, PDF - EEWORLD Datasheet

OM9375SPP: DescriptionBrushless DC Motor Controller, 50A, PDFM43, PLASTIC, MP3-43L, 43 PIN; CategoryOther integrated circuit (IC) The signal circuit; File Size812KB，12 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

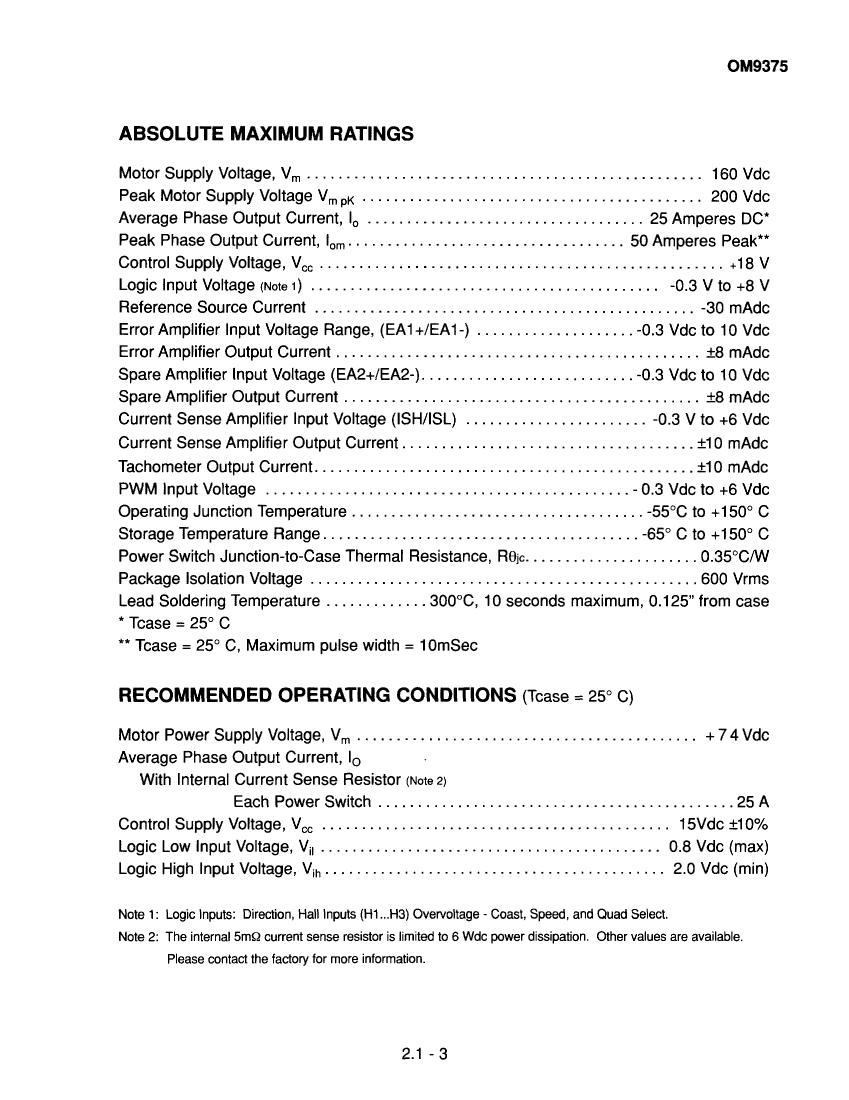

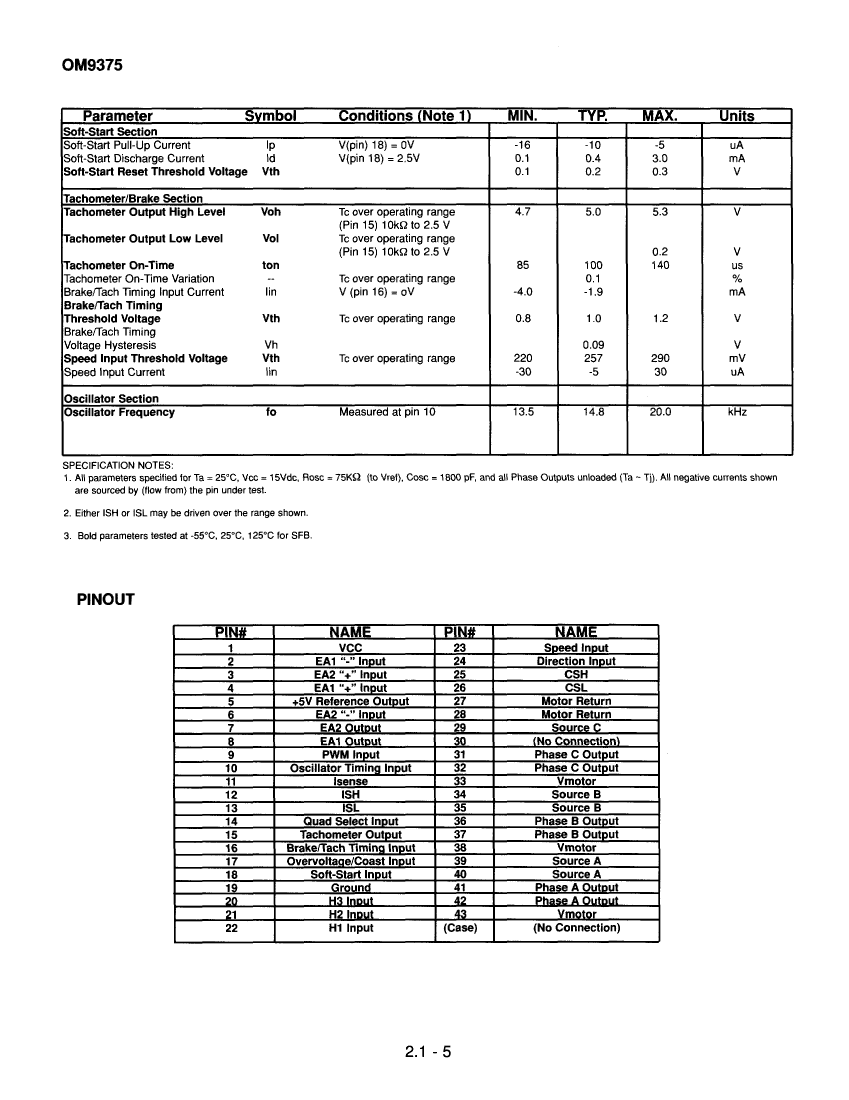

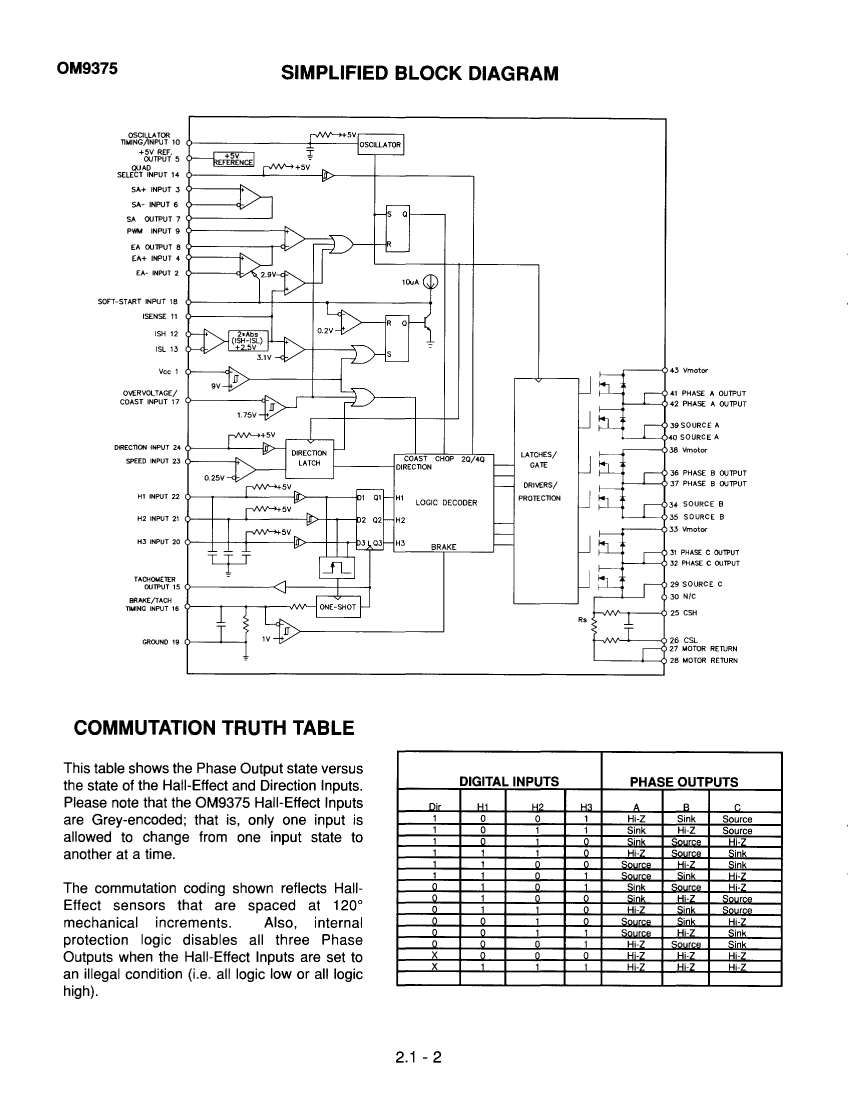

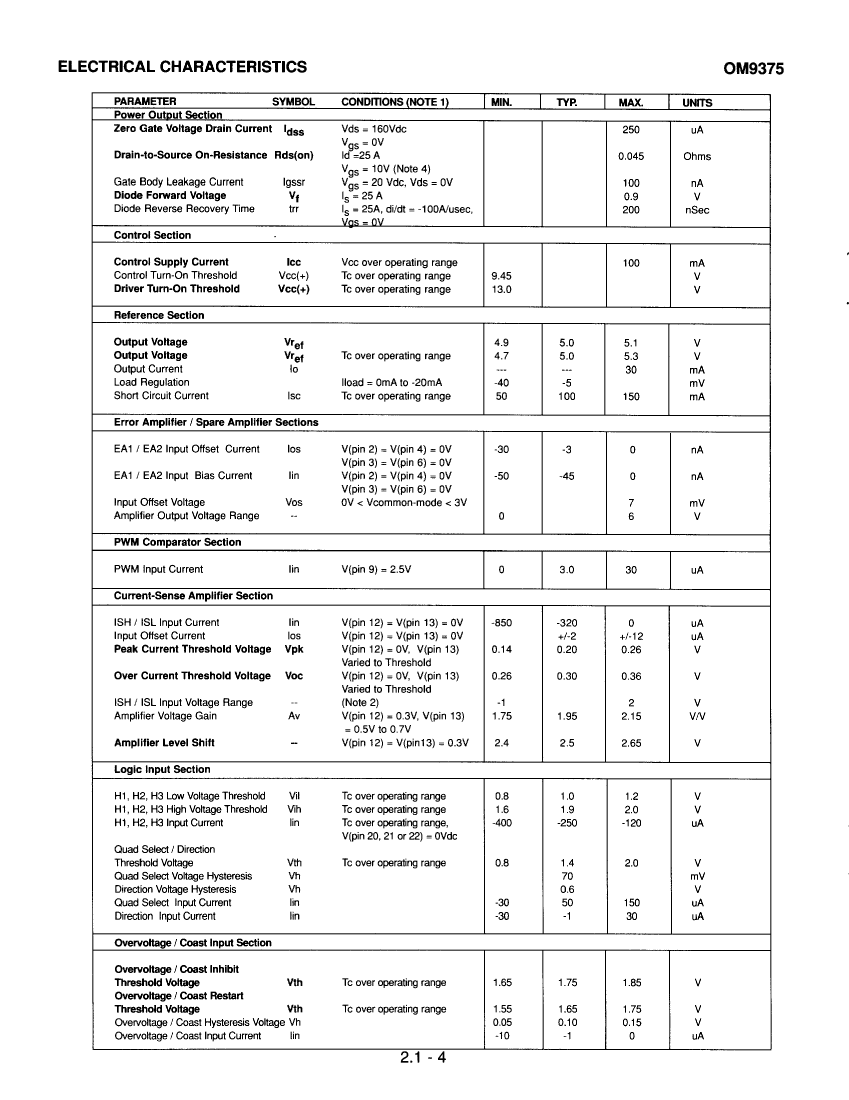

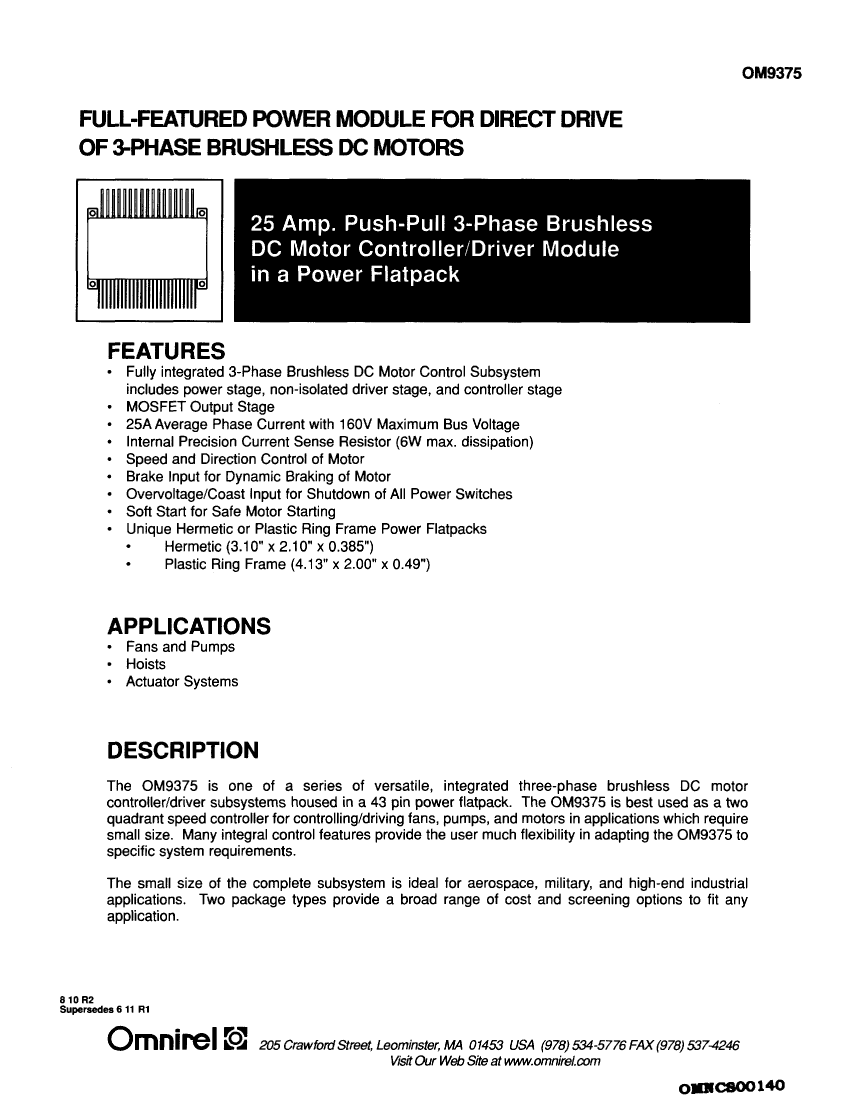

OM9375SPP Overview

Brushless DC Motor Controller, 50A, PDFM43, PLASTIC, MP3-43L, 43 PIN

Parameter Name	Attribute value
Maker	Omnirel Corp.
package instruction	PLASTIC, MP3-43L, 43 PIN
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDFM-F43
Number of functions	1
Number of terminals	43
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	50 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal location	DUAL

	OM9375SPP	OM9375SFB
Description	Brushless DC Motor Controller, 50A, PDFM43, PLASTIC, MP3-43L, 43 PIN	Brushless DC Motor Controller, 50A, MDFM43, HERMETIC SEALED, F-43, 43 PIN
Maker	Omnirel Corp.	Omnirel Corp.
package instruction	PLASTIC, MP3-43L, 43 PIN	HERMETIC SEALED, F-43, 43 PIN
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDFM-F43	R-MDFM-F43
Number of functions	1	1
Number of terminals	43	43
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C
Maximum output current	50 A	50 A
Package body material	PLASTIC/EPOXY	METAL
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	16.5 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	MILITARY
Terminal form	FLAT	FLAT
Terminal location	DUAL	DUAL
