GF201
Series
TOCOS
PA N E L C O N T R O L S
®

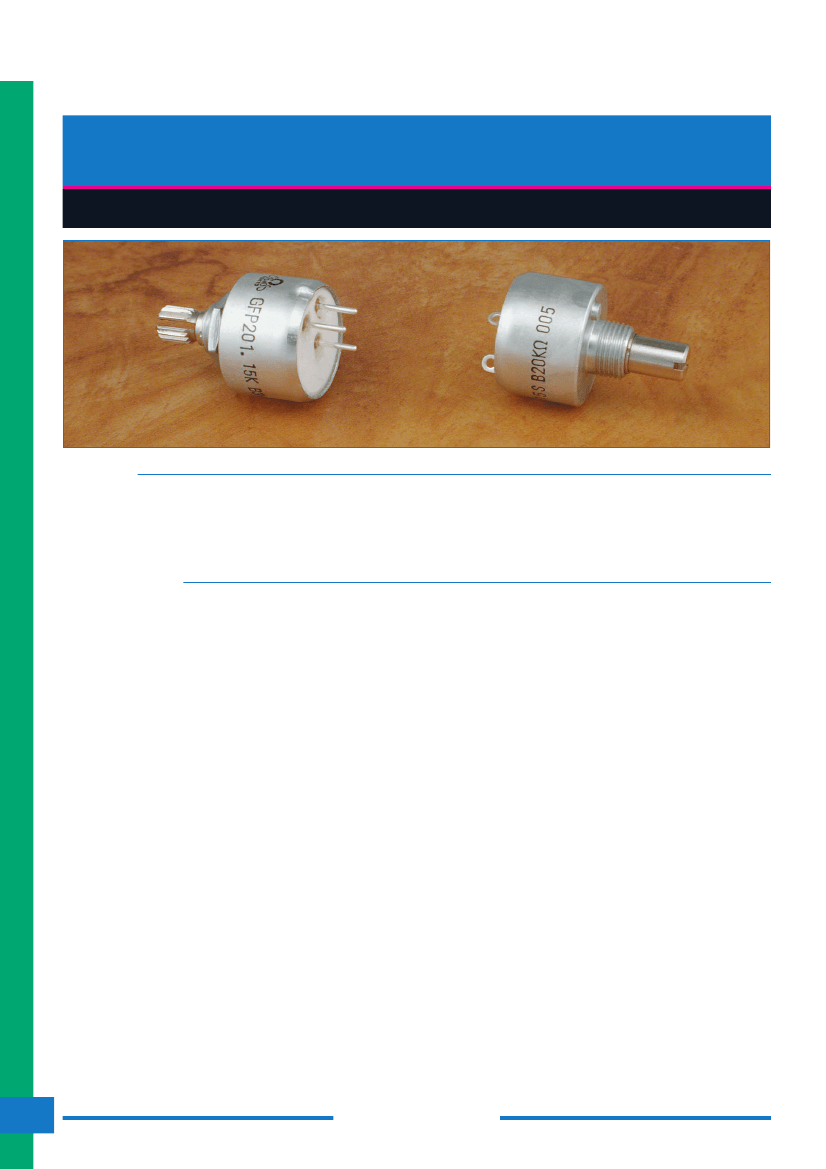

20mm Diameter, Single-Turn, Cermet Industrial Panel Controls
GFP201
GF201
Features
20mm diameter, single-turn industrial panel controls
Cermet film element
Single unit, single shaft
Excellent environmental characteristics
Wide temperature range of 10 C to 125 C
Metal shaft and bushing
Linear taper
Shaft lock available
Panel or PCB vertical mount
Rear exit lug or pin terminals
6mm diameter shafts in slot, flat or round end styles
Standard 15mm or 20mm shaft length
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . 100Ω to 1MΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
10% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Ω max.
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . B = linear
Peak Noise (C.R.V.)
. . . . . . . 3% or 5Ω, whichever is greater
Power Rating
. . . . . . . . . .1 watt at
70 C, 0 watt at
120 C
Maximum Input Voltage
. . . . . . . . 350VDC or power rating,
whichever is smaller
Temperature Coefficient
. . .
100 ppm / C, 200Ω to 500kΩ
250 ppm / C, other values
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
Load Life
. . . . . . . . . . . .
10 C to
125 C
70 C, 1,000 hours with rated load
∆T/R
)
5%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 10 C ~ 120 C,
5 cycles without load
∆T/R
)
5%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
2%
Rotational Life
. . . . 15,000 cycles (500 cycles for shaft lock
models only) without load
∆T/R
)
5%
∆T/R
= Total Resistance Change
Dielectric Strength
. . . . . . . . . . . . . . . . 1,000VAC, 1 minute
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 260
10
Shaft Torque
. . . . . . 50 to 300 gf
•
cm (0.693 to 4.159 oz
•
in)
Stop Strength
. . . . . . . . . . . . . . 6 kgf
•
cm (83.18 oz
•
in) max.
Solderability
. . . . . . . . . . . . . . . . . . . . . . . 235 C, 5 seconds
Marking
. . . . . . . . . . . . . . . . . Model type, taper, resistance,
shaft type, terminal identification, date code
78
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
GF201 Series
GF201

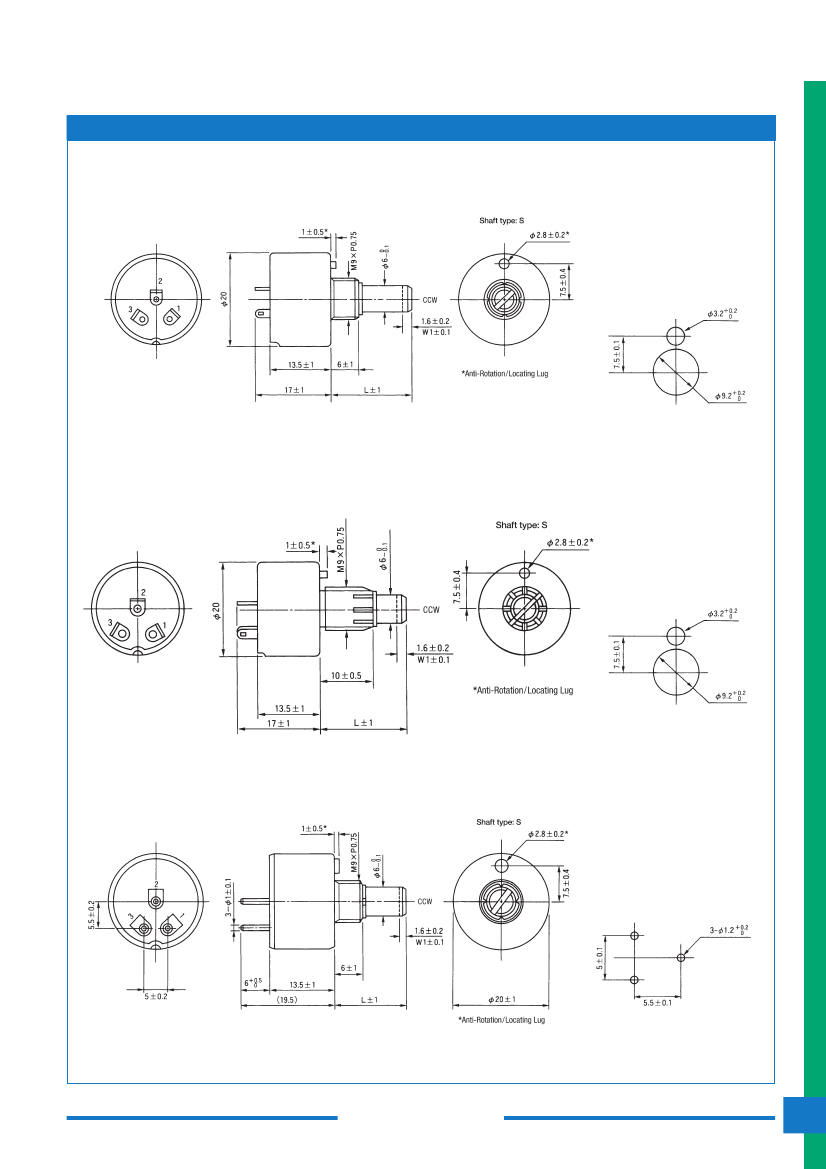

Dimensions
Unit: mm
Panel Mount, Single Unit, Single Shaft
Rear Exit Vertical Lug Terminals, 3-Lug Triangular Pattern
Recommended
Panel Mounting Holes
GF201L
Panel Mount, Single Unit, Single Shaft with Shaft Lock
Rear Exit Vertical Lug Terminals, 3-Lug Triangular Pattern
Recommended
Panel Mounting Holes
GFP201
PCB Mount, Single Unit, Single Shaft
Rear Exit Vertical Mount Pin Terminals, 3-Pin Triangular Pattern
Recommended
PCB Mounting Holes
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
79
GF201 Series
GF P 201 L 15 S B 103 K
Part Numbering System
NOTE: FMS = From Mounting Surface
Resistance Tolerance: K
=
10% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω; 105 = 1,000,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
Shaft End Style: S
= Slotted.
F
= Flatted.
R
= Round.
Standard Shaft Length: 15
= 15 mm FMS.
20
= 20mm FMS.
Up to 50mm shaft length available (special order ).
Shaft Lock: L
= With Shaft Lock.
Blank
= Without Shaft Lock.
Size: 201
= 20mm Diameter.
Style: Blank
= Panel Mount, Single Unit, Single Shaft, Rear Exit Vertical
Lug Terminals, 3-Lug Triangular Pattern.
P
= PCB Mount, Single Unit, Single Shaft, Rear Exit Vertical
Mount Pin Terminals, 3-Pin Triangular Pattern.
TOCOS Series Name: GF
= Cermet Film Element.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
100
200
500
Code
101
201
501
Resistance (
Ω
)
1,000
2,000
5,000
Code
102
202
502
Resistance (
Ω
)
10,000
20,000
50,000
Code
103
203
503
Resistance (
Ω
)
100,000
200,000
500,000
Code
104
204
504
Resistance (
Ω
)
1,000,000
Code
105
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
80
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
