GV4
Series
TOCOS
POTENTIOMETERS
®
4mm Surface Mount, Multi-Turn, Sealed Cermet Trimmers
Features

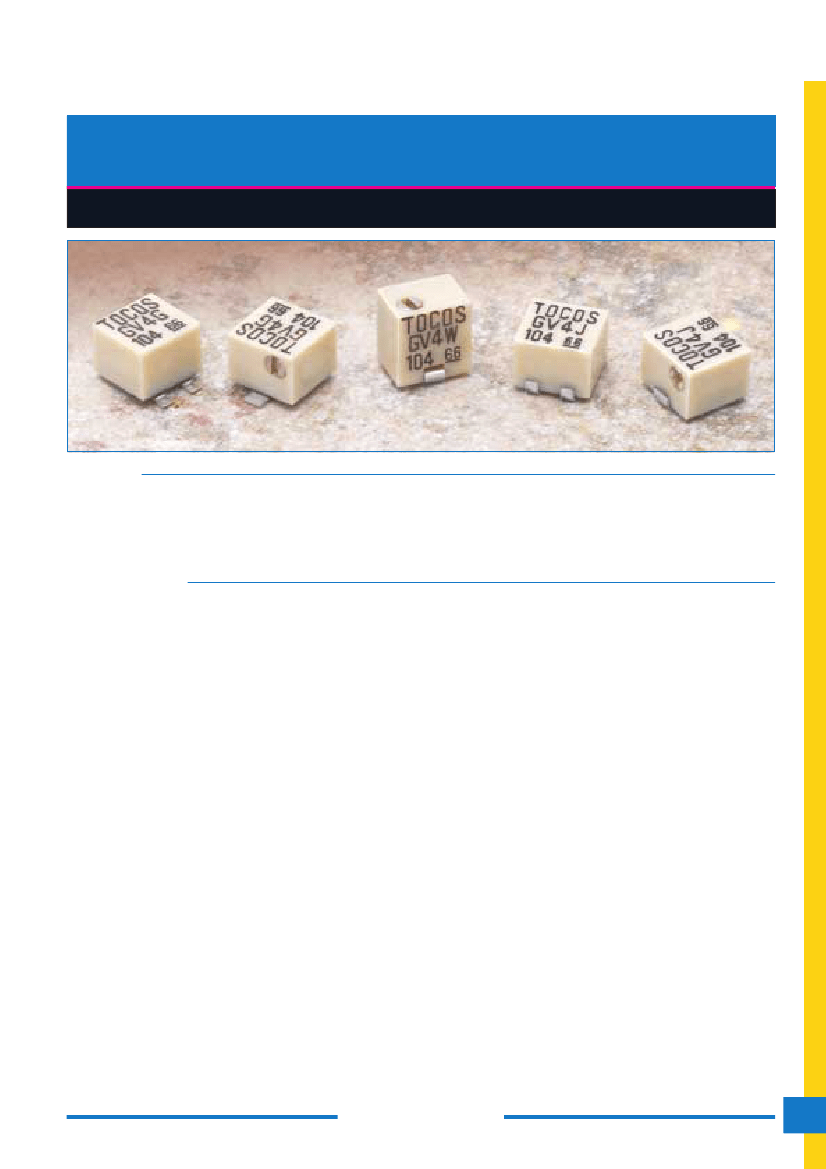

4mm square SMD, multi-turn, sealed cermet trimmers
Available in J-hook and gull-wing terminal configurations
Top or side adjustment, flush with housing
Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs
Wide temperature range of 65 C to 150 C
TCR = 100ppm / C; Low CRV = 1%

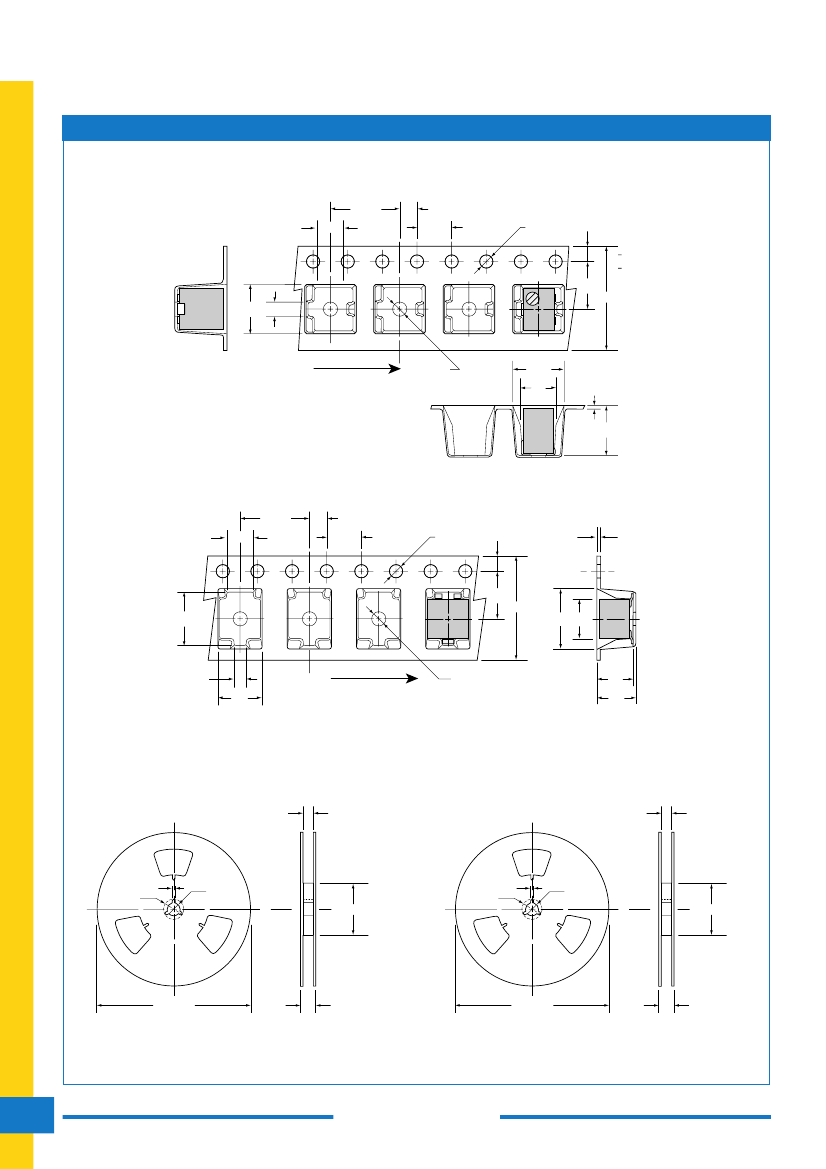

Tape and reel packaging
Designed for flow, reflow or infrared reflow soldering
Sealed to withstand immersion cleaning processes
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . . 10Ω to 2MΩ
(standard 1, 2 & 5 sequence)
Resistance Tolerance
. . . . . . . . . . . . . . . . .
10% standard
End Resistance
. . . . . . . . . . 1% or 2Ω, whichever is greater
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear
Peak Noise (C.R.V.)
. . . . . . . 1% or 3Ω, whichever is greater
Power Rating
. . . . . . . 0.25 watt at
85 C; 0 watt at
150 C
Maximum Input Voltage
. . . . . . . . 300VDC or power rating,
whichever is smaller
Temperature Coefficient
. . . . . . . . . . . . . . . .
100 ppm / C
Insulation Resistance
. . . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 600VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . 12 2 turns nominal
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
65 C to
150 C
Low Temperature Operation
. . . . 65 C, 0.25 watt, 2 hours
∆T/R
)
1%, S.S.
)
1%
High Temperature Exposure
. . . . . . . . . 150 C, 250 hours
∆T/R
)
2%, S.S.
)
1%
Load Life
. . . . . . . . . . . . . . . . 85 C, 0.25 watt, 1,000 hours
∆T/R
)
3% or
∆R
= 3Ω, S.S.
)
2%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 65 C, 150 C,
30 minutes each, 5 cycles
∆T/R
)
2%, S.S.
)
1%
Shock
. . . . . . . . . . . . 100G, 6ms, 6 directions, 3 times each
∆T/R
)
1%, S.S.
)
1%
Vibration
. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,
20G, 12 hours
∆T/R
)
1%, S.S.
)
1%
Humidity
. . . . . . . . . . . . . . . . . . . . . . . .
40 C, 90-95%RH,
0.25 watt, 500 hours
∆T/R
)
3%, S.S.
)
2%
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . 13 1 turns
Shaft Torque
. . . . . . . . . . . . . . . 180 gf
•
cm (2.49 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . Clutch action or wiper idles
Flammability of Plastic Materials
. . . . . . . Meets UL 94V-0
Nominal Weight
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2g
Marking
. . . . . . . . . . . . Resistance value or code, date code
Moisture Resistance
. . . . . . 10 C to 65 C, 80-98%RH,
0.25 watt, 10 cycles, 240 hours
∆T/R
)
3%
Soldering Heat Resistance
. . . . 260 C, 4 sec. in, 2 sec. out
∆T/R
)
1%
Seal Test
. . . . . . . . . . . . . . .
85 C, Fluorinert
®
for 1 minute
Rotational Life
. . . 100 cycles (
!
100Ω), 200 cycles (
8
100Ω)
without discontinuity, no load
∆T/R
)
3% or
∆R
= 3Ω
∆T/R
= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )
®
Fluorinert
is a registered trademark of 3M Co.
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
23
GV4 Series
GV4
J
T
B
102
K
Part Numbering System
Resistance Tolerance: K = 10% standard.
Resistance Code: Expressed in ohms. A three digit code where the first two digits
are significant figures, and the third digit indicates the number of zeros that follow
these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω; 105 = 1,000,000Ω ).
Resistance Taper: B = Linear.
Packaging: T = Tape & Reel; Blank = Bulk.
Terminal Style: W = J-Hook Top Adjust.
J = J-Hook Side Adjust.
G = Gull-Wing Side Adjust.
TOCOS Series Name.
Part Numbers
Nominal Resistance
Value (
Ω
)
Code
Single-Slot
Catalog No.
Tape & Reel
Catalog No.
Bulk
Maximum Input Ratings
Maximum Wiper
Maximum
Current (mA)
Input Voltage ( V )
Potentiometer
Styles

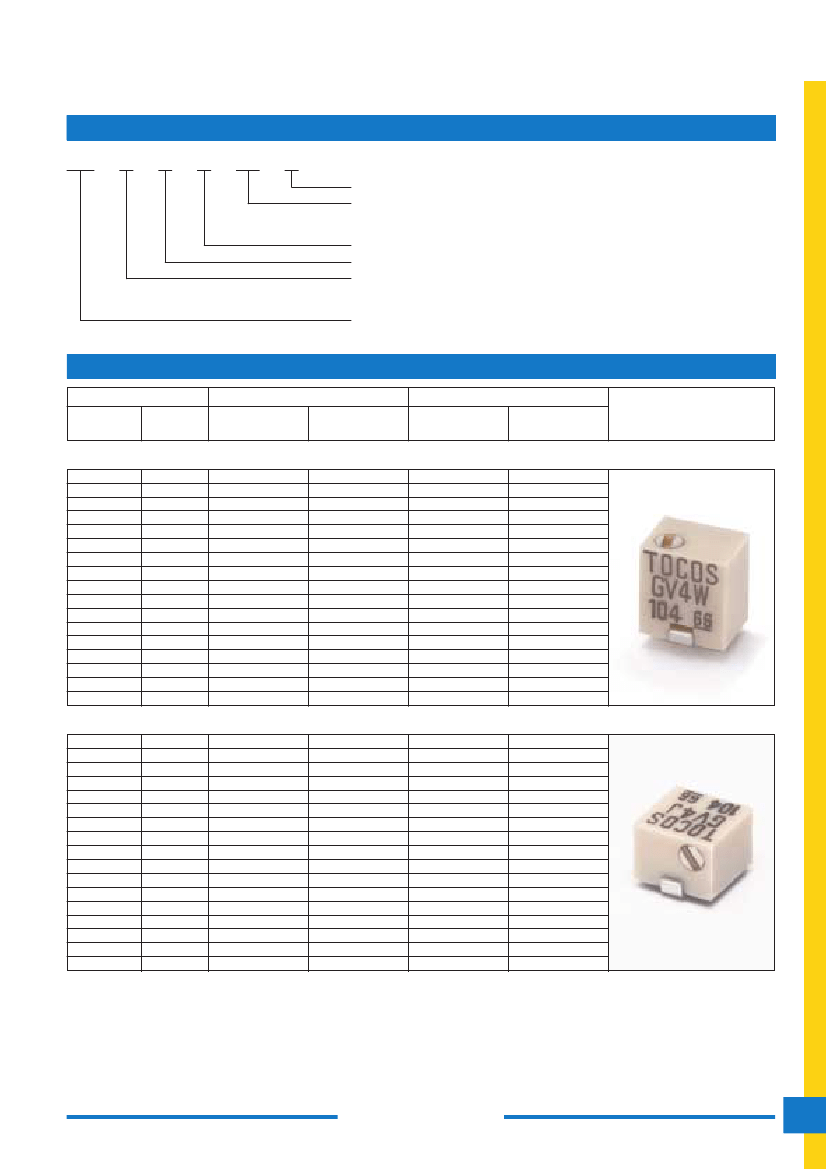

GV4W
J-Hook, Single-Slot, Top Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
2,000,000
100
200
500
101
201
102
202
502
502
103
203
503
104
204
504
105
205
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
GV4WT
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
GV4W
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
100.0
100.0
70.7
50.0
35.4
22.4
15.8
11.2
7.07
5.00
3.54
2.24
1.58
1.00
0.40
0.20
0.10
1.00
2.00
3.53
5.00
7.07
11.18
15.80
22.36
35.35
50.00
70.70
111.8
158.11
223.60
300.00
300.00
300.00
GV4W
GV4J
J-Hook, Single-Slot, Side Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
2,000,000
100
200
500
101
201
102
202
502
502
103
203
503
104
204
504
105
205
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
GV4JT
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
GV4J
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
100.0
100.0
70.7
50.0
35.4
22.4
15.8
11.2
7.07
5.00
3.54
2.24
1.58
1.00
0.40
0.20
0.10
1.00
2.00
3.53
5.00
7.07
11.18
15.80
22.36
35.35
50.00
70.70
111.8
158.11
223.60
300.00
300.00
300.00
GV4J
