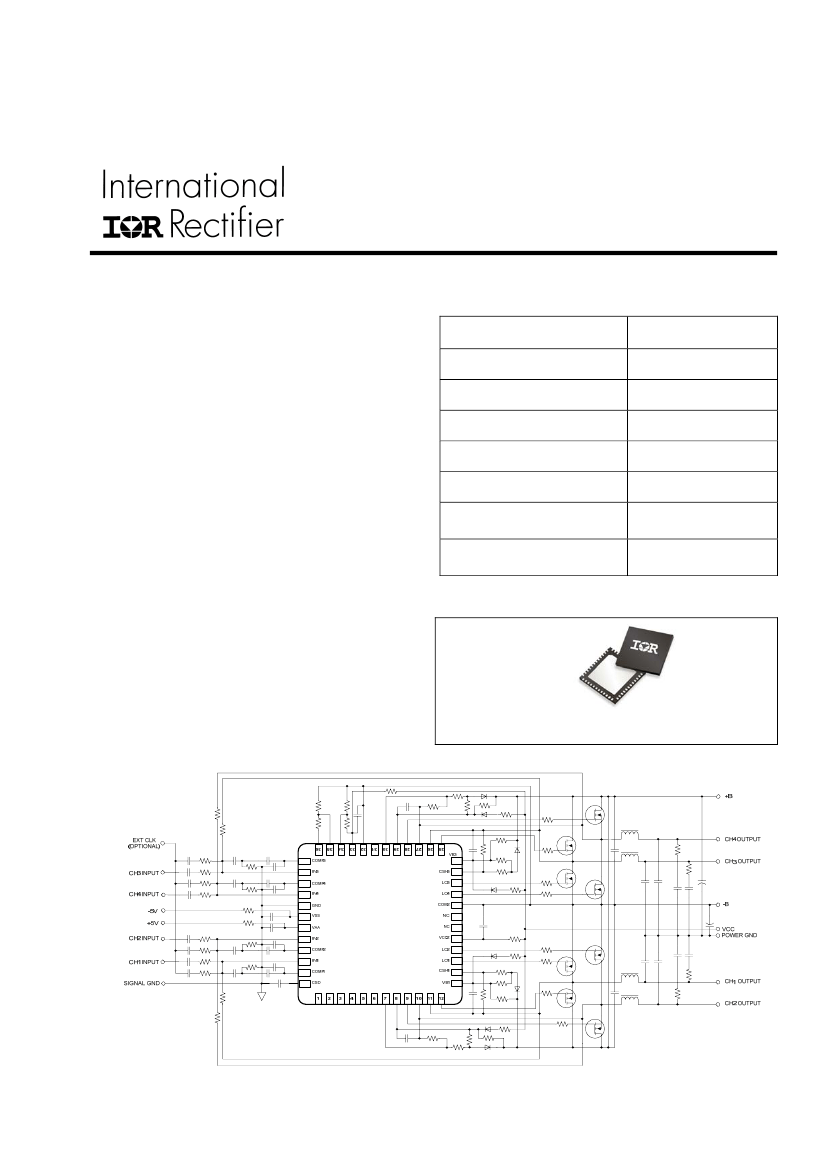

Datasheet No - PD97380
June 22, 2009
IRS2093MPbF
4 CH Digital Audio Amplifier
Features
•
•
•
•
•
•
•
•
Product Summary
Topology
V
OFFSET (max)
I
O+
& I
O-
(typical)
Selectable deadtime
DC offset
OC protection delay
Shutdown propagation
delay
Error amplifier open loop
gain
Half-Bridge and Full-
Bridge
+/- 100 V
0.5 A & 0.6 A
45/65/85/105ns
<18 mV
500ns (max)
250ns (max)
>60 dB
4 channel integrated analog input Class D
audio amplifier drivers in a 48 pin MLPQ
package
Programmable over current protection
Programmable dead-time generation
Versatile protection control enabling
latched, non-latched, or host controlled
shutdown function
Versatile input structure for self-oscillating
PWM, external clock synchronization, or
natural carrier based PWM modulations
Start and stop click noise reduction
Under voltage protection
High noise immunity
Package
MLPQ48 (7x7mm, 0.50mm pitch)
Typical Connection
VREF
CSH4
VCC
COM
HO4
OCSET
HO3
VB4
VS4
VS3
NC
DT
CSH2
HO2
VB2
VS2
VS1
www.irf.com
HO1
DS
NC
NC
NC
NC
NC
13
14
15
16
17
18
19
20
21
22
23
24
37
38
39
40
41
42
43
44
45
46
47
48
© 2009 International Rectifier
1
IRS2093MPbF
Table of Contents
Typical Connection Diagram
Qualification Information
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Functional Block Diagram
Input/Output Pin Equivalent Circuit Diagram
Lead Definitions
Lead Assignments
Application Information and Additional Details
Package Details
Tape and Reel Details
Part Marking Information
Ordering Information
Page
1
4
5
6
7
10
11
12
13
14
16
17
18
19
www.irf.com
© 2009
International Rectifier
2
IRS2093MPbF
Description
The IRS2093 integrates four channels of high voltage, high performance Class D audio amplifier drivers with
PWM modulators and protections. In conjunction with external MOSFET and external components, a
complete 4 channel Class D audio amplifier can be realized. The IRS2093 is designed with floating analog
inputs and protection control interface pin especially for half bridge topology. High and low side MOSFET are
protected from over current conditions by a programmable bi-directional current sensing. Essential elements
of PWM modulator section allow flexible system design. A small MLPQ48 package enhances the benefit of
smaller size of Class D topology.
www.irf.com
© 2009
International Rectifier
3
IRS2093MPbF
Qualification Information
Qualification Level
†
Industrial
††
Comments: This family of ICs has passed JEDEC’s
Industrial qualification. IR’s Consumer qualification level is
granted by extension of the higher Industrial level.
MSL2
†††
, 260°C
(per IPC/JEDEC J-STD-020)
Class I, Level A
(per JESD78A)
Yes
Moisture Sensitivity Level
IC Latch-Up Test
RoHS Compliant
†
††
Qualification standards can be found at International Rectifier’s web site
http://www.irf.com/
Higher qualification ratings may be available should the user have such requirements. Please contact
your International Rectifier sales representative for further information.
††† Higher MSL ratings may be available for the specific package types listed here. Please contact your
International Rectifier sales representative for further information.
www.irf.com
© 2009
International Rectifier
4
IRS2093MPbF
Absolute Maximum Ratings
Absolute Maximum Ratings indicate sustained limits beyond which damage to the device may occur. All
voltage parameters are absolute voltages referenced to COM; all currents are defined positive into any lead.
The Thermal Resistance and Power Dissipation ratings are measured under board mounted and still air
conditions.
Symbol
V
Bn
V
Sn
V
Hon
V
CSHn
V
CCn
V
LOn
V
AA
V
SS
V
GND
COM2
I
IN-n
V
CSD
V
COMPn
V
DS
V
DT
V
OCSET
I
AAZ
I
SSZ
I
CCZn
I
BSZn
I
OREF
dV
Sn
/dt
dV
SSn
/dt
Pd
Rth
JA
T
J
T
S
T
L
†
††
Definition
High side floating supply voltage
††
High side floating supply voltage , n=1-4
High side floating output voltage, n=1-4
CSH pin input voltage, n=1-4
††
Low side fixed supply voltage , n=1-2
Low side output voltage, n=1-4
††
Floating input positive supply voltage
Floating input negative supply voltage
Floating input supply ground voltage
Low side output supply return
Inverting input current , n=1-4
SD pin input voltage
COMP pin input voltage, n=1-4
DS pin input voltage
DT pin input voltage
OCSET pin input voltage
Floating input positive supply zener clamp current
(N t 2) input negative supply zener clamp current
Floating
†††
(N t 2)
Low side supply zener clamp current , n=1-2
Floating supply zener clamp current , n=1-4
Reference output current
Allowable Vs voltage slew rate, n=1-4
†††
Allowable Vss voltage slew rate , n=1-4
Maximum power dissipation @ T
A
≤
+25°C
Thermal resistance, Junction to ambient
Junction Temperature
Storage Temperature
Lead temperature (Soldering, 10 seconds)
††††
††††
†††
†
††
Min.
-0.3
V
Bn
-15
V
Sn
-0.3
V
Sn
-0.3
-0.3
-0.3
(See I
AAZ
)
-1
(See I
SSZ
)
V
SS
-0.3
(See I
SSZ
)
-0.3
-
V
SS
-0.3
V
SS
-0.3
V
SS
-0.3
-0.3
-0.3
-
-
-
-
-
-
-
-
-
-
-55
-
Max.
215
V
Bn
+0.3
V
Bn
+0.3
V
Bn
+0.3
20
VCC2 +0.3
210
GND +0.3
V
AA
+0.3
(See I
AAZ
)
+0.3
±3
V
AA
+0.3
V
AA
+0.3
V
AA
+0.3
V
CC
+0.3
V
CC
+0.3
20
20
10
10
5
50
50
6.2
20
150
150
300
Units
V
V
V
V
V
V
V
V
V
V
mA
V
V
V
V
V
mA
mA
mA
mA
mA
V/ns
V/ms
W
°C/W
°C
°C
°C
†††
††††
IN-1-4 contains clamping diode to GND.
VAA-VSS, Vcc1-COM, Vcc2-COM2, VB1-VS1, VB2-VS2, VB3-VS3 and VB4-VS4 contain
internal shunt zener diodes. Please note that the voltage ratings of these can be limited by
the clamping current.
For the rising and falling edges of step signal of 10V. Vss=15V to 200V.
According to JESD51-5. JEDEC still air chamber.
www.irf.com
© 2009
International Rectifier
5
