CDRH3D11HPNP-120NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH3D11HPNP-120NB

CDRH3D11HPNP-120NB: DescriptionGeneral Purpose Inductor, 12uH, 25%, 1 Element, Ferrite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size102KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH3D11HPNP-120NB Overview

General Purpose Inductor, 12uH, 25%, 1 Element, Ferrite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT

CDRH3D11HPNP-120NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1616
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1616
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.585 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH3D11/HP
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.1 mm
Package length	3.8 mm
Package form	SMT
Package width	3.8 mm
method of packing	Box
Maximum rated current	0.48 A
series	CDRH3D11/HP
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

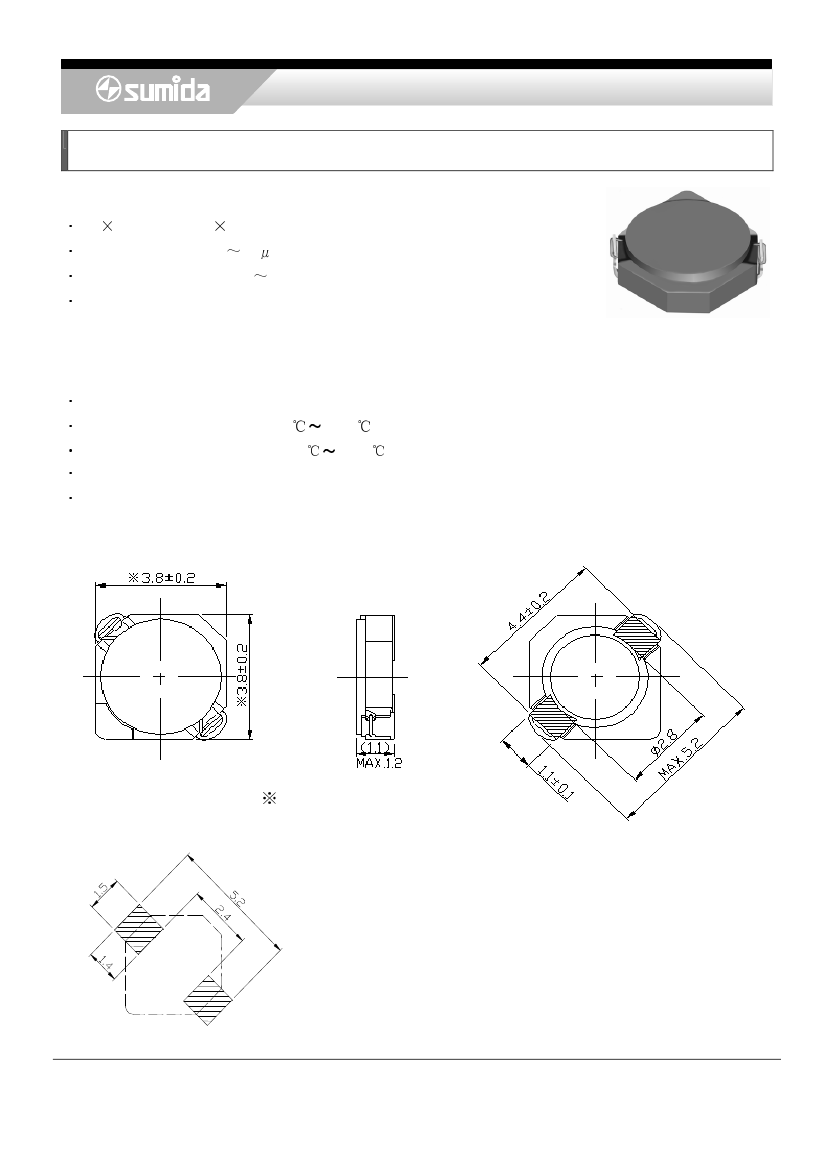

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH3D11/HP

◆

Product Description

4.0 4.0mm Max.(L W),1.2mm Max.Height.

Inductance range: 0.6 22 H.

Rated current range: 0.33 1.8A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+105 (Including coil’s self temperature rise).

Ideally used in Mobilephone,PDA,MP3,DSC/DVC,Portable DVD, etc as DC-DC converter inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

Not including terminal dimension

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

℃ ½℃

Storage temperature range: -40

※

μ ½

・

× ・

・

+105 .

1/2
