39FXZT-SM1-GAN-TF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 39FXZT-SM1-GAN-TF

39FXZT-SM1-GAN-TF: DescriptionCard Edge Connector, 39 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

39FXZT-SM1-GAN-TF Overview

Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket

39FXZT-SM1-GAN-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Other features	ZIF
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	39
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

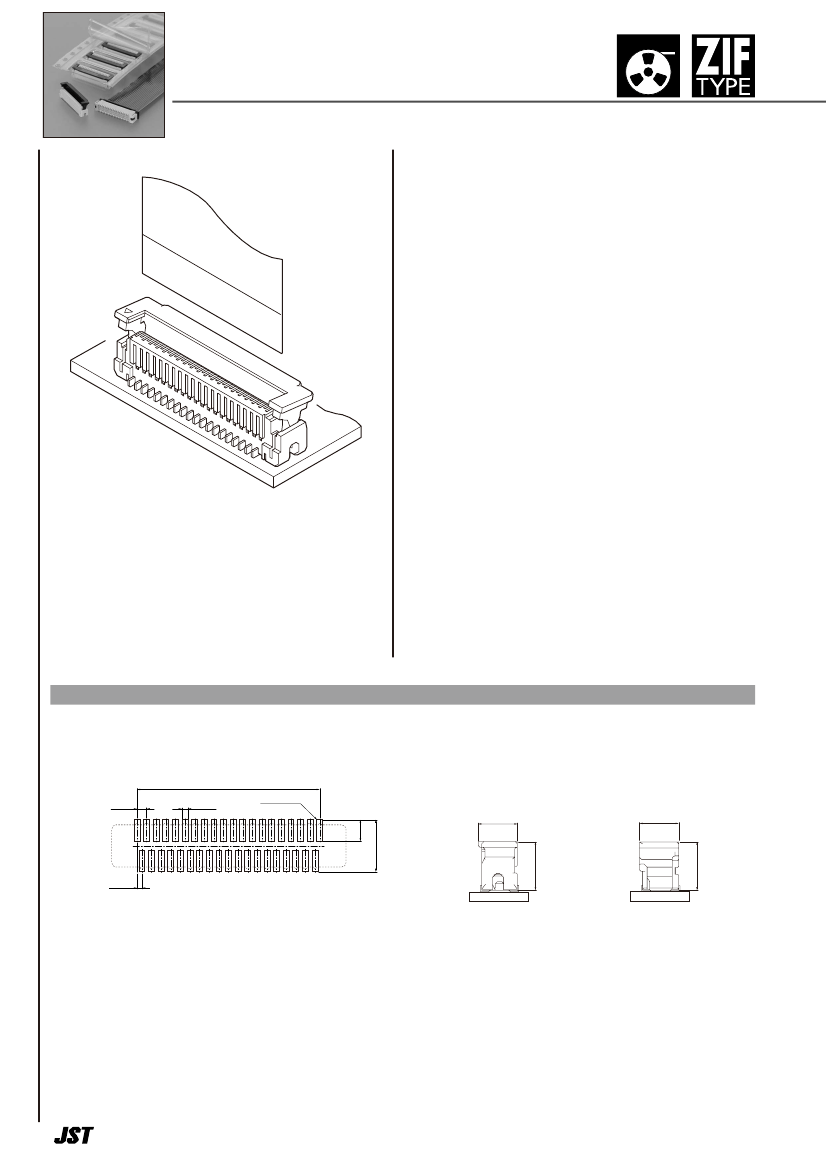

0.3mmピッチ

0.3mm pitch/Connectors for FPC

FXZT

CONNECTOR

Emboss Tape

Specifications –––––––––––––––––––

• Current rating: 0.2A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/50m

Ω

max.

(variation from initial value)

• Insulation resistance:

50M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.3mm

<0.6mm pitch staggered>

Conductor width/0.3mm

Mating part thickness/0.2±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Vertical 0.3mm pitch ZIF type connector.

This connector was mainly developed to

connect FPC and subminiature digital

products such as DVC, DSC, PDAs and so

on.

• Vertical ZIF type FPC connector

• Space saving

• Adoption of slider structure

Standards ––––––––––––––––––––––

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

±0.1

0.6

±0.05

0.3

±0.05

Circuit No.1

1.3

±0.1

Inner lock type

(39 circuits or less)

2.85

3.2

±0.1

Outer lock type

(41 circuits or more)

2.85

3.6

0.3

±0.05

Note: 1. Tolerances are non-cumulative:

0.1mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

3.6

39FXZT-SM1-GAN-TF Related Products

	39FXZT-SM1-GAN-TF	17FXZT-SM1-GAN-TF	45FXZT-SM1-GAN-TF	23FXZT-SM1-GAN-TF	21FXZT-SM1-GAN-TF	25FXZT-SM1-GAN-TF	27FXZT-SM1-GAN-TF	31FXZT-SM1-GAN-TF	33FXZT-SM1-GAN-TF	51FXZT-SM1-GAN-TF
Description	Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 31 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrie	GOLD OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	39	17	45	23	21	25	27	31	33	51
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	1	1	-	-	-
