PHOTOCOUPLER
PS9611,PS9611L
HIGH NOISE REDUCTION, HIGH-SPEED 10 Mbps
TOTEM POLE OUTPUT TYPE
−NEPOC
8-PIN DIP PHOTOCOUPLER
Series−
DESCRIPTION
The PS9611 and PS9611L are optically coupled high-speed, totem pole output isolators containing a GaAlAs LED
on the input side and a photodiode and a signal processing circuit on the output side on one chip.
The PS9611 is in a plastic DIP (Dual In-line Package) and the PS9611L is lead bending type (Gull-wing) for surface
mounting.
FEATURES
• High common mode transient immunity (CM
H
, CM
L
=
±10
kV/
µ
s TYP.)
• High-speed response (t
PHL
= 30 ns TYP., t
PLH
= 35 ns TYP.)
• Pulse width distortion (⏐t
PHL
−
t
PLH
⏐
= 5 ns TYP.)
• Totem pole output (No pull-up resistor required)
• Ordering number of tape product: PS9611L-E3, E4: 1 000 pcs/reel
• Safety standards
• UL approved: File No. E72422 (S)
• VDE0884 approved (Option) : No.91877
APPLICATIONS
• Computer and peripheral manufactures
• Measurement equipment
• PDP
Document No. PN10072EJ02V0DS (2nd edition)
Date Published February 2003 CP(K)
The mark
shows major revised points.
PS9611,PS9611L

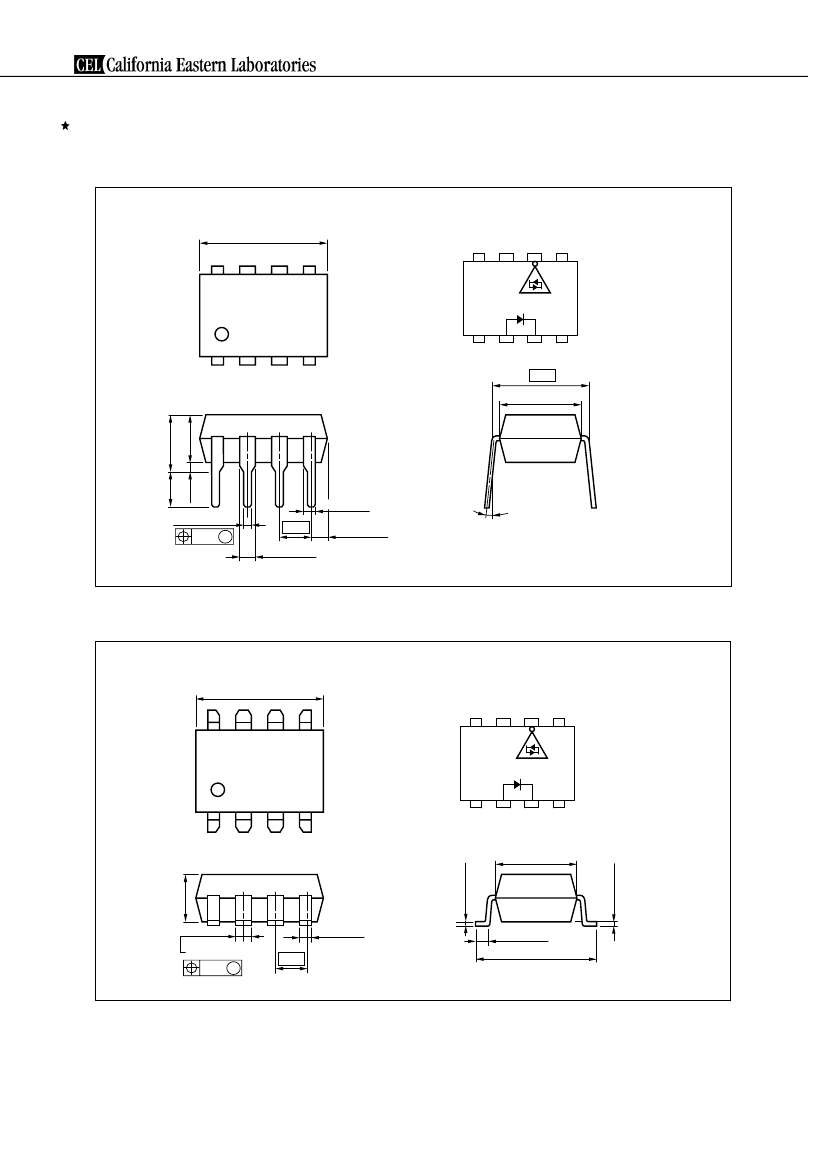

PACKAGE DIMENSIONS (UNIT: mm)
DIP Type
PS9611
9.25±0.25
8
7
TOP VIEW
6
5
1
2
3
7.62
4
1. NC
2. Anode
3. Cathode
4. NC
5. GND
6. V
O
7. NC
8. V
CC
6.5±0.5
2.8 MIN.
4.15±0.3
0.65
3.5±0.3
0.88±0.1
0.5±0.1
0 to 15˚
0.25 M
2.54
0.84±0.43
1.25±0.15
Lead Bending Type
PS9611L
9.25±0.25
TOP VIEW
8
7
6
5
1
2
3
4
1. NC
2. Anode
3. Cathode
4. NC
5. GND
6. V
O
7. NC
8. V
CC
6.5±0.5
3.5±0.3
0.25
+0.1
–0.05
0.88±0.1
0.9±0.25
9.60±0.4
1.25±0.15
0.25 M
2.54
2
Data Sheet PN10072EJ02V0DS
0.1
+0.1
–0.05
PS9611,PS9611L
INTERNAL OUTPUT CIRCUIT
V
CC
(8)
Vo (6)
GND (5)
LED
ON
OFF
Output
L
H
MARKING EXAMPLE
No. 1 pin
Mark
PS9611
M003
Country Assembled
Type Number
Assembly Lot
M 0 03
Week Assembled
Year Assembled
(Last 1 Digit)
Rank Code
Data Sheet PN10072EJ02V0DS
3
PS9611,PS9611L
ORDERING INFORMATION (Solder Contains Lead)
Part Number
PS9611
PS9611L
PS9611L-E3
PS9611L-E4
PS9611-V
PS9611L-V
PS9611L-V-E3
PS9611L-V-E4
Embossed Tape 1 000 pcs/reel
Magazine case 50 pcs
VDE0884 approved
(Option)
PS9611
PS9611L
Embossed Tape 1 000 pcs/reel
Package
8-pin DIP
Packing Style
Magazine case 50 pcs
Safety Standards
Approval
Approved products
other than VDE
Application Part
*1
Number
PS9611
PS9611L
*1
For the application of the Safety Standard, following part number should be used.
ORDERING INFORMATION (Pb-Free)
Part Number
PS9611-A
PS9611L-A
PS9611L-E3-A
PS9611L-E4-A
PS9611-V-A
PS9611L-V-A
PS9611L-V-E3-A
PS9611L-V-E4-A
Embossed Tape 1 000 pcs/reel
Magazine case 50 pcs
VDE0884 approved
(Option)
PS9611
PS9611L
Embossed Tape 1 000 pcs/reel
Package
8-pin DIP
Packing Style
Magazine case 50 pcs
Safety Standards
Approval
Approved products
other than VDE
Application Part
*1
Number
PS9611
PS9611L
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10072EJ02V0DS
PS9611,PS9611L
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Forward Current
Reverse Voltage
Detector
Symbol
I
F
V
R
V
CC
V
O
*1
*1
Ratings
30
3.0
7
7
−5
25
150
3 750
−40
to +85
−55
to +125
Unit
mA
V
V
V
mA
mA
mW
Vr.m.s.
°C
°C
Supply Voltage
Output Voltage
High Level Output Current
I
OH
I
OL
P
C
BV
T
A
T
stg
Low Level Output Current
Power Dissipation
Isolation Voltage
*3
*1, 2
Operating Ambient Temperature
Storage Temperature
*1
T
A
=
−40
to +85°C
*2
Applies to output pin V
O
and power supply pin V
CC.
*3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
RECOMMENDED OPERATING CONDITIONS
Parameter
High Level Input Current
Low Level Input Current
Supply Voltage
TTL (loads)
Symbol
I
FH
I
FL
V
CC
N
MIN.
7.5
0
4.5
5.0
TYP.
MAX.
12.5
250
5.5
5
Unit
mA
µ
A
V
Data Sheet PN10072EJ02V0DS
5
