CH1125645-A2-FREQTS-OUT23 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CH1125645-A2-FREQTS-OUT23

CH1125645-A2-FREQTS-OUT23: DescriptionCMOS/TTL Output Clock Oscillator, 1.8432MHz Min, 100MHz Max; CategoryPassive components oscillator; File Size44KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CH1125645-A2-FREQTS-OUT23 Overview

CMOS/TTL Output Clock Oscillator, 1.8432MHz Min, 100MHz Max

CH1125645-A2-FREQTS-OUT23 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e3
Manufacturer's serial number	CH11
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	1.8432 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	13.2mm x 13.2mm x 5.6mm
longest rise time	7 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

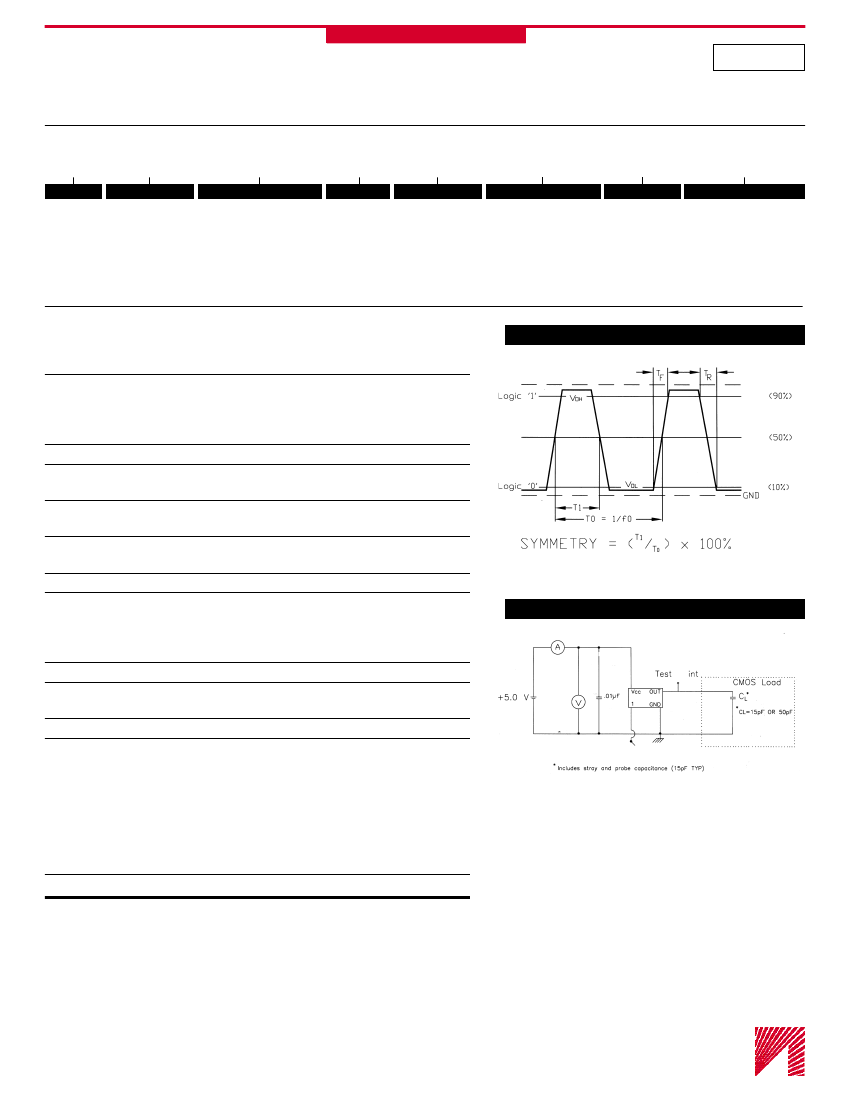

CARDINAL COMPONENTS

Crystal Clock Oscillator

• 50 pf load capable

• TTL and CMOS compatible

• 3.3 VDC input available

• Optional tristate

Series CH11

Part Numbering Example: CH11 00 4 L 45 - A2 - 50.0 TS

CTH11

SERIES

CTH11

STABILITY

00 = ±100 ppm

50 = ± 50 ppm

25 = ± 25 ppm

10 = ± 10 ppm

PACKAGE STYLE

= Full Size

= Full Size, Gull Wing

= Half Size

= Half Size, Gull Wing

VOLTAGE

Blank = 5V

L = 3.3V

50.0

FREQUENCY

Blank = No Connection

TS = Tristate, pin 1

OPERATING TEMP.

SYMMETRY

Blank = 40/60% Blank = 0°C ~ +70°C

A2 =-40°C ~ +85°C

45 = 45/55%

Specifications:

Frequency Range:

1.8432 MHz to 100.000 MHz

OUTPUT WAVE FORM

Standard

Available Stability Options:

±100 ppm

±50 ppm

±25 ppm

±10 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

TTL/CMOS

+5.0 VDC ±10%

+3.3 VDC ±10%

-10°C to +70°C

-40°C to +85°C

Standard

HCMOS V

= 10% V

V Max.

HCMOS V

= 90% V

V Min.

10 TTL, 50 pf CMOS

(1.8432

(25.000

(50.000

(70.000

24.999 MHz)

49.999 MHz)

69.999 MHz)

100.000 MHz)

TEST CIRCUIT

Maximum Rise/Fall Time:

Duty Cycle:

Max. Start-Up Time:

Tristate Input:

7 ns

40/60%

45/55%

10 ms

@+5 VDC Input

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or Open to Enable

@+3.3 VDC Input

+0.80 VDC Max. to Disable

+2.20 VDC Min. to Enable

or open to Enable

-55°C to +125°C

Standard

Storage Temperature:

Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053

http://www.cardinalxtal.com

E-Mail: cardinal@cardinalxtal.com
