CY7C332-30HMB datasheet, PDF - EEWORLD Datasheet

CY7C332-30HMB: DescriptionUV PLD, 30ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size368KB，10 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

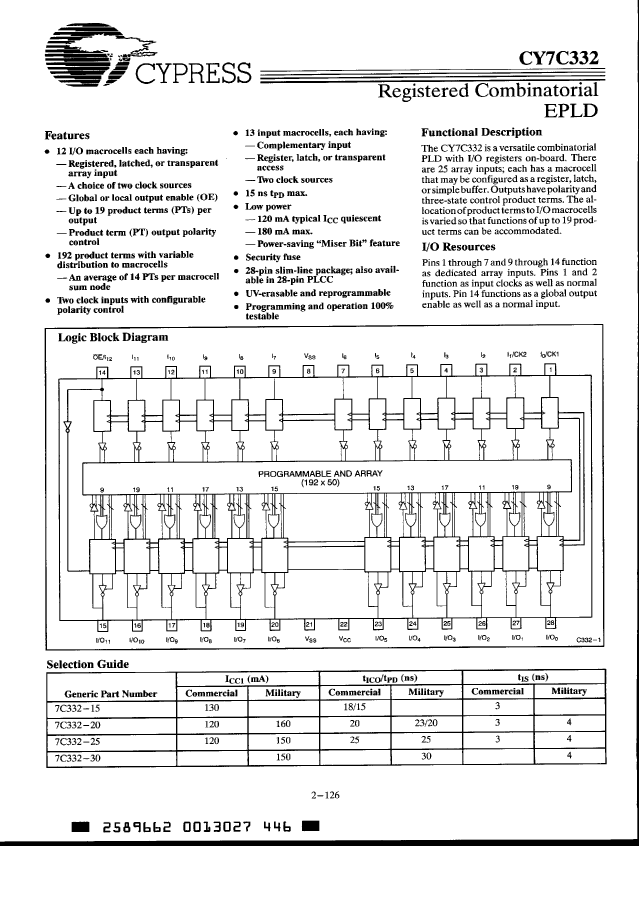

CY7C332-30HMB Overview

UV PLD, 30ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	WINDOWED, CERAMIC, LCC-28

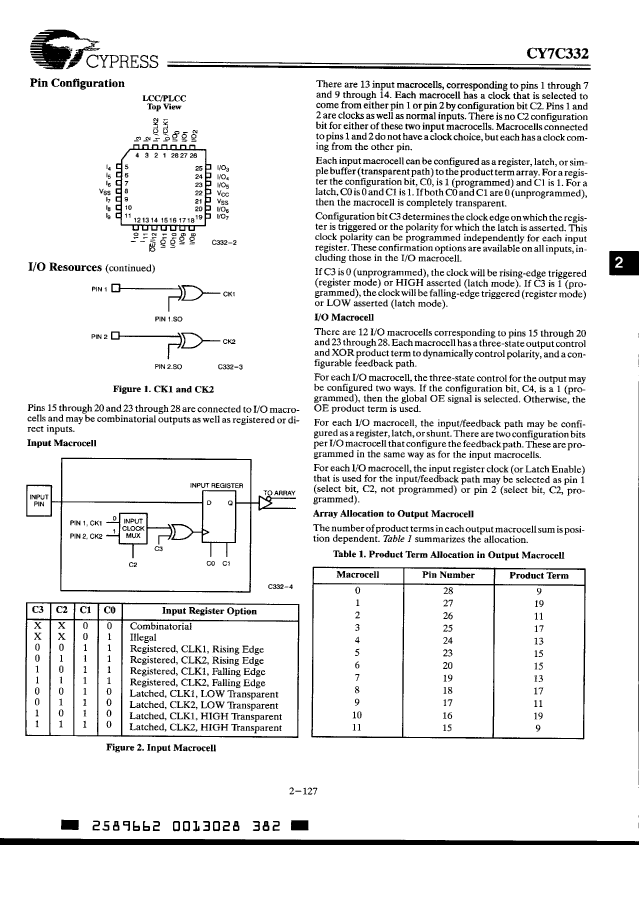

Contacts	28
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Other features	12 I/O MACROCELLS; 2 EXTERNAL CLOCKS; VARIABLE PRODUCT TERMS; SHARED INPUT/CLOCK
Architecture	PAL-TYPE

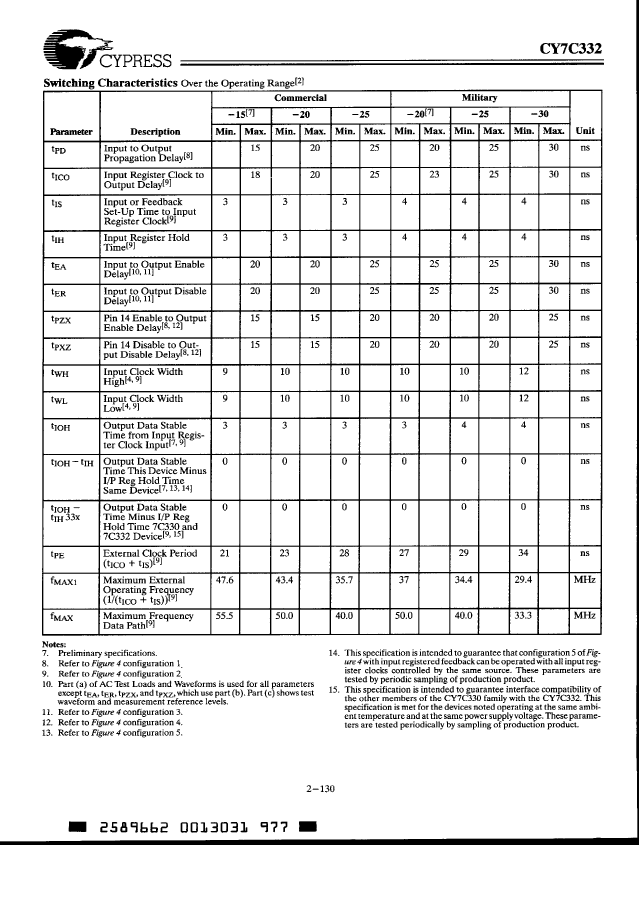

maximum clock frequency	29.4 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	10
Number of I/O lines	12
Number of entries	25
Output times	12
Number of product terms	192
Number of terminals	28

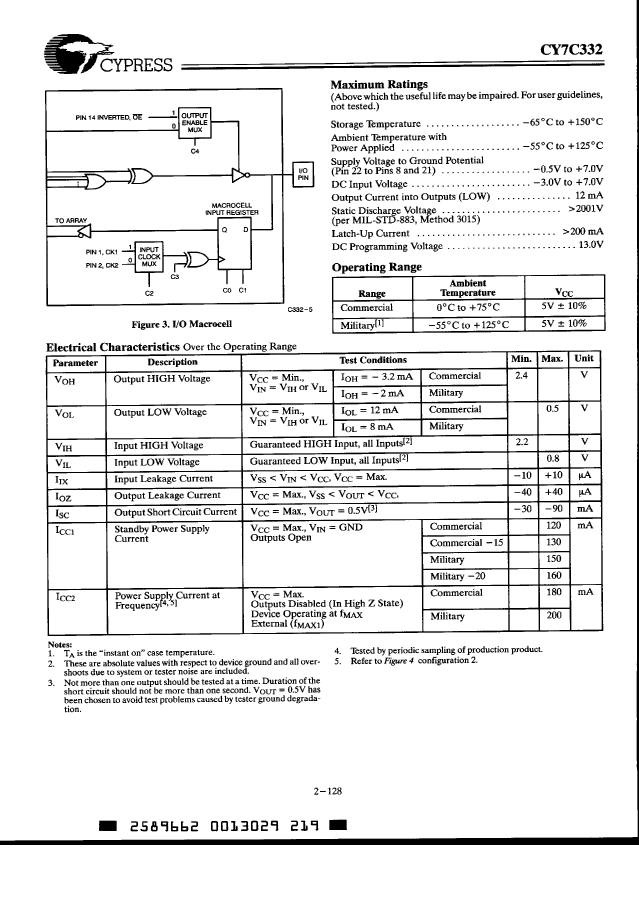

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	UV PLD

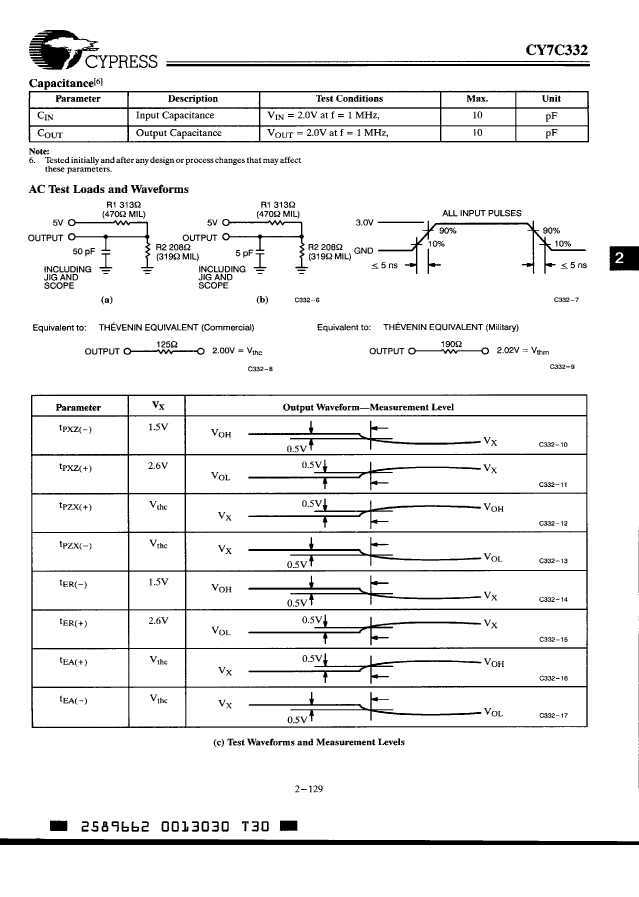

propagation delay	30 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.8956 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm

This Material Copyrighted By Its Respective Manufacturer
