PI74FCT162344CTVX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> PI74FCT162344CTVX

Preview

PI74FCT162344CTVX: DescriptionBus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56; Categorylogic logic; File Size152KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74FCT162344CTVX Overview

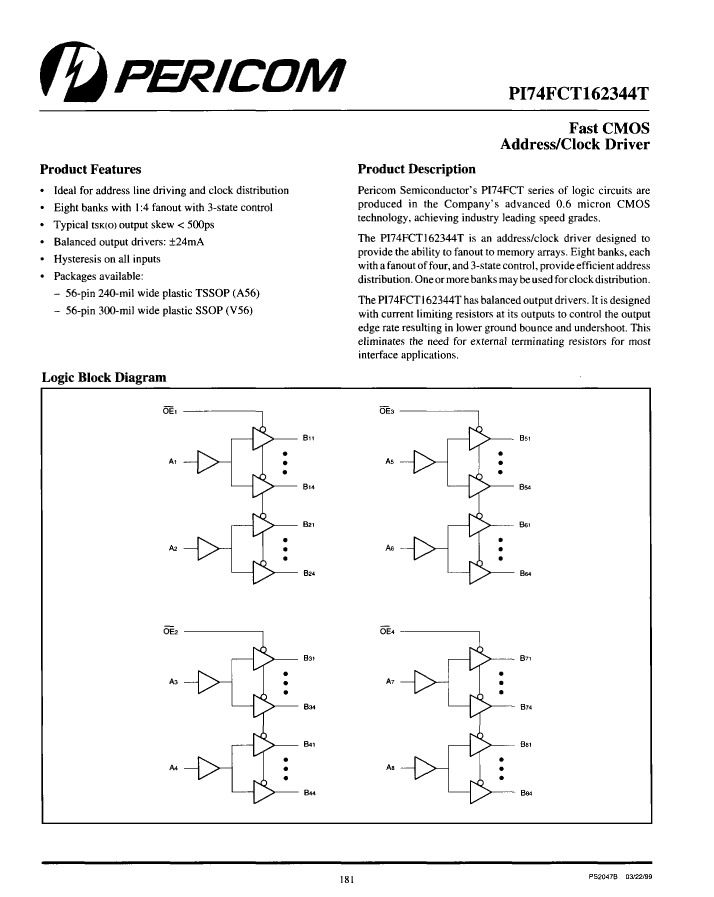

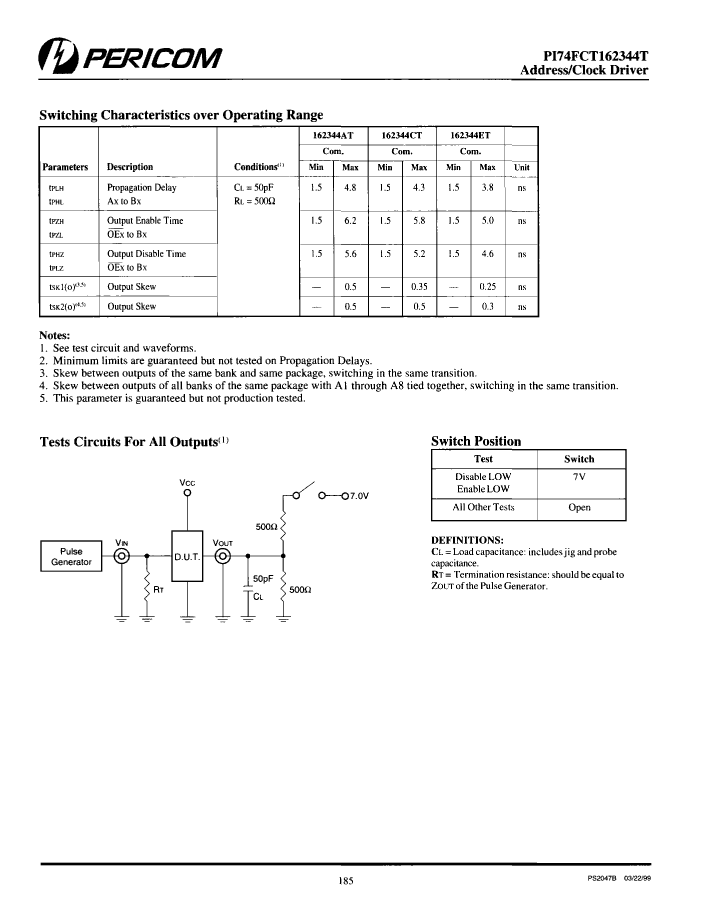

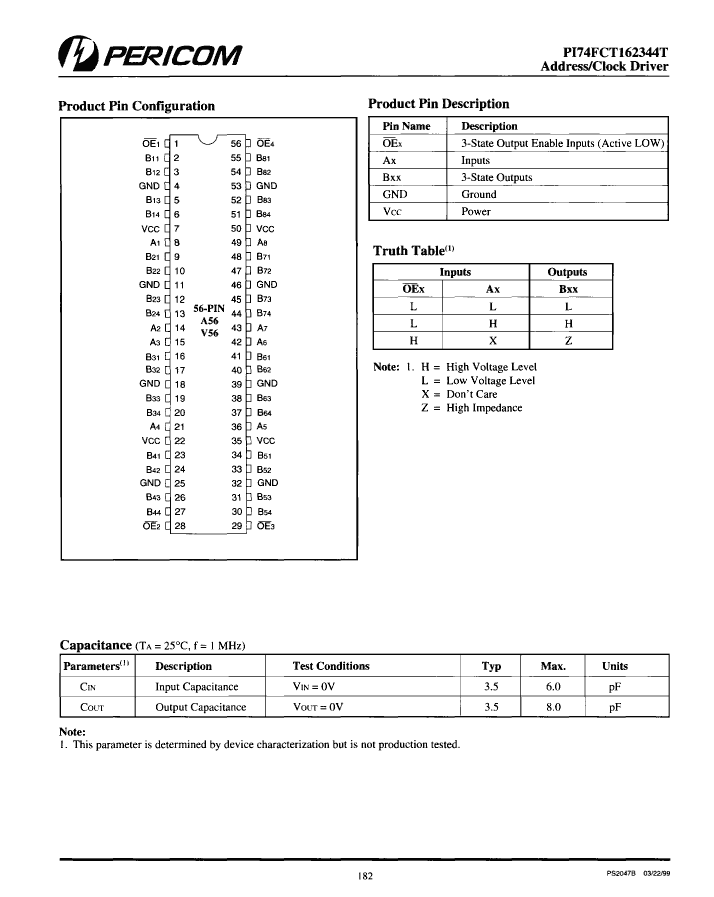

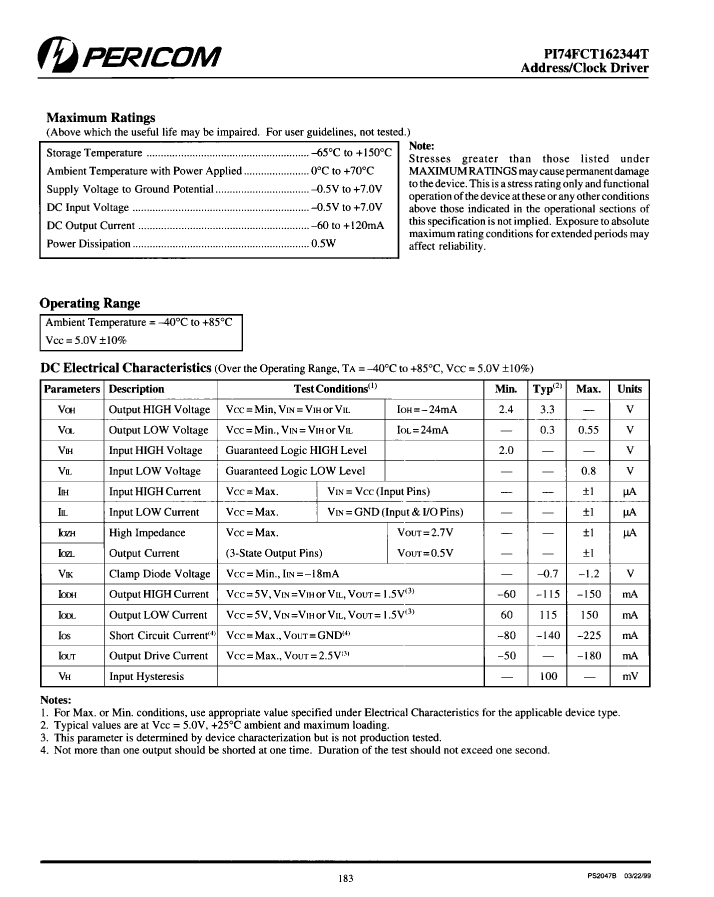

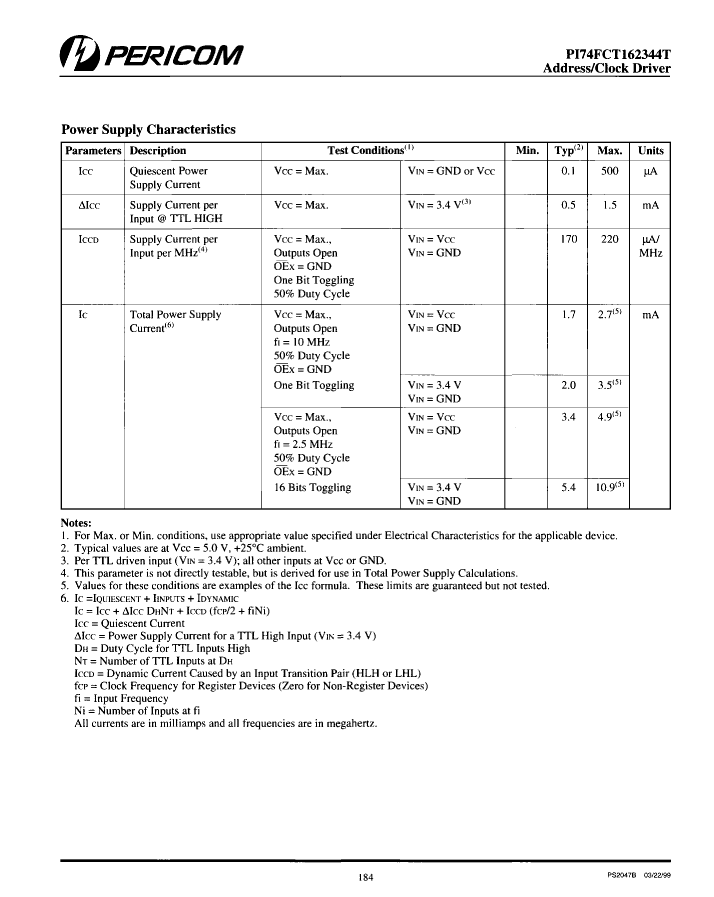

Bus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56

PI74FCT162344CTVX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	56
Reach Compliance Code	unknown
ECCN code	EAR99
series	FCT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	18.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of functions	8
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.74 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm

Preview

Download Datasheet

View All

PI74FCT162344CTVX Related Products

	PI74FCT162344CTVX	PI74FCT162344ATVX	PI74FCT162344ETVX	PI74FCT162344ETAX	PI74FCT162344ATAX	PI74FCT162344CTAX
Description	Bus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56	Bus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56	Bus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56	Bus Driver, FCT Series, 8-Func, CMOS, PDSO56, 0.240 INCH, 0.50 MM PITCH, PLASTIC, TSSOP-56	Low Skew Clock Driver, FCT Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO56, 0.240 INCH, 0.50 MM PITCH, PLASTIC, TSSOP-56	Low Skew Clock Driver, FCT Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO56, 0.240 INCH, 0.50 MM PITCH, PLASTIC, TSSOP-56
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP	SSOP	SSOP	TSSOP	TSSOP	TSSOP
package instruction	SSOP,	SSOP,	SSOP,	TSSOP,	TSSOP,	TSSOP,
Contacts	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e3	e3	e0	e0
length	18.415 mm	18.415 mm	18.415 mm	14 mm	14 mm	14 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Number of functions	8	8	8	8	8	8
Number of terminals	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	TSSOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.74 mm	2.74 mm	2.74 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	6.1 mm	6.1 mm	6.1 mm
