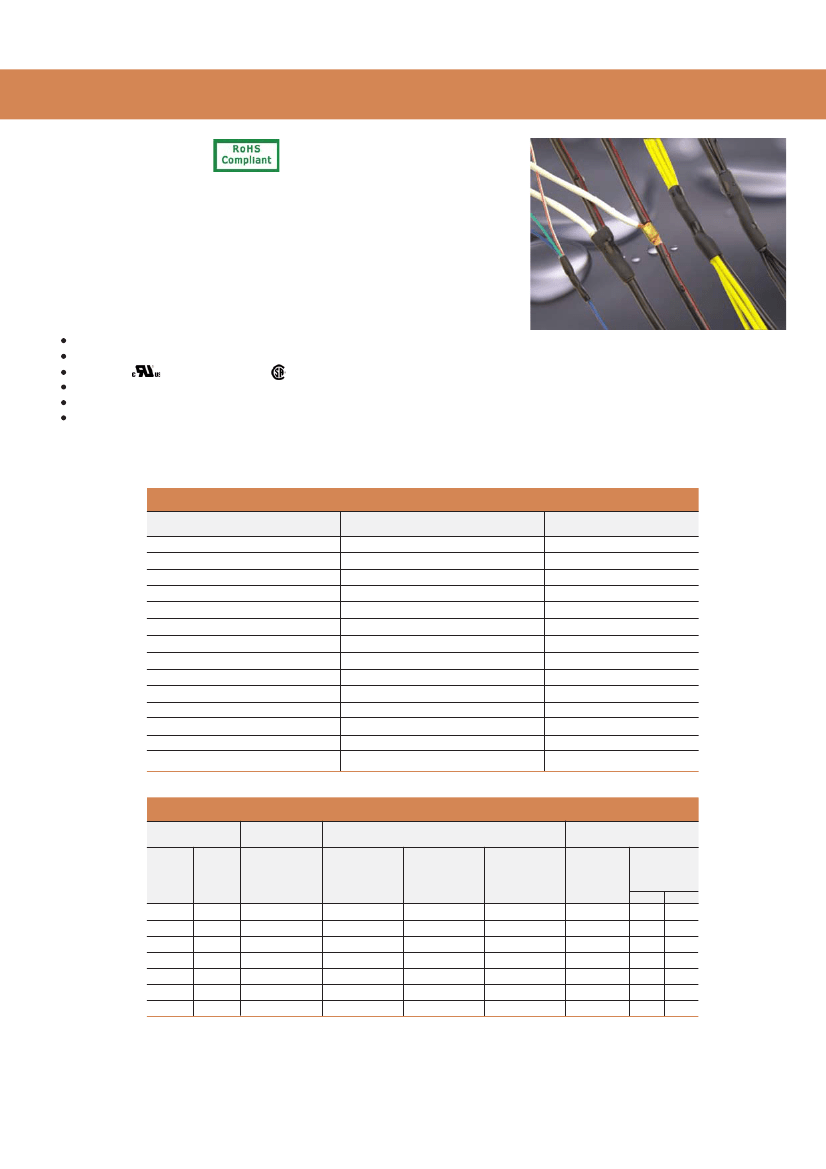

HEAT SHRINK MEDIUM / HEAVY WALL TUBING - ADHESIVE LINED
Qualtek Electronics
Q5-F4X
DUAL WALL, ADHESIVE LINED, FLEXIBLE POLYOLEFIN TUBING
SHRINK RATIO 4:1
Features/Applications
Q5-F4X is manufactured by co-extrusion of polyolefin and meltable
adhesive. It is designed to provide insulation and a tight seal for
protected articles. Typical applications are environmental sealing
of electrical components such as wire splices and harnesses in
the automotive and communication industry.
Operating temperature: -55°C
to +125°C
Minimum shrink temperature: 100°C
Approval:
File No. E236137,
242540, 125°C, VW-1, 600V
Meets: SAE-AMS-DTL-23053/4, Sony-SS-00259
Standard color: Black
RoHS Compliant
Technical Data
Property
Tensile Strength
Tensile Strength After Aging (158°C,
168 hrs.)
Elongation at Break
Elongation at Break After Aging (158°C,
168 hrs.)
Longitudinal Shrinkage
Heat Shock
Cold Bend (-30°C,
1hr.)
Voltage Withstand, (AC 2500V, 60 seconds)
Volume Resistance
Flammability
Copper Corrosion (158°C,
168 hrs.)
Water Absorption
Adhesive to Aluminum
Fluid Resistance
Test Method
ASTM D 2671
ASTM D 2671
ASTM D 2671
ASTM D 2671
UL 224
225°C,
4 hrs.
ASTM D 2671
ASTM D 2671
ASTM D 876
SAE-AMS-DTL-23053/4
UL 224
ASTM D 570
ASTM D 2671
Tensile Strength: 7MPa (min.),
Elongation: 300% (min.)
Typical Data
10.4 MPa (min.)
Remains 70%
300% (min.)
150% (min.)
0 to -10%
No cracking, no dropping
No cracking
No breakdown
> 10
14
Ω
.cm (min.)
Self extinguish in 30 seconds
Pass
<
0.5%
60N/25mm
24hrs. at 23°C
in Diesel and
Lubricating Oil
Product Dimensions
Size
As Supplied
(mm)
mm
4/1
8/2
12/3
16/4
24/6
32/8
52/13
Inside Diameter
(min.)
4
8
12
16
24
32
52
After Recovered (mm)
Inside Diameter
(max.)
1
2
3
4
6
8
13
Total Wall
Thickness
(nom.)
1.00
1.00
1.40
1.60
2.15
2.40
2.40
Adhesive
Thickness
(nom.)
0.5
0.5
0.6
0.8
0.8
1.0
1.0
Standard Packaging
Standard
Spool
*(SS)
(Meter)
100
50
25
25
25
25
-
Cut to
Length Pcs.
*(QB)
Qty per bag
48”
6”
24
18
14
14
8
5
3
25
25
5
5
5
5
5
Inch
3/16
5/16
1/2
5/8
1
1 1/4
2
Notes:
1.
* See Part Number Guide for standard packaging codes.
2.
Special sizes, packaging, colors and cut pieces are available upon request.
