1.8mm TRI-LEVEL LED INDICATOR
P/N: L-4060XH/3YD
YELLOW
Features
PRE-TRIMMED LEADS FOR PC MOUNTING.
I.C. COMPATIBLE.
BLACK CASE ENHANCES CONTRAST RATIO.
WIDE VIEWING ANGLE.
HIGH RELIABILITY LIFE MEASURED IN YEARS.
UL RATING : 94V-0.
HOUSING MATERIAL: TYPE 66 NYLON.
RoHS COMPLIANT.
Description
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA6282
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: NOV/12/2005
DRAWN: Y.L.LI
PAGE: 1 OF 3

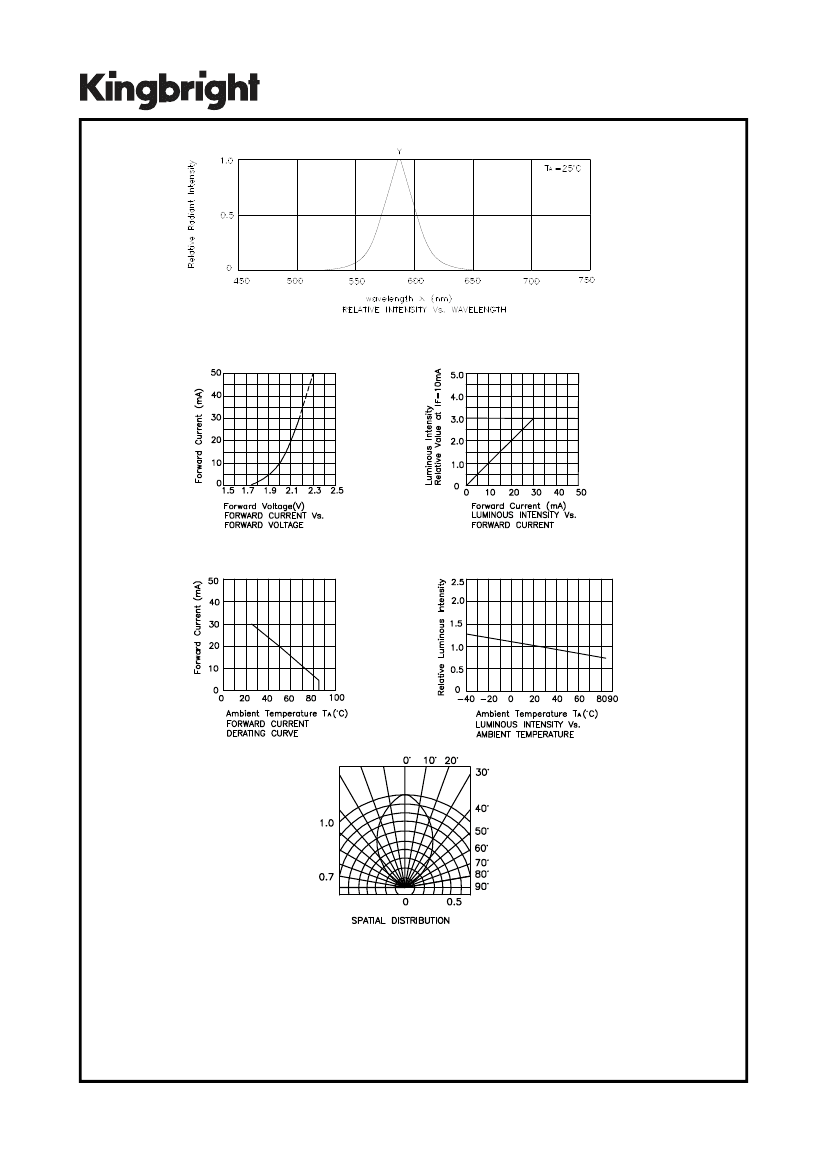

Selection Guide
Iv (mcd)
@ 10mA
Min.
L-4060XH/3YD
YELLOW (GaAsP/GaP)
YELLOW DIFFUSED
1.8
Typ.
5
Viewing
Angle
2θ1/2
θ
70
°
Part No.
Dice
Lens Type
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Device
Typ.
590
588
35
20
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Yellow
105
30
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAA6282
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: NOV/12/2005
DRAWN: Y.L.LI
PAGE: 2 OF 3
Yellow
L-4060XH/3YD
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAA6282
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: NOV/12/2005
DRAWN: Y.L.LI
PAGE: 3 OF 3
