L200CWPB3KB-15D
468nm Pure Blue
5mm, Dome, 8.6mm Height
15° viewing angle
__._ lumens per Watt
(If = 20mA, Ta = 25°C)
DWG BY:
LL / JAG
09-18-06
CHK BY:
PL
09-27-06
QA:
__
__-__-__
MFG:
__
__-__-__
REVISION —
09-18-06
Part No.
L200CWPB3KB-15D
DWG NO.
DSDC0469
Page
1 of
4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Features:
•
•
•
•
High intensity
5mm diameter package
Tinned leads
Pb-free
Package Dimensions:
Part No.
L200CWPB3KB-15D
Chip Material
InGaN
Lens Color
Water Clear
Emission Color
Super Bright Blue
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010”) unless otherwise noted.
3. Protruded resin under flange is 1.0mm (.04”) max.
4. Lead spacing is measured where the leads emerge from the package.
5. Specifications are subject to change without notice.
6. Precautions for ESD: Static electricity and surge can damage the LED. It is recommended
to use a wristband or anti-electrostatic glove when handling the LED. All devices,
equipment and machinery must be properly grounded.
Part No.
L200CWPB3KB-15D
DWG NO.
DSDC0469
Page
2 of 4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Absolute Maximum Ratings at Ta=25ºC
Parameter
Power Dissipation
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Derating Linear From 50ºC
Reverse Voltage
Electrostatic Discharge (ESD)
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature[4mm(.157”) From Body]
MAX.
80
100
20
0.4
5
150
-30ºC to +80ºC
-40ºC to +100ºC
260ºC for 5 Seconds
Max.
---
---
---
---
---
4.0
50
---
---
62
---
Unit
mW
mA
mA
mA/ºC
V
V
Electrical Optical Characteristics at Ta=25ºC
Parameter
Luminous Intensity
Viewing Angle
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Forward Voltage
Reverse Current
SCP
Lumens
Radiant Intensity
Symbol
I
V
2
θ
1/2
λp
λ
d
∆λ
-
V
F
I
R
---
---
Min.
3300
---
---
---
---
---
---
---
---
---
Typ.
4500
15
460
468
28
3.2
---
Unit
mcd
Deg
nm
nm
nm
V
µA
cd
lm
mW/sr
Test Condition
I
F
=20mA (Note 1)
(Note 2)
I
F
=20mA
I
F
=20mA (Note 3)
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
e
Chromaticity Coordinates
x: ~0.14 y: ~0.05
I
F
=20mA
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the
CIE eye-response curve.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the
single wavelength which defines the color of the device.
4. Forward voltage measurement allowance is: ±0.1V
5. Luminous Intensity Measurement Allowance is ±10%
Part No.
L200CWPB3KB-15D
DWG NO.
DSDC0469
Page
3 of 4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com

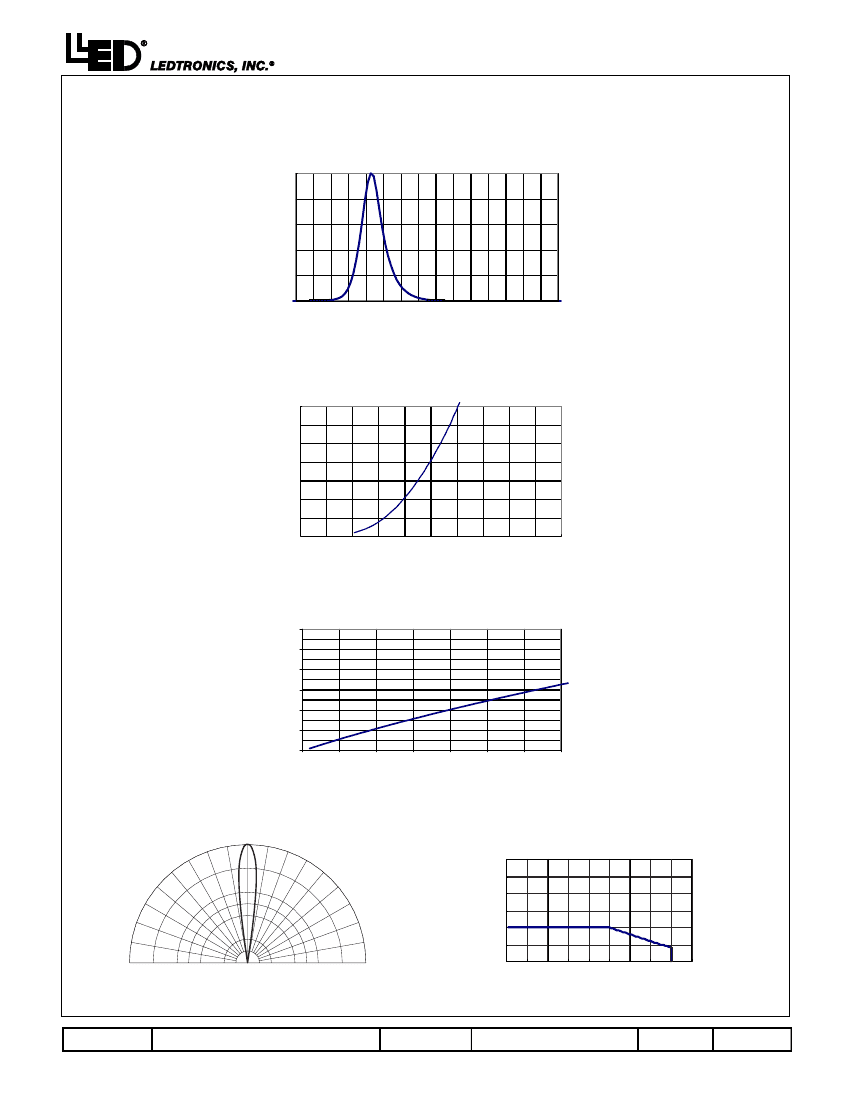

Typical Electrical / Optical Characteristics Curves
(25ºC Ambient Temperature Unless Otherwise Noted)
S p ec tral R ad ian ce ( P ea k @ 468 nm)
1. 0
0. 8
Normalized
Response
0. 6
0. 4
0. 2
0. 0
38 0
40 0
420
440
460
480
500
52 0
54 0
560
580
600
620
640
660
680
Wavelength (nm)
Forward Current
vs Forward Voltage
35
30
25
20
15
10
5
0
2.5
Forward Current
IF(mA)
2.7
2.93
.13
.3
3.5
3.73
.94
.14
.3
4.5
Forward Voltage VF(V)
Relative L um in ous In tensity
vs F orw ard Curre nt
3
Relative Intensity
(LOP@20mA=1)
2. 5
2
1. 5
1
0. 5
0
0
5
10
15
20
25
30
35
Forw ard C urre nt IF(m A)
Beam Pattern
0
°
-30
°
30
°
Forw ard Current
Derating Curve
60
Forward Current
IF(mA)
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
-60
°
60
°
-90
°
1.0
0.8
0.6
0.4
0.2
0.2
0.4
0.6
0.8
1.0
90
°
Relative Intensity (LOP@M AX=1)
Ta (ºC)
Part No.
L200CWPB3KB-15D
DWG NO.
DSDC0469
Page
4 of 4
