7.6mmX7.6mm SUPER FLUX LED LAMP
Part Number: L-7676CQBC-G
Blue
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
Super flux output.
Design for high current operation.
Outstanding material efficiency.
Reliable and rugged.
RoHS compliant.
Description
The Blue source color devices are made with InGaN Light
Emitting Diode.

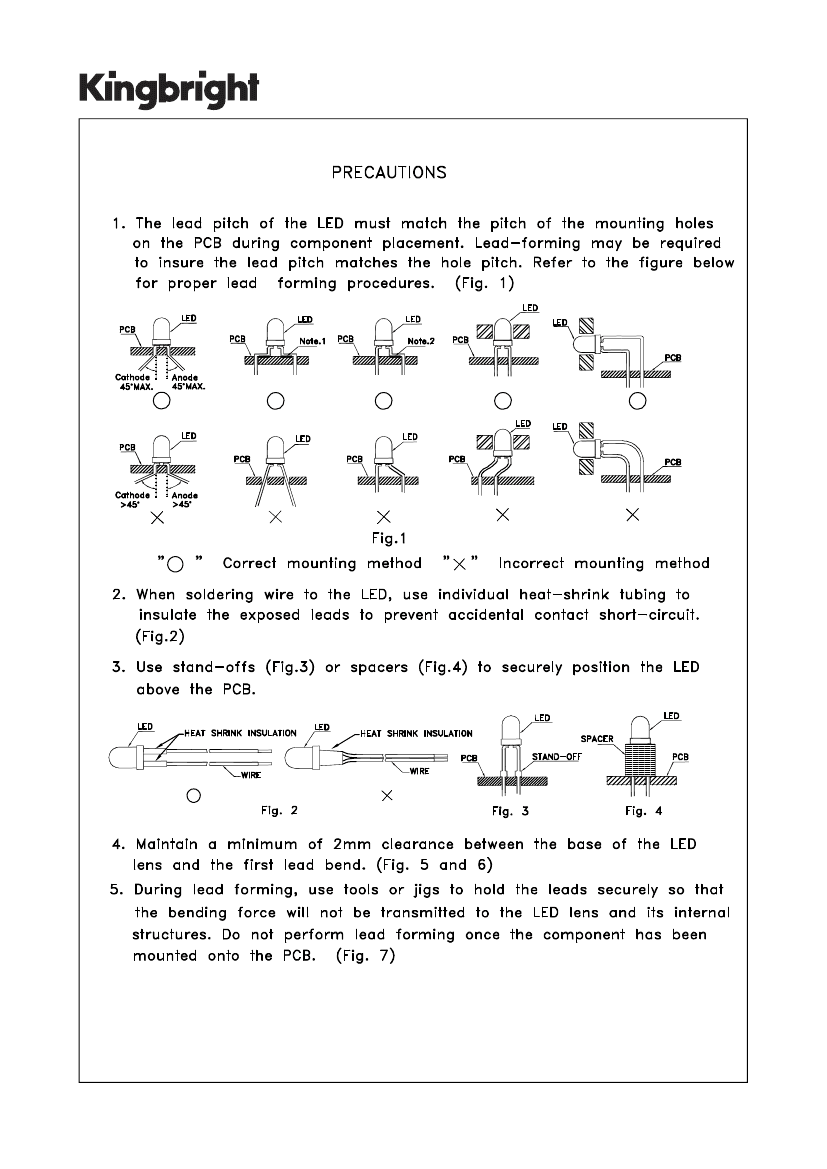

Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior
notice.
SPEC NO: DSAJ8629
APPROVED: WYNEC
REV NO: V.5B
CHECKED: Allen Liu
DATE: APR/15/2013
DRAWN: F.Cui
PAGE: 1 OF 6
ERP: 1101026733
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
L-7676CQBC-G
Blue (InGaN)
Water Clear
380
Typ.
780
Φv
(mlm) [2]
@ 20mA
Typ.
800
Viewing
Angle [1]
2θ1/2
70
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.LEDs are binned according to their Luminous intensity.
3. Drive current between 10mA and 30mA are recommended for long term performance.
4. Operation at current below 10mA is not recommended.
5. Luminous intensity/ luminous Flux value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Blue
Blue
Blue
Blue
Blue
Blue
Typ.
461
465
25
100
3.3
4
50
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Blue
120
30
150
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAJ8629
APPROVED: WYNEC
REV NO: V.5B
CHECKED: Allen Liu
DATE: APR/15/2013
DRAWN: F.Cui
PAGE: 2 OF 6
ERP: 1101026733
