THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR OR
COMMUNICATED TO A THIRD PARTY WITHOUT THE
EXPRESS WRITTEN PERMISSION OF AN OFFICER OF
QUALTEK ELECTRONICS.
REV.
DESCRIPTION

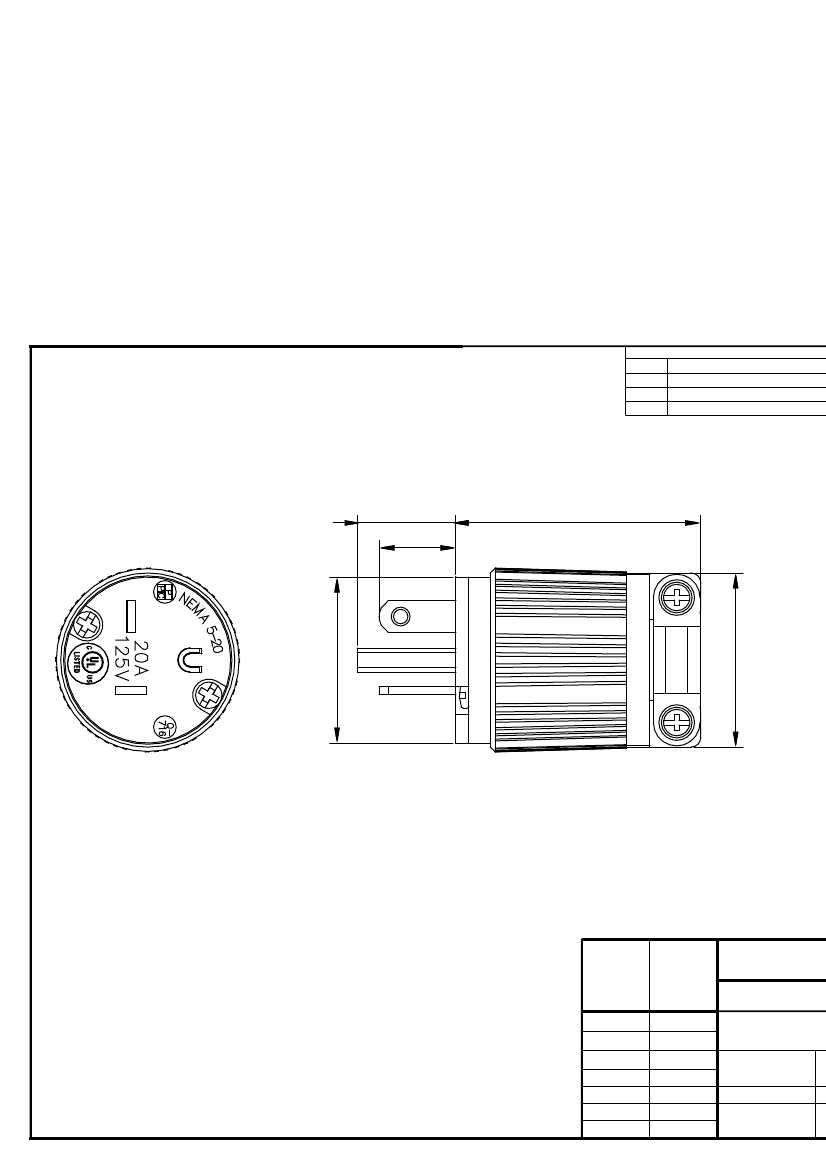

20.5 ± 0.5
16 ± 0.5
50.9 ± 2.0
Ø34.5 ± 1.0
NOTES:
1.
2.
3.
4.
RATING: 20A 125VAC
COLOR: BLACK/WHITE
CORD CLAMP: ACCEPTS 18/3 - 12/3 CABLE
TERMINAL I.D.:
A. GROUND TERMINAL SCREW GREEN AND MARKED “GR”
B. LINE TERMINAL SCREW BLACK
C. NEUTRAL TERMINAL SCREW WHITE AND MARKED WITH “W”
APPROVALS: UL/cUL LISTED: E139592
ROHS COMPLIANT
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
36.2 ± 1.0
Part Number:
Description:
Qualte
Q
NEMA
5.
6.
Drawn / Date
R.Nuti
04-15-09
