BK/C519-2-R: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 2A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size290KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/C519-2-R Overview

TIME DELAY BLOW ELECTRIC FUSE, 2A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT

BK/C519-2-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Fusing characteristics	TIME DELAY
body height	15 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	27 J
Manufacturer's serial number	C519
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 15mm
Rated breaking capacity	100 A
Rated current	2 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

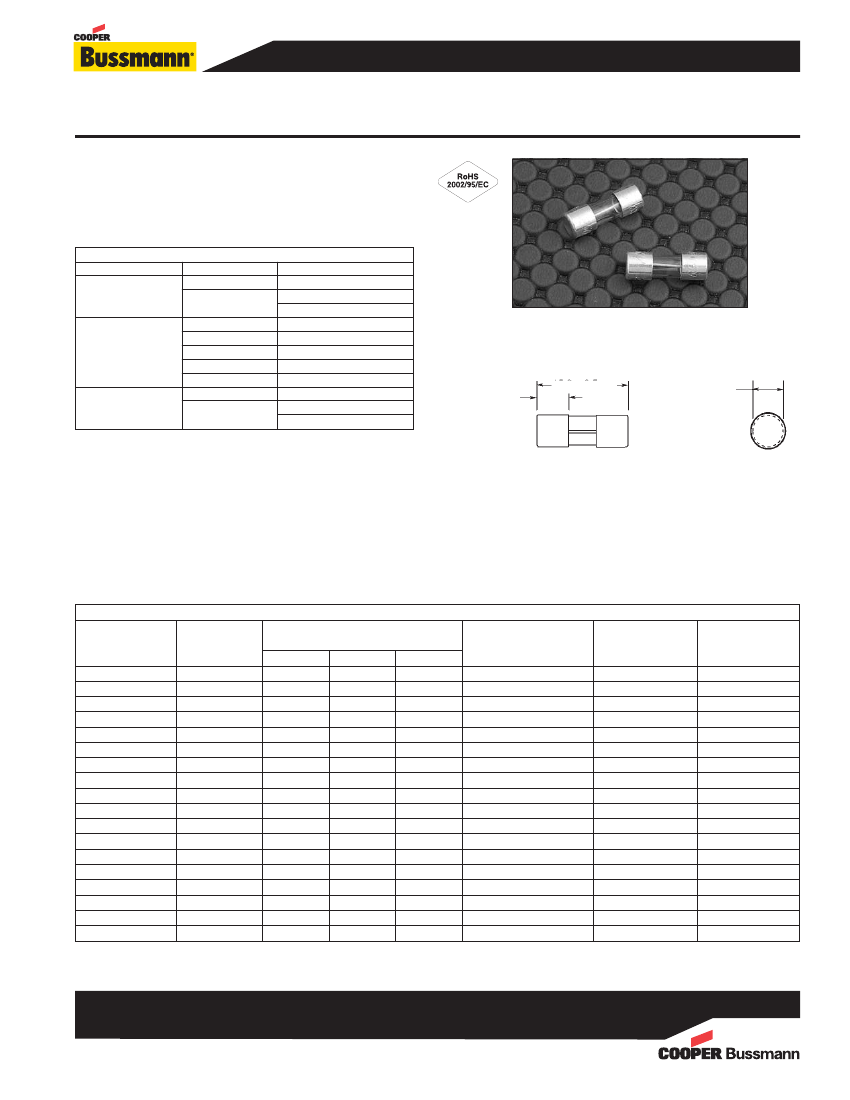

5 x 15mm Time-Delay Glass Tube Fuses

C519 Series

Description

• Time-delay

• 5 x 15mm physical size

• Nickel-plated brass endcap construction

• UL Listed product meets standard UL 248-14

Electrical Characteristics

Rated Current

Amp Rating

Opening Time

135%

60 minutes max.

125mA - 250mA

3 seconds min.

200%

120 seconds max.

100%

4 hours min.

470mA

30 minutes max.

350mA

600mA

90 seconds max.

2A

2 seconds max.

6A

500 milliseconds max.

135%

60 minutes max.

375mA - 5A

3 seconds min.

200%

120 seconds max.

Dimensions - mm

Drawing Not to Scale

14.5 ± 0.5

5.0 (Typ.)

5.2 ± 0.3

Agency Information

• UL Listed Card: C519 125mA-250mA and 375mA-3A

(Guide JDYX, File E19180)

• UL Recognized Card: C519 350mA, and 3.5A-7A

(Guide JDYX2, File E19180)

• CSA Certification Card: C519 125mA-250mA and

375mA-3A (Class 1422-01, File 53787)

Ordering

Specify product code

• Insert packaging code prefix before part number. E.g.

BK(BK1)/C519-2-R

Specifications

Part Number

C519-125-R

C519-250-R

C519-350-R

C519-375-R

C519-500-R

C519-600-R

C519-750-R

C519-1-R

C519-1.25-R

C519-1.5-R

C519-1.6-R

C519-2-R

C519-2.25-R

C519-2.5-R

C519-3-R

C519-3.5-R

C519-4-R

C519-5-R

Voltage

Rating

Vac

250

125

Interrupting Rating

at Rated Voltage (amps)

600Vac

250Vac

125Vac

-

35

10,000

-

35

10,000

25

35

10,000

-

35

10,000

-

35

10,000

-

35

10,000

-

35

10,000

-

35

10,000

-

100

10,000

-

100

10,000

-

100

10,000

-

100

10,000

-

100

10,000

-

100

10,000

-

100

10,000

-

400

-

400

-

400

Typical DC Cold

Resistance*

Ω

(Ω)

4.72

1.32

1.04

0.81

0.54

0.38

0.26

0.14

0.13

0.10

0.09

0.059

0.057

0.046

0.035

0.028

0.023

0.019

Typical

Melting I

2

t**

DC

0.101

0.467

1.169

1.531

2.280

6.982

9.162

14.289

22.961

31.989

31.156

60.256

97.724

78.163

80.426

149.279

233.346

354.813

Max.

Voltage

Drop (mV)***

770

430

530

470

440

350

310

230

220

240

200

170

180

190

150

130

150

* DC Cold Resistance (Measured at <10% of rated current)

** Typical Melting I

2

t (A

2

Sec) (Typical I

2

t at 10 times rated current)

*** Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

0909

BU-SB09719

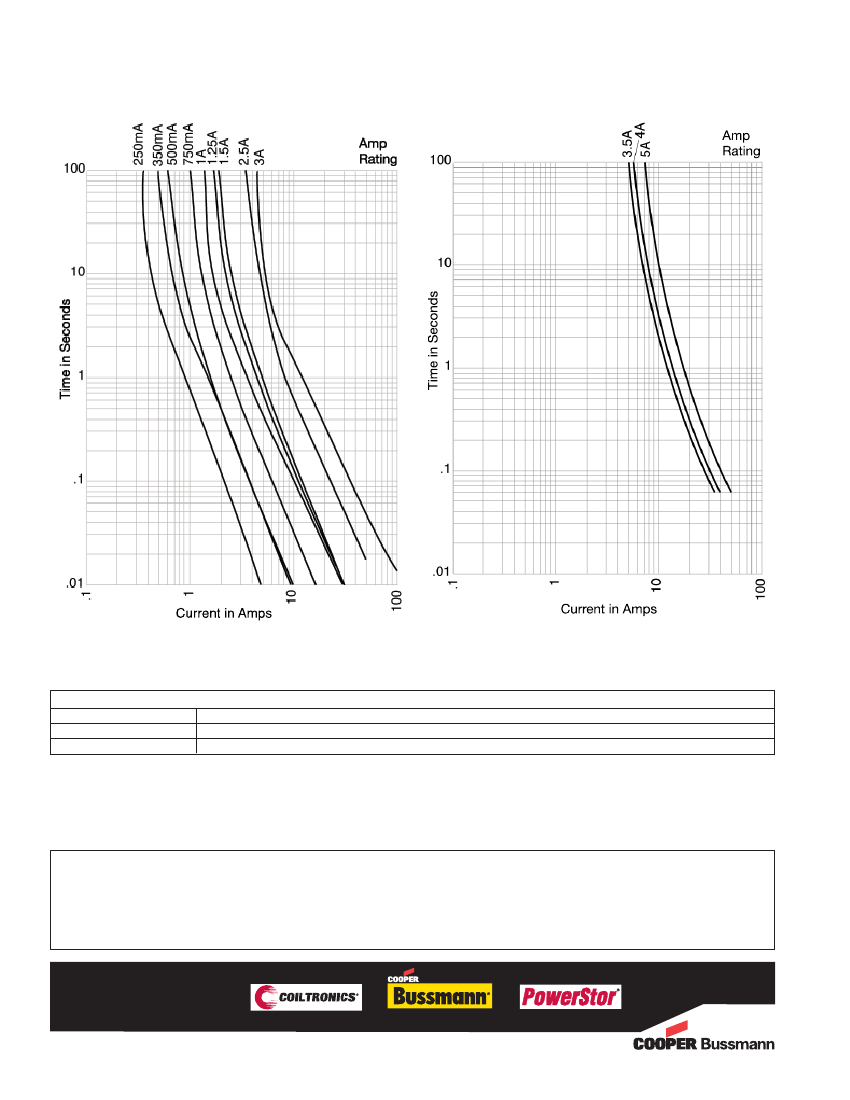

Page 1 of 2

Data Sheet 2007

BK/C519-2-R Related Products

	BK/C519-2-R	BK/C519-1.6-R	PHNR26442804	BK/C519-1.25-R	BK/C519-2.25-R	BK/C519-375-R	BK/C519-4-R	BK/C519-600-R
Description	TIME DELAY BLOW ELECTRIC FUSE, 2A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	TIME DELAY BLOW ELECTRIC FUSE, 1.6A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	Fixed Resistor, 3W, 2800000ohm, 15000V, 1% +/-Tol, 80ppm/Cel, Through Hole Mount, AXIAL LEADED	TIME DELAY BLOW ELECTRIC FUSE, 1.25A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	TIME DELAY BLOW ELECTRIC FUSE, 2.25A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	TIME DELAY BLOW ELECTRIC FUSE, 0.375A, 250VAC, 35A (IR), INLINE/HOLDER, ROHS COMPLIANT	TIME DELAY BLOW ELECTRIC FUSE, 4A, 125VAC, 400A (IR), INLINE/HOLDER, ROHS COMPLIANT	TIME DELAY BLOW ELECTRIC FUSE, 0.6A, 250VAC, 35A (IR), INLINE/HOLDER, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	AXIAL LEADED	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Manufacturer's serial number	C519	C519	HNR	C519	C519	C519	C519	C519
Installation features	INLINE/HOLDER	INLINE/HOLDER	THROUGH HOLE MOUNT	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BULK	BOX	BOX	BOX	BOX	BOX
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	WIRE	END CAP	END CAP	END CAP	END CAP	END CAP
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	Eaton	Eaton	-	Eaton	Eaton	Eaton	Eaton	Eaton
Fusing characteristics	TIME DELAY	TIME DELAY	-	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY
body height	15 mm	15 mm	-	15 mm	15 mm	15 mm	15 mm	15 mm
Body length or diameter	5.2 mm	5.2 mm	-	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	-	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	27 J	14 J	-	7 J	31 J	-	145 J	2 J
physical size	5.2mm x 15mm	5.2mm x 15mm	-	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm
Rated breaking capacity	100 A	100 A	-	100 A	100 A	35 A	400 A	35 A
Rated current	2 A	1.6 A	-	1.25 A	2.25 A	0.375 A	4 A	0.6 A
Rated voltage (AC)	250 V	250 V	-	250 V	250 V	250 V	125 V	250 V
Guideline	CSA; UL	CSA; UL	-	CSA; UL	CSA; UL	CSA; UL	UL	CSA; UL

Recommended Resources

Thyristor circuit using integrated flip-flop TD1028

Photoresistor time delay power-saving switching circuit

Timing pulse generator circuit

Crystal diode-capacitor double boost circuit (2)

Multifunctional power supply circuit diagram of a portable telephone composed of RS5VE

Ventilation motor temperature control circuit
