• Suitable for using as a choke in DC power supply circuits
MSL level: 1
APPLICATIONS:
RoHS
Compliant
5.7 x 5.0 x 4.7mm
| | | | | | | | | | | | | | |
• Cell phones
• High frequency communication products
• PCs, Disk Drives and Computer Peripherals
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
Part Number
AISC-2220H-
Inductance Code
AISC-2220H-R12
AISC-2220H-R27
AISC-2220H-R47
AISC-2220H-1R0
AISC-2220H-1R5
AISC-2220H-2R2
AISC-2220H-3R3
AISC-2220H-4R7
AISC-2220H-6R8
AISC-2220H-100
AISC-2220H-150
AISC-2220H-220
AISC-2220H-330
AISC-2220H-470
AISC-2220H-680
AISC-2220H-101
AISC-2220H-151
AISC-2220H-221
AISC-2220H-331
AISC-2220H-471
AISC-2220H-681
AISC-2220H-102
AISC-2220H-222
AISC-2220H-472
AISC-2220H-103
AISC-2220H-xxx Series
-40°C to + 85°C
-40°C to + 85°C, 80% RH max.
Inductance
(uH)
0.12
0.27
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
2200
4700
10000
Tolerance
K, M
M
M
M
M
M
M
M
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
Test
Frequency
and Voltage
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
10KHz, 0.1V
10KHz, 0.1V
10KHz, 0.1V
10KHz, 0.1V
DCR max
(Ω)
0.0098
0.0140
0.0182
0.0270
0.0310
0.0410
0.0500
0.0574
0.1040
0.1300
0.210
0.266
0.448
0.560
0.938
1.204
2.660
3.360
6.160
7.560
11.34
14.42
30.10
61.04
140.0
IDC max
(A)
6.000
5.300
4.800
4.000
3.700
3.200
2.900
2.700
2.000
1.700
1.400
1.200
0.900
0.800
0.640
0.560
0.420
0.320
0.270
0.240
0.190
0.150
0.100
0.070
0.050
SRF min
(MHz)
450
300
200
150
110
80
40
30
25
20
17
15
12
10
7.6
6.5
5.0
4.0
3.1
2.4
1.9
1.7
1.2
0.8
0.5
Test Conditions and Equipment
Rated DC Current:
The current when the inductance becomes 10% lower than its initial
value
or the
current when the temperature of coil increases by 20°C, whichever is smaller. (Ta=25°C)
L&Q:
HP4285A Precision
LCR meter
DCR:
Milli-ohm meter
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 12.28.12
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit www.abracon.com for Terms & Conditions of Sale
UNSHIELDED SMD POWER INDUCTOR
AISC-2220H
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
RoHS
Compliant
5.7 x 5.0 x 4.7mm
| | | | | | | | | | | | | | |
AISC-2220H-
-
Inductance Code
Please
refer to Electrical
Specification Table
Tolerance
Code
K: ± 10%
M: ± 20%
Packaging
T: 1000 pcs/reel

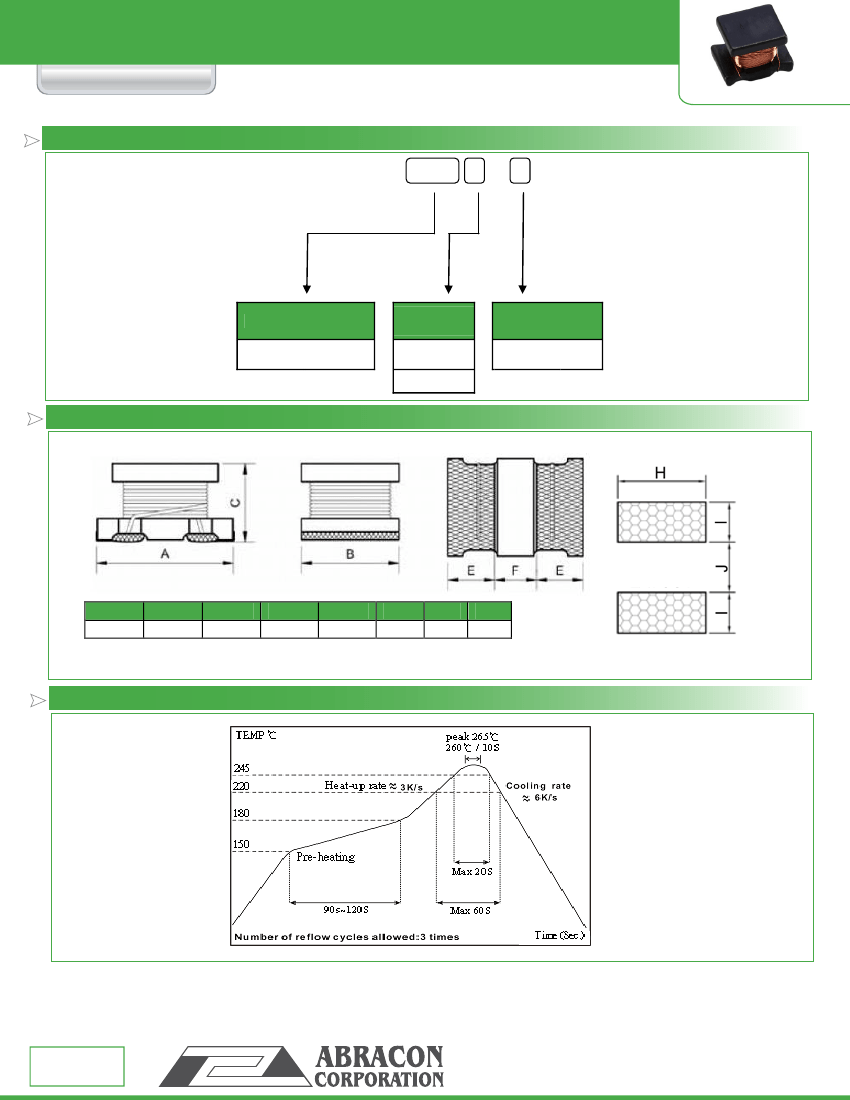

OUTLINE DIMESIONS:
Recommended Land Pattern
A
5.7±0.3
B
5.0±0.3
C
4.7±0.5
E
1.3min.
F
1.7min.
H
5.0
I
2.0
J
2.0
Dimension: mm
REFLOW PROFILE:
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 12.28.12
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit www.abracon.com for Terms & Conditions of Sale
UNSHIELDED SMD POWER INDUCTOR
AISC-2220H

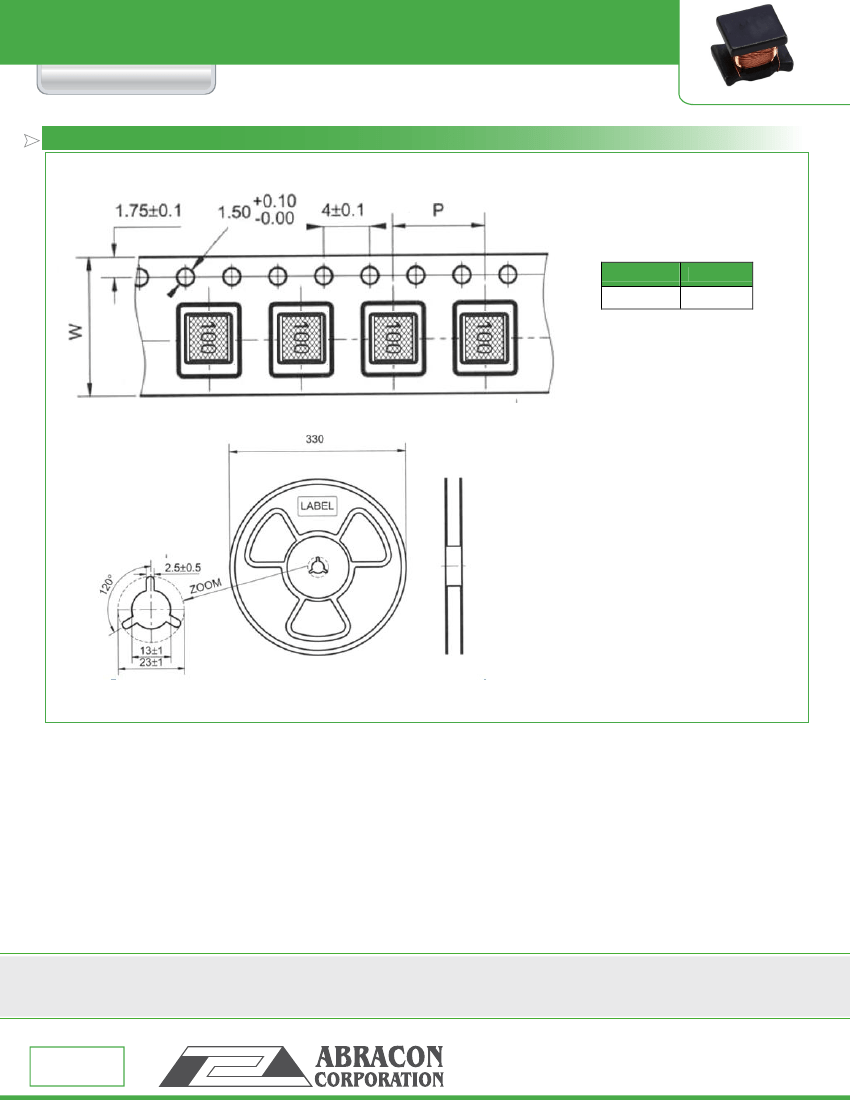

TAPE & REEL:
T= tape and reel (1,000pcs/reel)
RoHS
Compliant
5.7 x 5.0 x 4.7mm
| | | | | | | | | | | | | | |
W
16
P
12
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products;
suitable
for Commercial,
Industrial
and, where designated,
Automotive
Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure
could
result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating
environment,
written consent and
authorization
from
Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 12.28.12
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit www.abracon.com for Terms & Conditions of Sale
