FEP16AT THRU FEP16JT
FAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage -
50 to 600 Volts
TO-220AB
0.185 (4.70)
0.175 (4.44)
0.154 (3.91)
DIA.
0.148 (3.74)
0.055 (1.39)
0.045 (1.14)
Forward Current -
16.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
Dual rectifier construction, positive centertap
♦
Glass passivated chip junctions
♦
Low power loss
♦
Low forward voltage, high current capability
♦
High surge current capability
♦
Superfast recovery times for high efficiency
♦
High temperature soldering guaranteed:
250°C, 0.16" (4.06mm) from case for 10 seconds
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.560 (14.22)
0.530 (13.46)
0.410 (10.41)
0.390 (9.91)
PIN
2
0.635 (16.13)
0.625 (15.87)
1
0.160 (4.06)
0.140 (3.56)
0.560 (14.22)
0.530 (13.46)
3
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
MECHANICAL DATA
Case:
JEDEC TO-220AB molded plastic body over
passivated chips
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Mounting Torque:
5 in. - lbs. max.
Weight:
0.08 ounce, 2.24 grams
0.105 (2.67)
0.095 (2.41)
0.037 (0.94)
0.027 (0.68)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.35)
PIN 1
PIN 3
PIN 2
CASE
Dimensions are in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
FEP
SYMBOLS 16AT
FEP
16BT
FEP
16CT
FEP
16DT
FEP
16FT
FEP
16GT
FEP
16HT
FEP
16JT
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
C
=100°C
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
Maximum instantaneous forward voltage per leg
at 8.0A
Maximum DC reverse current
at rated DC blocking voltage per leg
Maximum reverse recovery time
(NOTE 1)
per leg
Typical
J
unction
C
apacitance per leg
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction and storage temperature range
T
C
=25°C
T
C
=100°C
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
150
105
150
200
140
200
300
210
300
400
280
400
500
350
500
600
420
600
Volts
Volts
Volts
Amps
16.0
I
FSM
200.0
Amps
V
F
I
R
t
rr
C
J
R
ΘJA
R
ΘJC
T
J,
T
STG
0.95
10.0
500.0
35.0
85.0
15.0
2.2
1.3
1.5
Volts
µA
50.0
60.0
ns
pF
°C/W
°C
-55 to +150
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MH
Z
and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient and from junction to case per leg mounted on heatsink
4/98

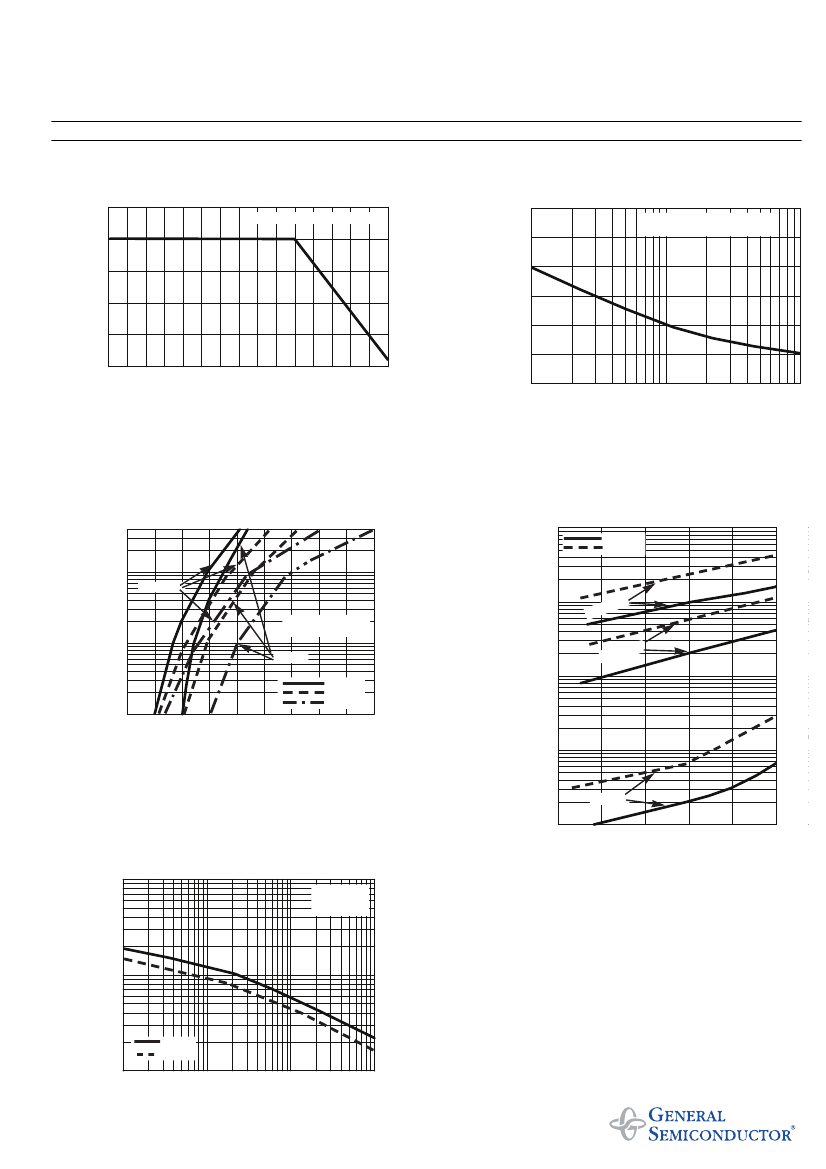

RATINGS AND CHARACTERISTICS CURVES FEP16AT THRU FEP16JT
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
FIG. 1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,
AMPERES
20
16
12
8.0
4.0
0
PEAK FORWARD SURGE CURRENT,
AMPERES
RESISTIVE OR INDUCTIVE LOAD
300
250
200
150
100
50
0
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0
50
100
150
CASE TEMPERATURE, °C
1
10
NUMBER OF CYCLES AT 60 H
Z
100
FIG. 3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
INSTANTANEOUS FORWARD CURRENT,
AMPERES
FIG. 4 -TYPICAL REVERSE CHARACTERISTICS
PER LEG
40
100
50-400V
500-600V
10
T
J
=125°C
INSTANTANEOUS REVERSE LEAKAGE CURRENT,
MICROAMPERES
10
PULSE WIDTH=300µs
1% DUTY CYCLE
T
J
=
125
°C
1
T
J
=25°C
50-400V
300-400V
500-600V
00°C
T
J
=1
1
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.1
T
J
=25°C
0.01
0
FIG. 5 - TYPICAL JUNCTION CAPACITANCE PER LEG
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
1,000
JUNCTION CAPACITANCE, pF
T
J
=125°C
f=1.0 MH
Z
Vsig=50mVp-p
100
50-400V
500-600V
10
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
