PS2566L-2-E3-V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2566L-2-E3-V

Preview

PS2566L-2-E3-V: DescriptionAC Input-Darlington Output Optocoupler, 2-Element, 3750V Isolation, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size227KB，16 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

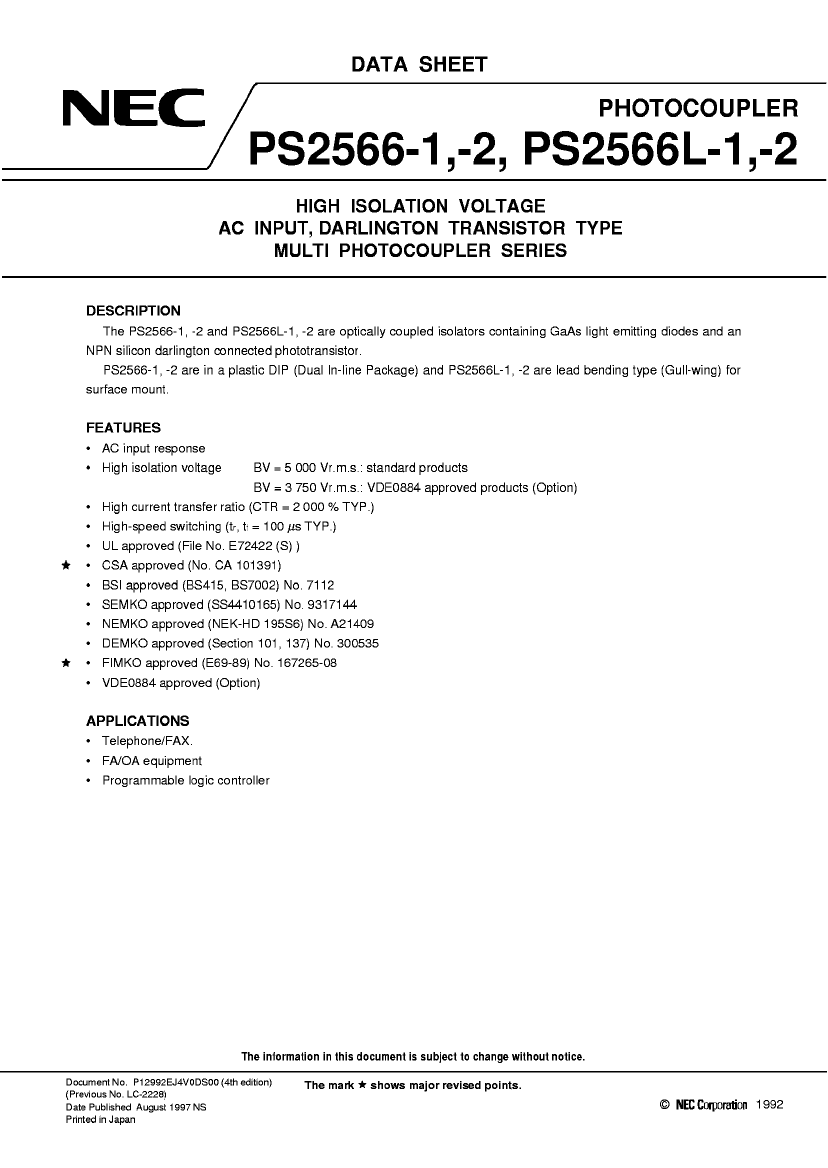

PS2566L-2-E3-V Overview

AC Input-Darlington Output Optocoupler, 2-Element, 3750V Isolation, DIP-8

PS2566L-2-E3-V Parametric

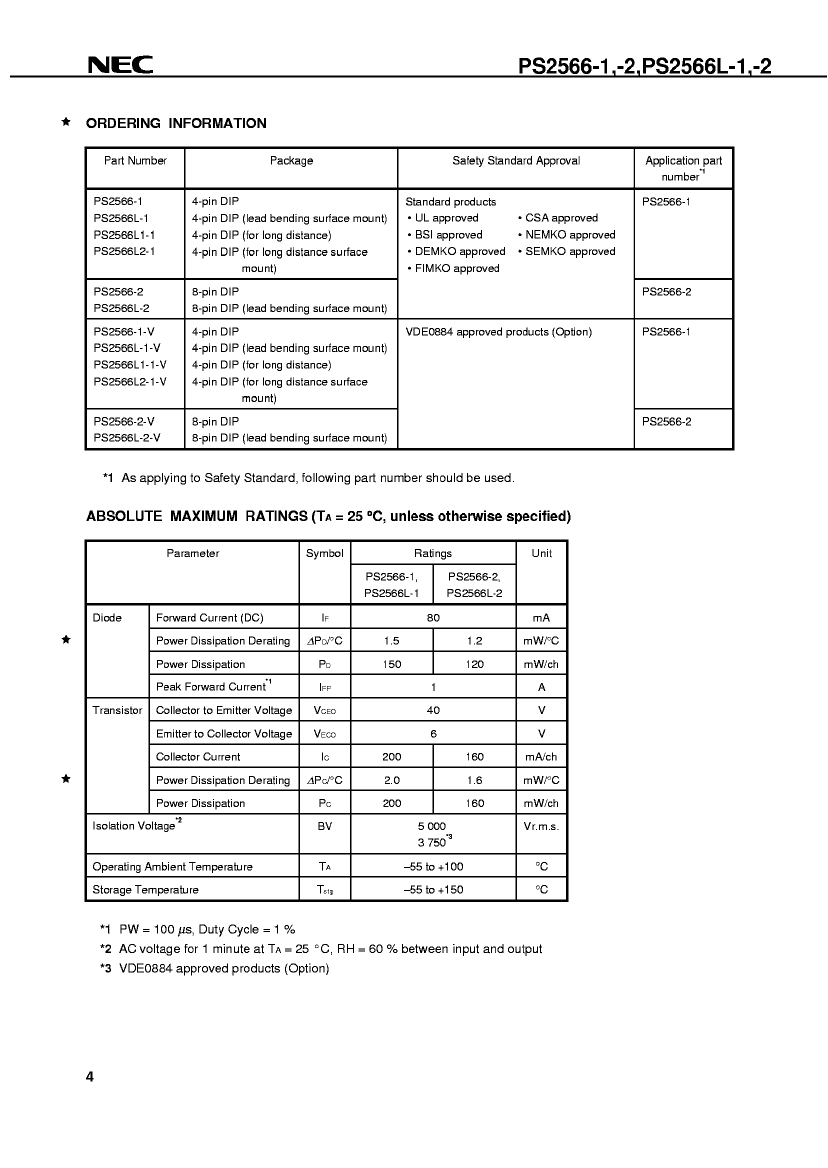

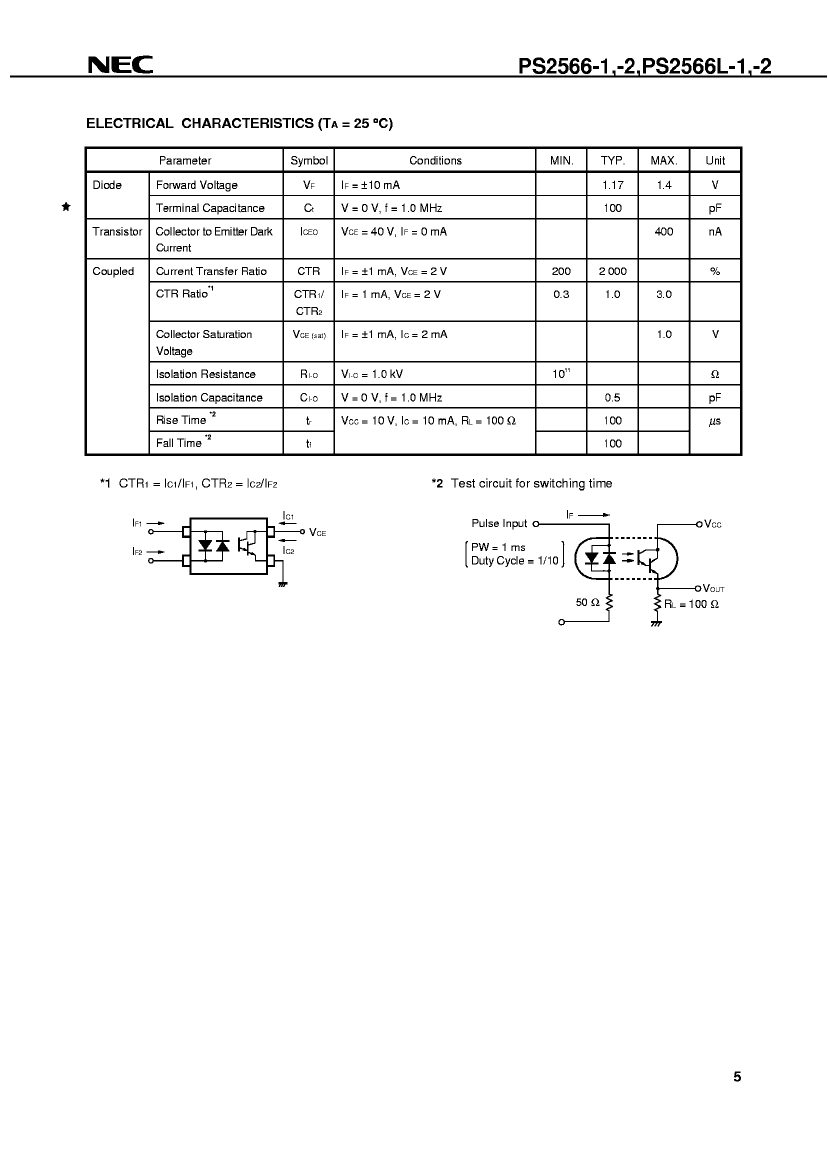

Parameter Name	Attribute value
Maker	NEC Electronics

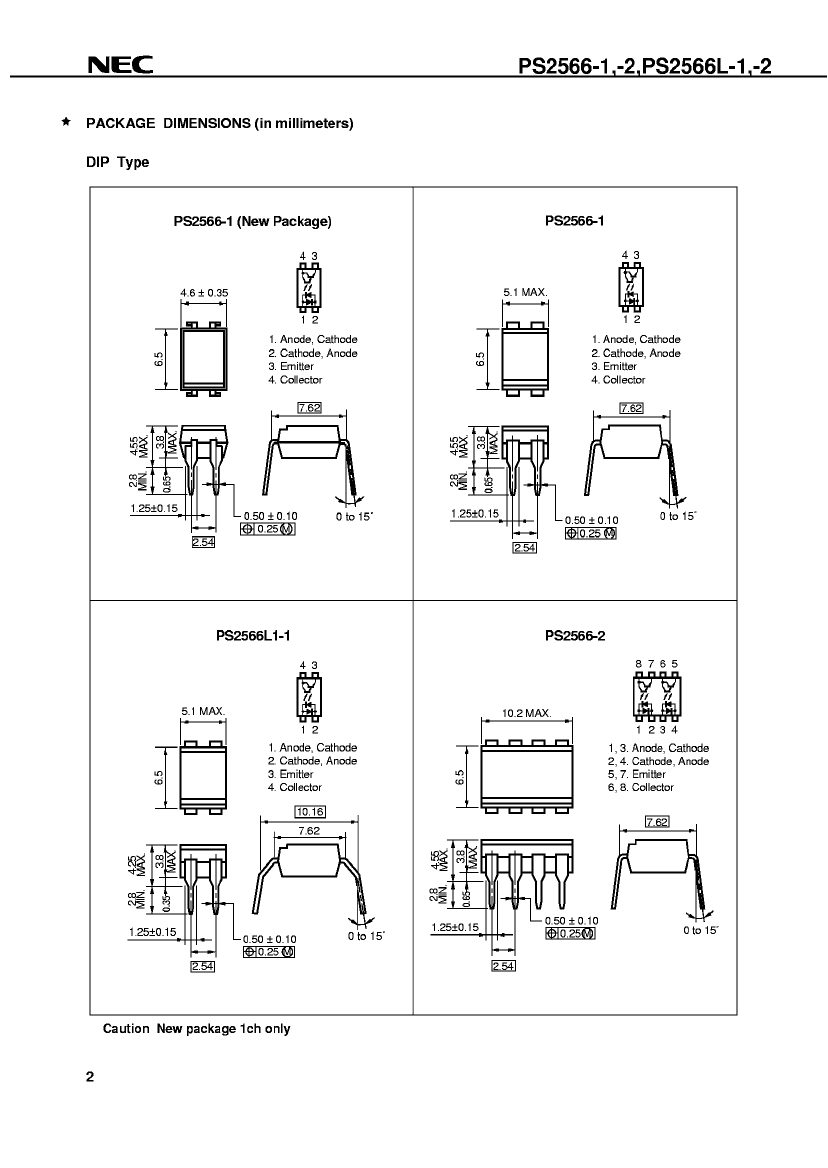

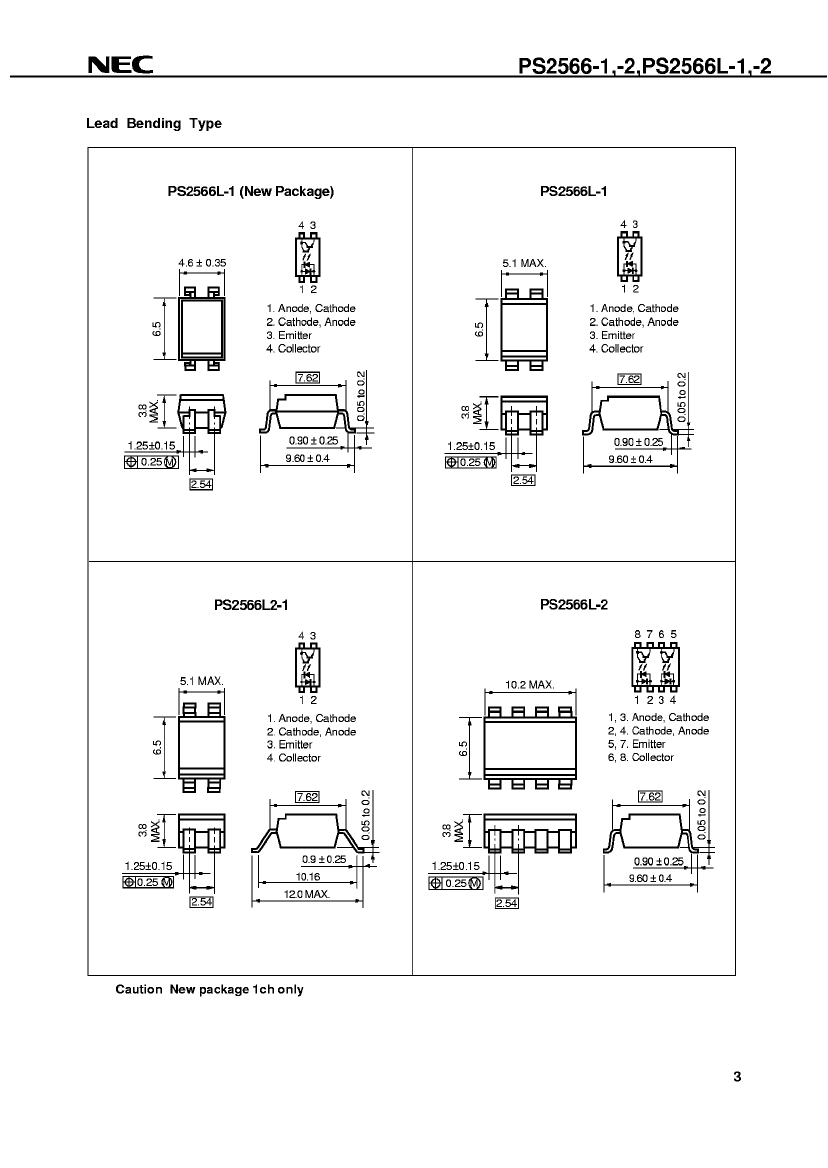

package instruction	DIP-8
Reach Compliance Code	unknown
Other features	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	40 V
Configuration	SEPARATE, 2 CHANNELS
Nominal current transfer ratio	2000%
Maximum dark power	400 nA
Maximum forward current	0.08 A
Maximum insulation voltage	3750 V
Number of components	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

PS2566L-2-E3-V Related Products

	PS2566L-2-E3-V	PS2566L-2-E4-V	PS2566L-1-E4-V	PS2566L-1-F3-V	PS2566L-1-E3-V	PS2566L-1-F4-V
Description	AC Input-Darlington Output Optocoupler, 2-Element, 3750V Isolation, DIP-8	AC Input-Darlington Output Optocoupler, 2-Element, 3750V Isolation, DIP-8	AC Input-Darlington Output Optocoupler, 1-Element, 3750V Isolation, DIP-4	AC Input-Darlington Output Optocoupler, 1-Element, 3750V Isolation, DIP-4	AC Input-Darlington Output Optocoupler, 1-Element, 3750V Isolation, DIP-4	AC Input-Darlington Output Optocoupler, 1-Element, 3750V Isolation, DIP-4
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	DIP-8	DIP-8	DIP-4	DIP-4	DIP-4	DIP-4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	VDE APPROVED	VDE APPROVED	VDE APPROVED	VDE APPROVED	VDE APPROVED	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	2000%	2000%	2000%	2000%	2000%	2000%
Maximum dark power	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V
Number of components	2	2	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER
