DAEP SERIES
ADSL LINE TRANSFORMERS

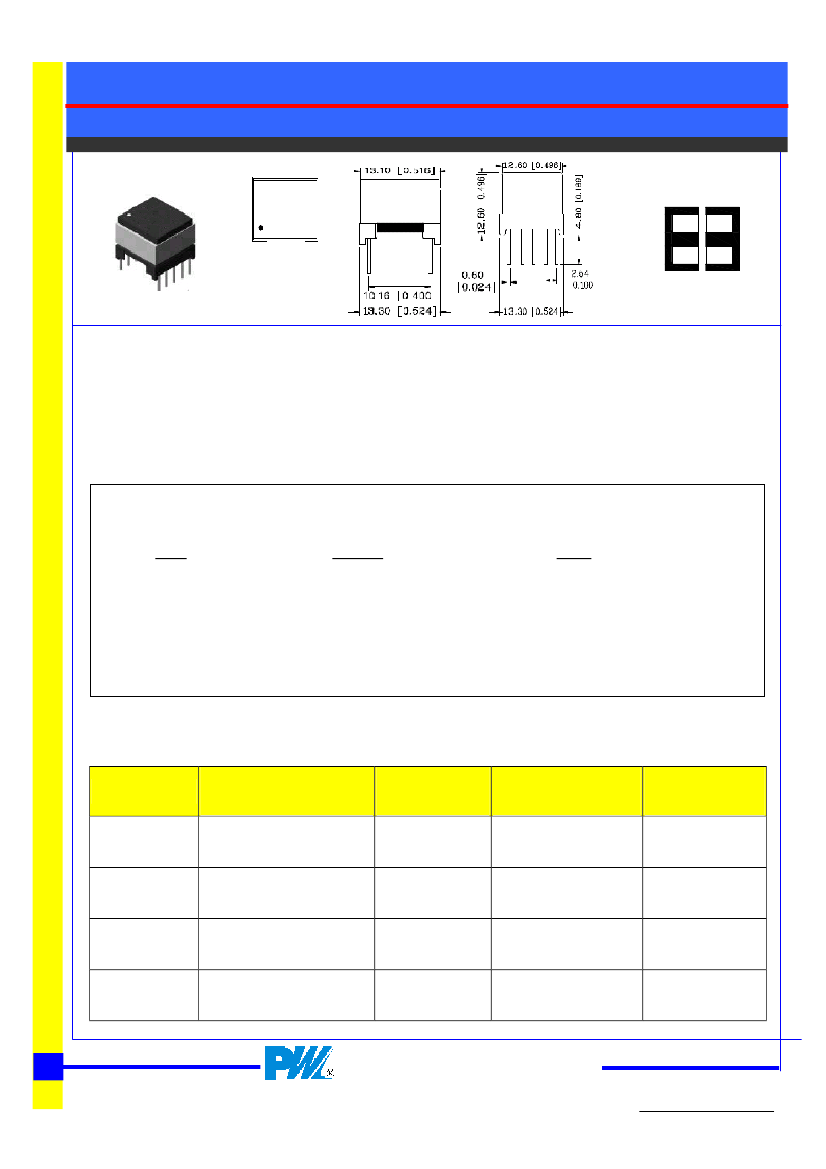

MECHANICALS
CONSTRUCTION
l
FEATURE
EXCELLENT THD PERFORMANCE IN A
SMALL FOOTPRINT.
l
APPLICATIONS
FOR USE WITH ADSL CHIPSET
特性
它具有优良的
THD
性½及较小
的焊接表面积
用途
应用于
ADSL
模块中
l
PART NUMBERING SYSTEM (品名規定)
DA
1
DIP ADSL LINE
TRANSFORMER
直插式
ADSL
线性变压器
EP13
2
DIMENSIONS
CORE DIM
磁芯尺寸型号
EP13
-
001
3
PART NUMBER
成品流水号
l
SPECIFICATIONS
PART NO
DAEP13001
DAEP13002
DAEP13003
DAEP13004
Turn Ratio
(±2%)
1:1
Pin(1-5):(10-6)
1:1:1:1
Pin(10-8):(9-7):(1-3):(2-4)
1:1
Pin(1-4):(2-5)
2:1
Pin(10-6):(1-5)
OCL
@ 10KHz/0.1V
4.0mH±10%
(1-5)：(6-10)
440uH
±5%
(10-7)&(8-9)
5.5mH±5%
(1-4),(2+5)short
100 uH± 5%
(10-6) , (7+9)
Leakage Inductance
(
μH
Longitudinal
Balance(dB Min)
-
-55 dB
@100KHz
-
-45 dB
@1.1MHz
Max)
-
15.0 uH
@100KHz/0.1V
-
10.0 uH
@100KHz/0.1V
66
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
DAEP SERIES
l
SPECIFICATIONS
PART NO
DAEP13005
DAEP13006
DAEP13007
Turn Ratio
(±2%)
1:1
Pin(1-4):(2-5)
1:1
Pin(1-5):(10-6)
1:1
Pin (2-4):(9-7)
1:1
DAEP13008
1.27 mH
±5%
(10-6),(7+9)short
DAEP13009
1:1
Pin(1-5):(10-6)
1:1
DAEP13010
1.25 mH
±5%
5.0 mH
±10%
(10-7),(8+9)short
1.75mH Min
(1-4),(2+3)short
2.03-2.3mH
(10-7),(8+9)short
1:1
DAEP13012
Pin(1-4):(10-7)
407uH
±5%
Pin(1-5):(10-6) (1-5), (4+2)short;
OCL
@ 10KHz/0.1V
5.5 mH±10%
(1-4)
4mH±10%
(1-5)
3.5mH±10%
ADSL LINE TRANSFORMER
Leakage Inductance
(μH Max)
22.0 uH @100KHz/0.1V
(1-4),(5+2)short
-
-
5.0uH @100KHz/0.1V
(1-5),
(4+2+10+6+7+9)short;
12.0 uH @100KHz/50mV
18 uH @100KHz/0.1V
Longitudinal
Balance(dB Min)
-
-
-
-50 dB
@ 20KHz to 1.1MHz
-50 dB
-40 dB
(1-5),(2+4)short (1-5),(2+4,10+6,9+7)short @ 1KHz to 1.1 MHz
Pin(1-4):(10-7) (1-4),(2+3) short (1-4),(2+3,8+9,10+7)short @ 25KHz to 1.1MHz
1:1.1
DAEP13011
Pin(1-4):(10-7)
7.5 uH @300KHz/0.1V
-45 dB
(1-4),(2+3,8+9,10+7)short @ 30KHz to 1.1MHz
10.0 uH @300KHz/0.1V
-46 dB
(1-4),(2+3)short (1-4),(2+3,10+7,9+8)short @ 30KHz to 1.1 KHz
850 uH
±5%
1:1
DAEP13013
Pin(1-4):(10-7)
2.4:1
3.3:1
1.1:1
Pin(1-4) :(8-6)
2.8:1
Pin(10-7):(1-4)
5.5 uH @100KHz/0.1V
-
-45 dB
@10KHz to1MHz
-45 dB
-46 dB
@30KHz -1.1MHz
-46 dB
@1.1MHz
(1-4),(2+3)short (1-4),(2+3,10+7,9+8)short
1.2 mH
±10%
800 uH
±5%
100uH±7%
@,100mAC
1.2mH±10%
@100mAC
10.0 uH @100KHz/0.1V
20.0 uH @100KHz/0.1V
4.0 uH @1MHz,1.0VAC,
(1-4)(2+3,7+8,9+10)short
10.0 uH @1MHz,1.0VAC,
(1-4) ,(2+3,7+8,9+10)short
DAEP13014
DAEP13015
DAEP13016
DAEP13017
Pin(10-7):(1-4) (10-7),(8+9)short (10-7),(8+9,2+3,1+4)short
Pin(6-10):(5-1) (6-10),(9+7)short (6-10),(7+9,1+5,2+4)short @30KHz to 1.1 MHz
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
67
DAEP SERIES
l
SPECIFICATIONS
PART NO
DAEP13018
DAEP13019
DAEP13020
DAEP13021
DAEP13022
Turn Ratio
(±2%)
1:1.1
1:3
Pin(8-6):(1-4)
3.3:1
1:1
2:1(±2%)
Pin(1-5):(9-7)
OCL
@ 10KHz/0.1V
1.2 mH Min
1.2 mH±10%
(1-4),(2+3)short
800uH Min
442uH
±5%
2.0 mH
±6%
(1-5),(2+4)short
ADSL LINE TRANSFORMER
Leakage Inductance
(
μH
Longitudinal
Balance(dB Min)
-45 dB
-84 dB
@20KHz -1.1 MHz
-45 dB
@100KHz to 1MHz
-45 dB
@30KHz-1.1 MHz
-50 dB
@40K-300 KHz
Max)
10.0uH @ 300KHz/0.1V
15.0uH @ 300KHz/0.1V
(1-4),(2+3,5+7,8+6)short
20.0uH @100 KHz/0.1V
(1-5) (6+10+9+7)short
5.0uH @300 KHz,0.1V
11.0uH @ 100 KHz/0.1V
(1-5),(2+4,9+7) short
Pin(1-4):(10-7) (1-4),(2+3)short (1-4),(2+3,10+7,9+8)short @10KHz to1.1 MHz
Pin(6-10):(1-5) (6-10),(9+7)short
PIN(1-4):(10-7) (7-10) (8+9)short (7-10)(9+8,4+1, 2+3)short
CONTINUE
PART NO
DAEP13001
DAEP13002
DAEP13003
DAEP13004
DAEP13005
DAEP13006
DAEP13007
DAEP13008
DAEP13009
DAEP13010
DAEP13011
DAEP13012
DAEP13013
DAEP13014
Insertion Loss
(dB Max)
-
-
-
-1.0 dB @ 500 KHz 0.1V
-
-
-
-0.5 dB @ 300KHz
-0.5 dB @ 300KHz
-0.5 dB @ 100KHz
-0.5 dB @ 300KHz
-0.5 dB @ 772KHz
-0.5 dB @ 100KHz
-0.5 dB @ 300KHz
DC Resistance
(OHM Max)
6.0 (1-5),(10-6)
0.60 (1-3),(2-4) 1.60 (9-7),(10-8)
6.25 (1-4) , (2-5)
0.5 10-7);(9-6);(1-4);(2-5)
3.6 (1-4),(2-5)
3.5 (1-5) , (10-6)
3.5 (2-4) , (9-7)
0.53 (1-5), (4+2)short;
0.42(1-5),(10-6)
3.2(1-4),(2+3)/(10-7),(8+9)short
1.25(1-4), (3+2)short ;
1.4 (10-7), (8+9)short
0.95(1-3),(2-4) & 0.65(10-8),(9-7)
1500V/0.5mA
Isolation
Voltage
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
0.33 (10-8) ; 0.61(1-3),(2-4) ;0.46(9-7) 1500V/0.5mA
0.66 (10-8),(9-7) & 0.15(1-3) 0.16(2-4) 1500V/0.5mA
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
68
DAEP SERIES
l
SPECIFICATIONS
PART NO
DAEP13015
DAEP13016
DAEP13017
DAEP13018
DAEP13019
DAEP13020
DAEP13021
DAEP13022
Insertion Loss
(dB Max)
-
-0.5 dB @300KHz
-0.5 dB @300KHz
-
-
-
-
- 0.5 dB @300KHz
ADSL LINE TRANSFORMER
DC Resistance
(OHM Max)
0.55 (6-9),(7-10) & 0.2 (5-2),(4-1)
0.330(8-5),.(7-6); 0.3111-3)(2-4)
0.6 (10-8)& (9-7) 0.25 (1-3)&(2-4)
1.25 (1-4),(3+2)short
1.4(10-7) ,(8+9)short
0.35(8-5) & 0.47(7-6); 1.9(2-4),(1-3)
0.65(6-9) & 0.24(5-2)
0.375(10-8); 0.310(9-7);
0.425(1-3)&(2-4); 0.425 (1-3)&(2-4)
2.5(1-5) 1.0(9-7)
Isolation
Voltage
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
1500V/0.5mA
l
l

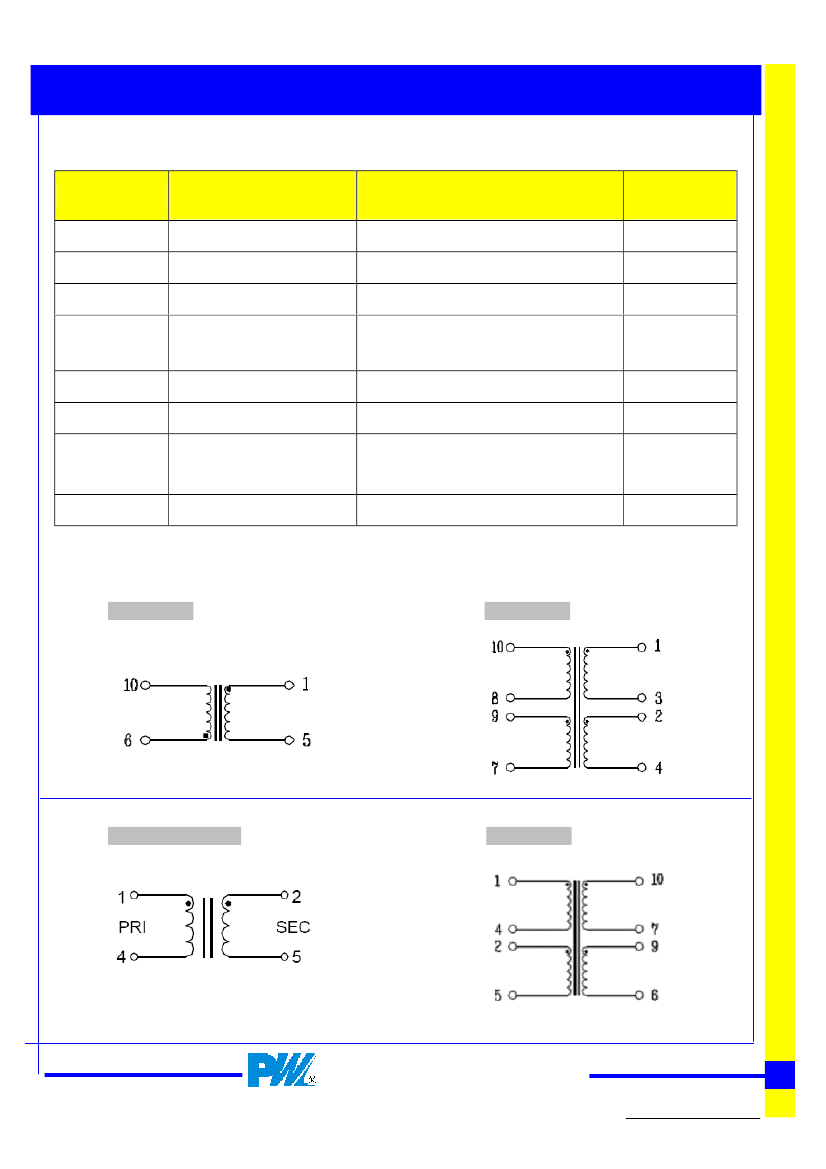

SCHEMATICS
DAEP13001
DAEP13002
DAEP13003/13005
DAEP13004
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
69
DAEP SERIES
l

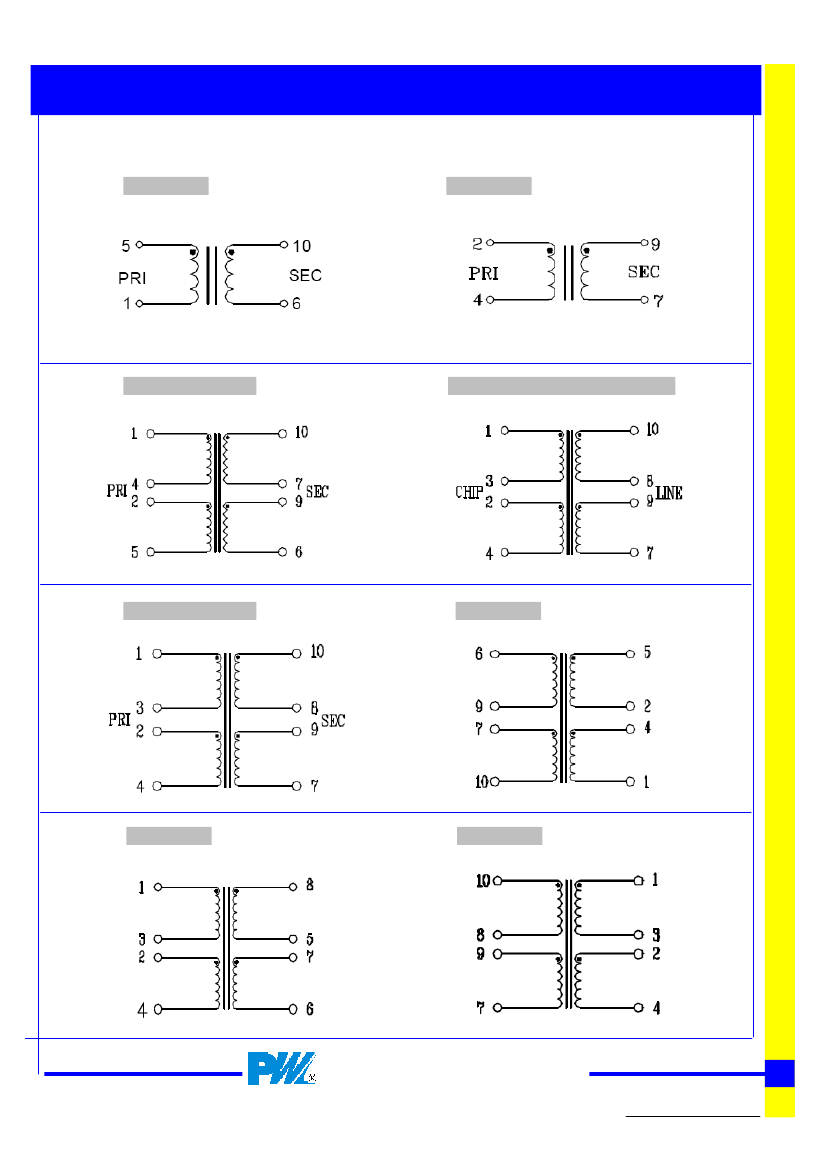

SCHEMATICS
DAEP13006
ADSL LINE TRANSFORMER
DAEP13007
DAEP13008/13009
DAEP13010/13011/13014/13018
DAEP13012/13013
DAEP13015
DAEP13016
DAEP13017
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
70
