Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS31CD

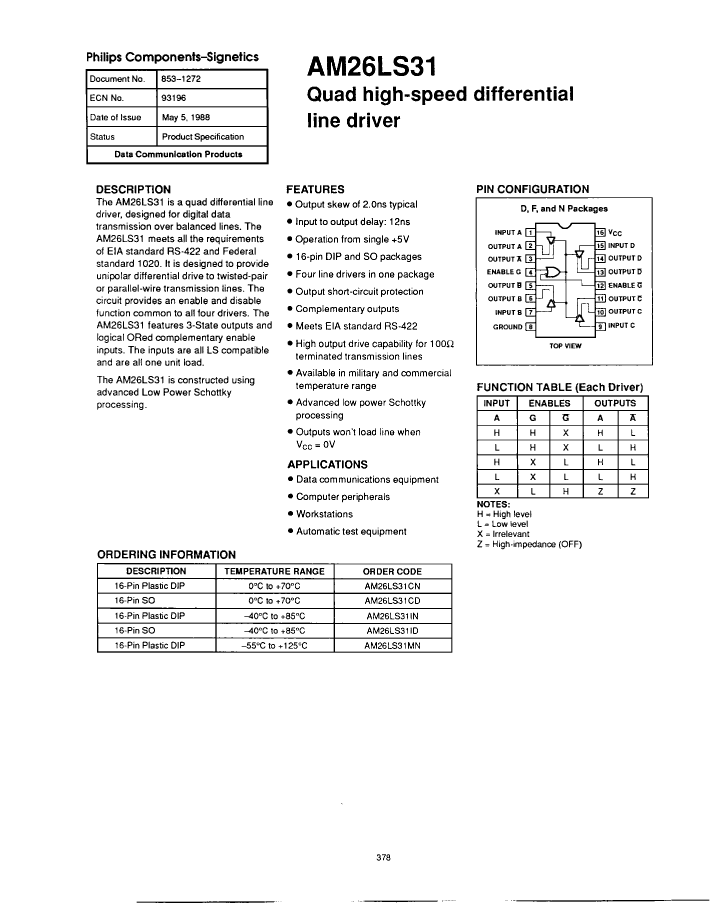

Preview

AM26LS31CD: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, PDSO16,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size88KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Related ProductsFound1parts with similar functions to AM26LS31CD

Download Datasheet Parametric Compare View All

AM26LS31CD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AM26LS31CD	-	-	View	Buy Now

AM26LS31CD Overview

Line Driver, 4 Func, 4 Driver, BIPolar, PDSO16,

AM26LS31CD Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; FED STD 1020
JESD-30 code	R-PDSO-G16
Humidity sensitivity level	1
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	80 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
maximum transmission delay	20 ns

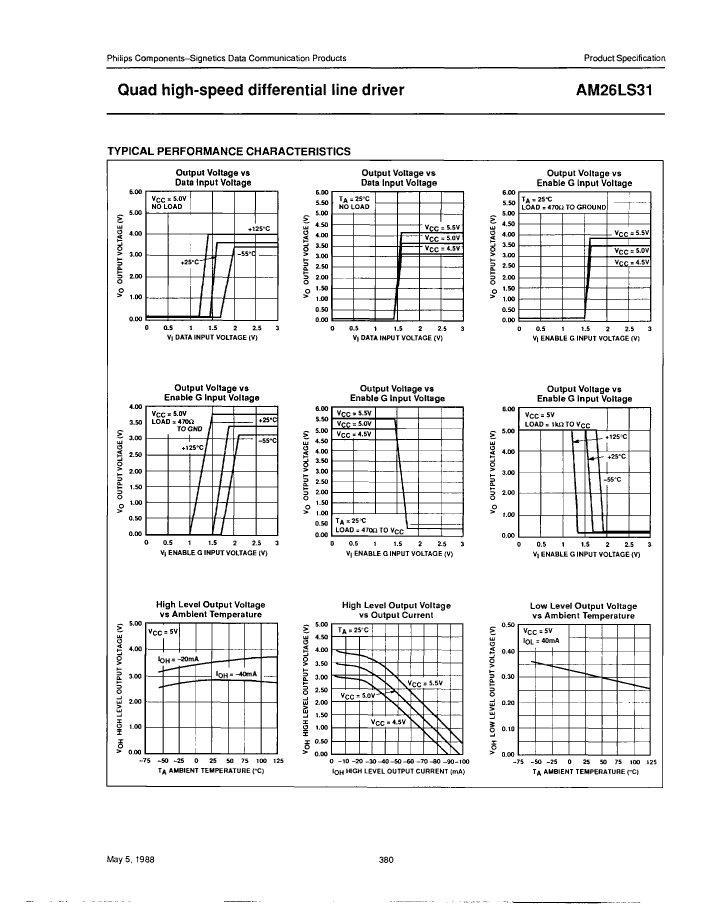

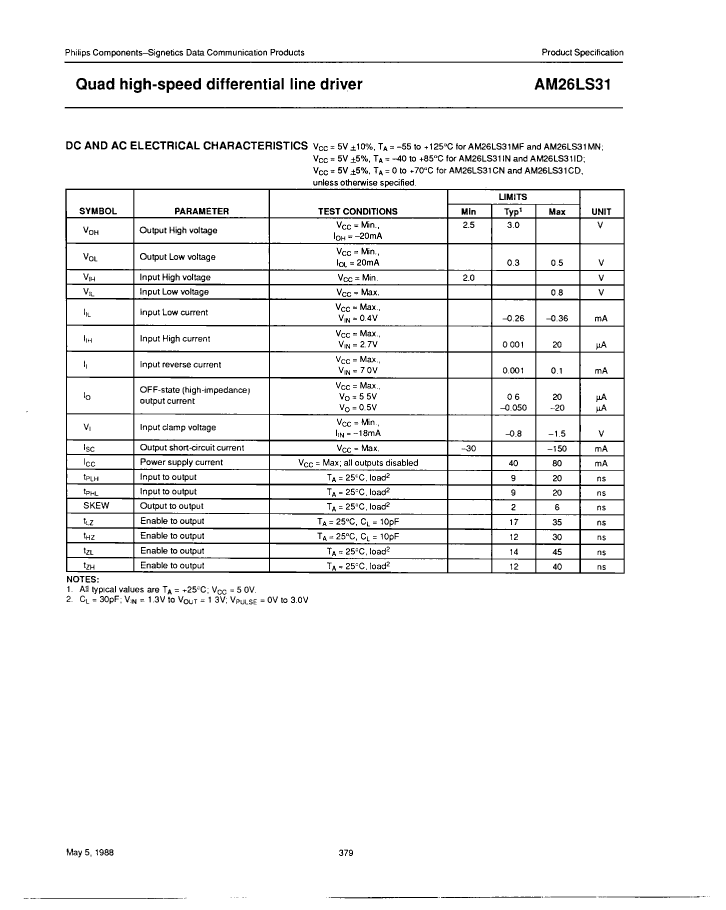

Preview

Download Datasheet

View All

AM26LS31CD Related Products

	AM26LS31CD	AM26LS31MF	AM26LS31MN	AM26LS31IN	AM26LS31ID	AM26LS31CN
Description	Line Driver, 4 Func, 4 Driver, BIPolar, PDSO16,	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16,	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16,	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16,	Line Driver, 4 Func, 4 Driver, BIPolar, PDSO16,	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020
JESD-30 code	R-PDSO-G16	R-GDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-40 °C	-40 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
Base Number Matches	-	1	1	1	1	-
