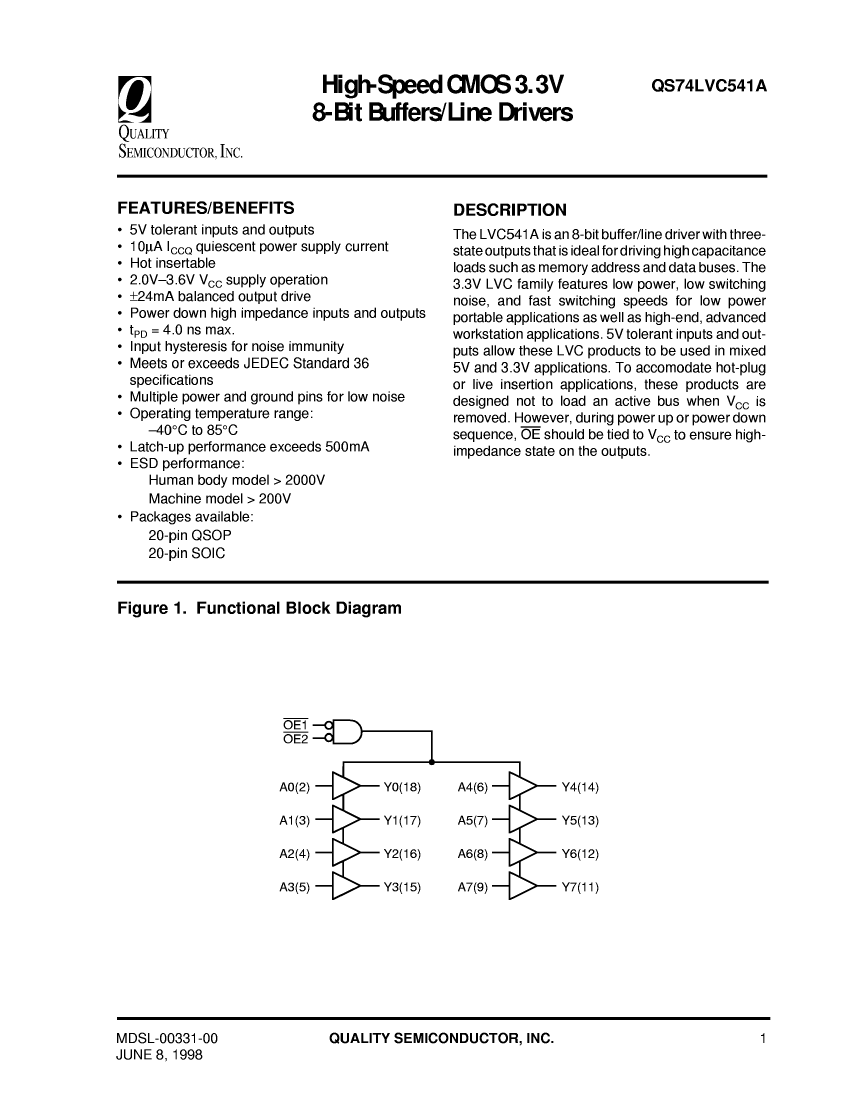

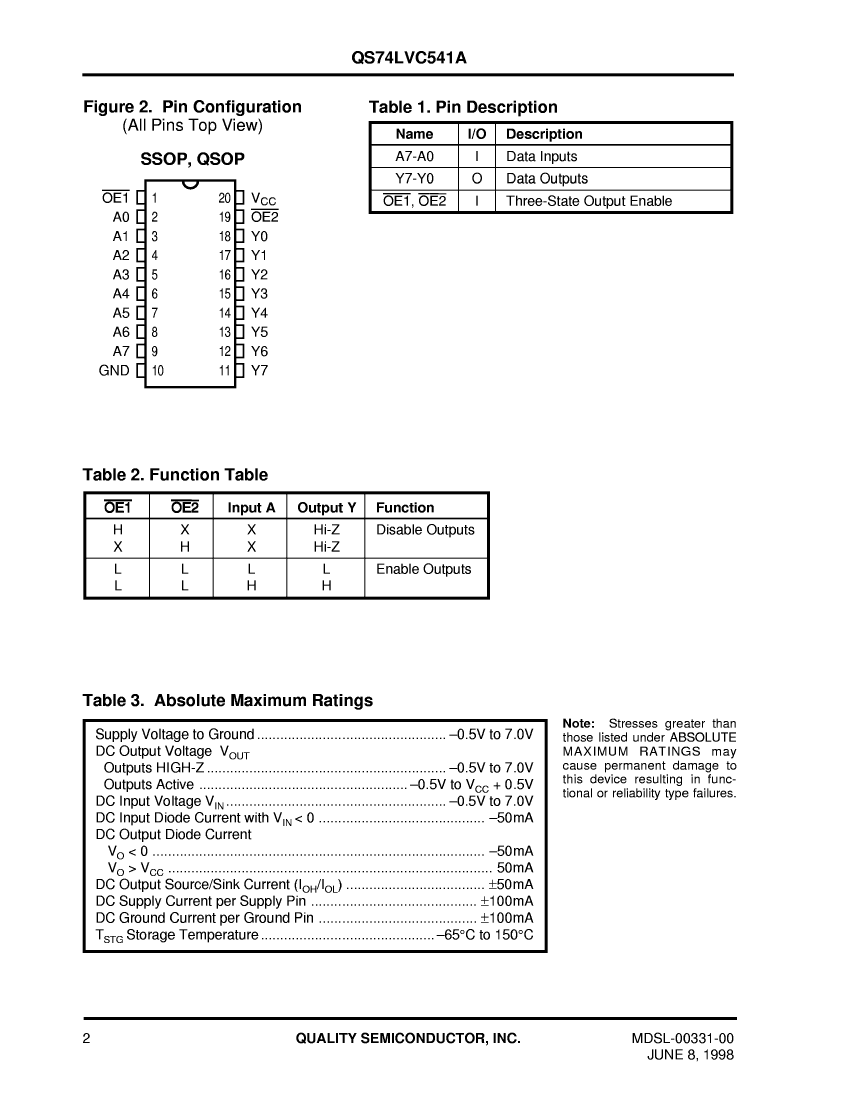

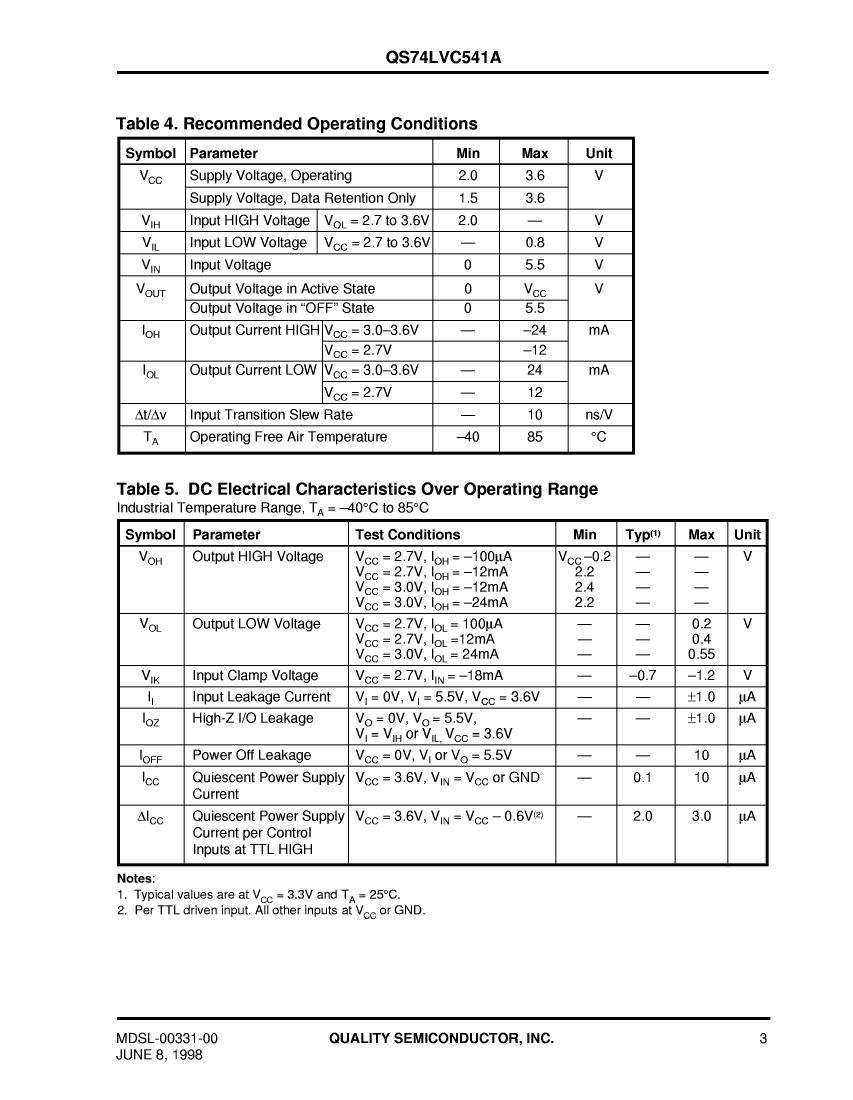

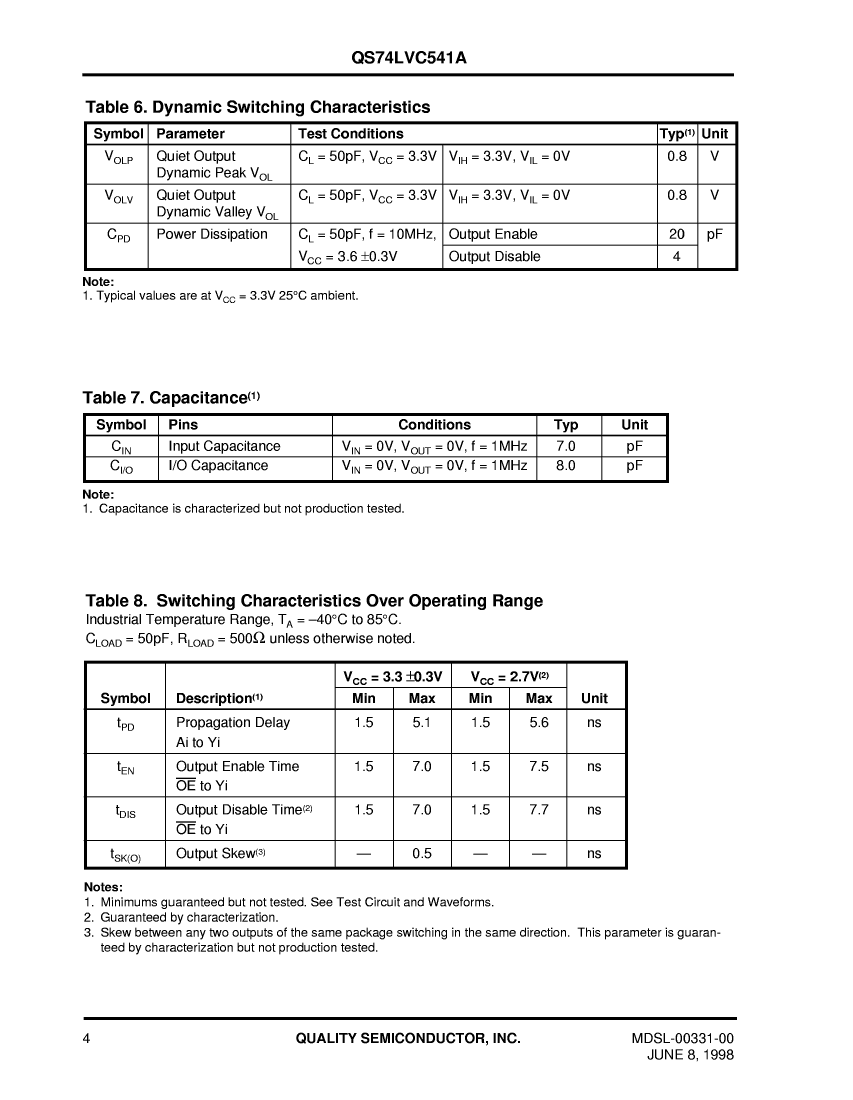

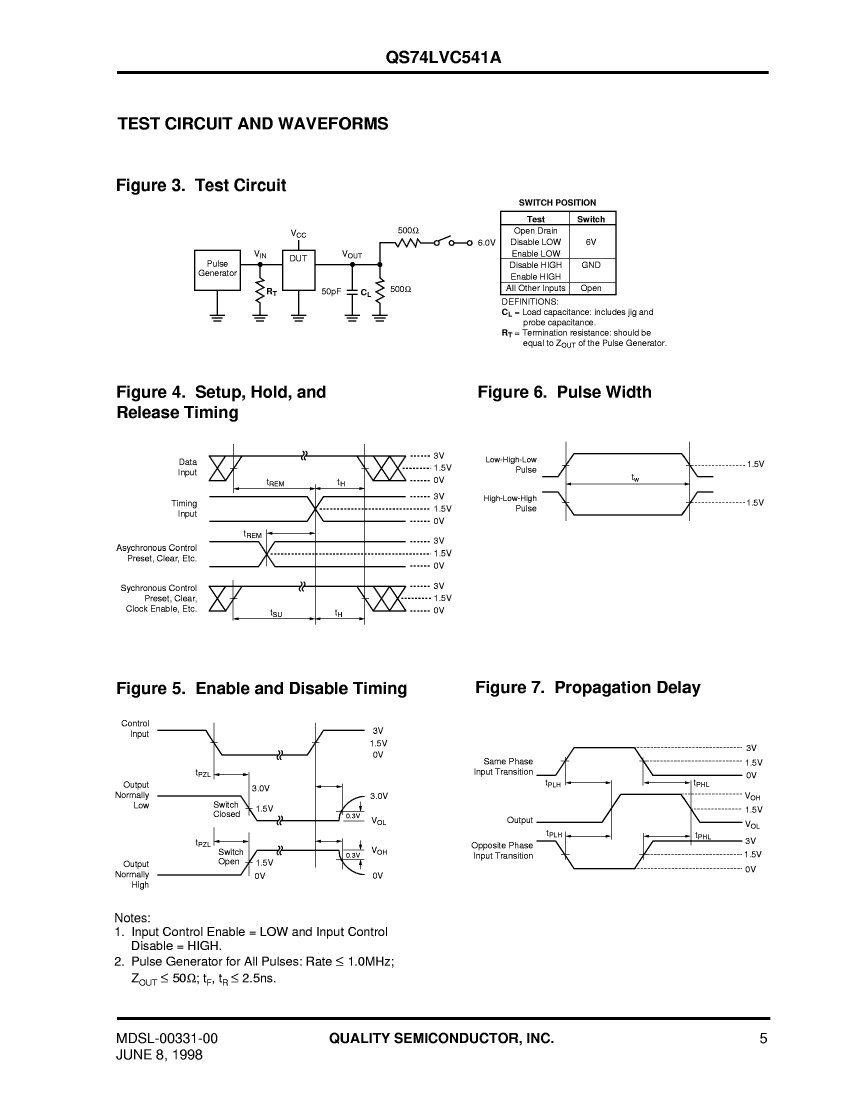

QS74LVC541AQX: DescriptionBus Driver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,; Categorylogic logic; File Size297KB，6 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS74LVC541AQX Overview

Bus Driver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,

QS74LVC541AQX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.1 ns
propagation delay (tpd)	5.6 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
