P6SMB250TRTB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6SMB250TRTB

P6SMB250TRTB: DescriptionTrans Voltage Suppressor Diode, 600W, 202V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size520KB，8 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

P6SMB250TRTB Overview

Trans Voltage Suppressor Diode, 600W, 202V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN

P6SMB250TRTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-214AA
package instruction	SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	275 V
Minimum breakdown voltage	225 V
Breakdown voltage nominal value	250 V
Maximum clamping voltage	360 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	202 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

P6SMB6V8 ........... P6SMB540A

P6SMB6V8C ...... P6SMB260CA

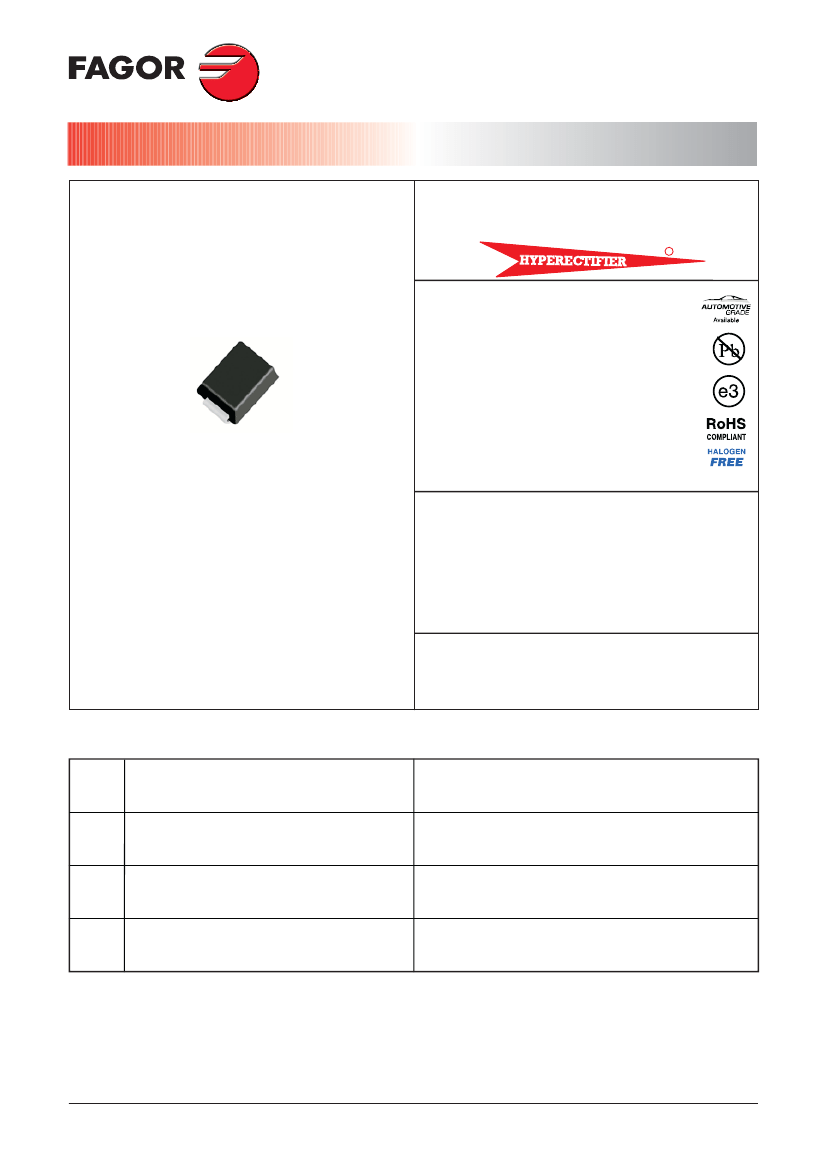

600 W Surface Mount Transient Voltage Suppressor

Voltage

6.8 V to 540 V (Uni)

6.8 V to 260 V (Bid)

Power

600 W /ms

DO-214AA (SMB)

FEATURES

Low profile package

Ideal for automated placement

600 W peak pulse power capability with a

10/1000 µs waveform, repetitive rate (duty

cycle): 0.01 %

Excellent clamping capability

Very fast response time

Low incremental surge resistance

Available in uni-directional and bi-directional

Solder dip 260ºC, 10s

AEC-Q101 qualified

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

Meets MSL level 1, per J-STD-020, LF maximum

peak of 260º C

MECHANICAL DATA

Case

DO-214AA (SMB). Epoxy meets UL 94V-0

flammability rating.

Polarity

For unidirectional types color band denotes

cathode end. No marking on bidirectional types.

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test.

HE3 suffix for high reliability grade, meets JESD 201

class 2 whisker test.

TYPICAL APPLICATIONS

Used in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive and telecommunication.

Maximun Ratings and Electrical Characteristics at 25°C

PPM

FSM

Peak Pulse Power Dissipation

with 10/1000 µs exponential pulse

Peak Forward Surge Current 8.3 ms.

(Note 1)

(Jedec Method)

(Note 2)

Max. forward voltage drop

at I

= 50 A

(Note 1)

600 W

100 A

3.5 V

- 65 to + 175 ºC

-T

STG

Operating Junction and Storage

Temperature Range

Notes: 1. Only for Unidirectional

2. Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal

www.fagorelectronica.com

Document Name: p6smb

Revision: 1

Version: Feb-14

Page Number: 1/8
