SN74F280BDR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74F280BDR

SN74F280BDR: DescriptionParity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, PDSO14, PLASTIC, SO-14; Categorylogic logic; File Size773KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SN74F280BDR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74F280BDR	-	-	View	Buy Now

SN74F280BDR Overview

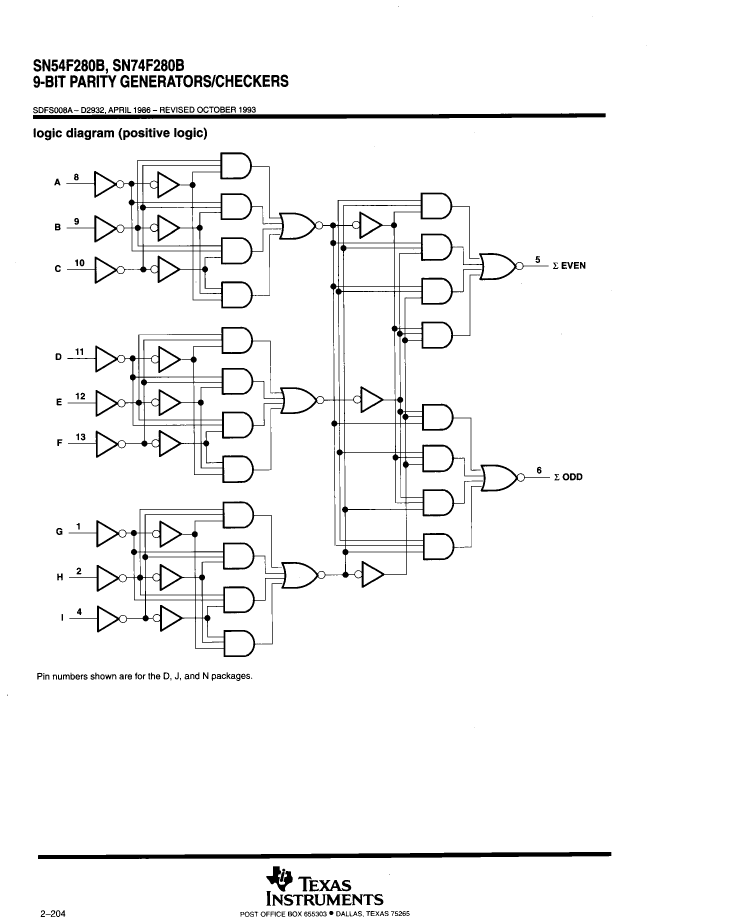

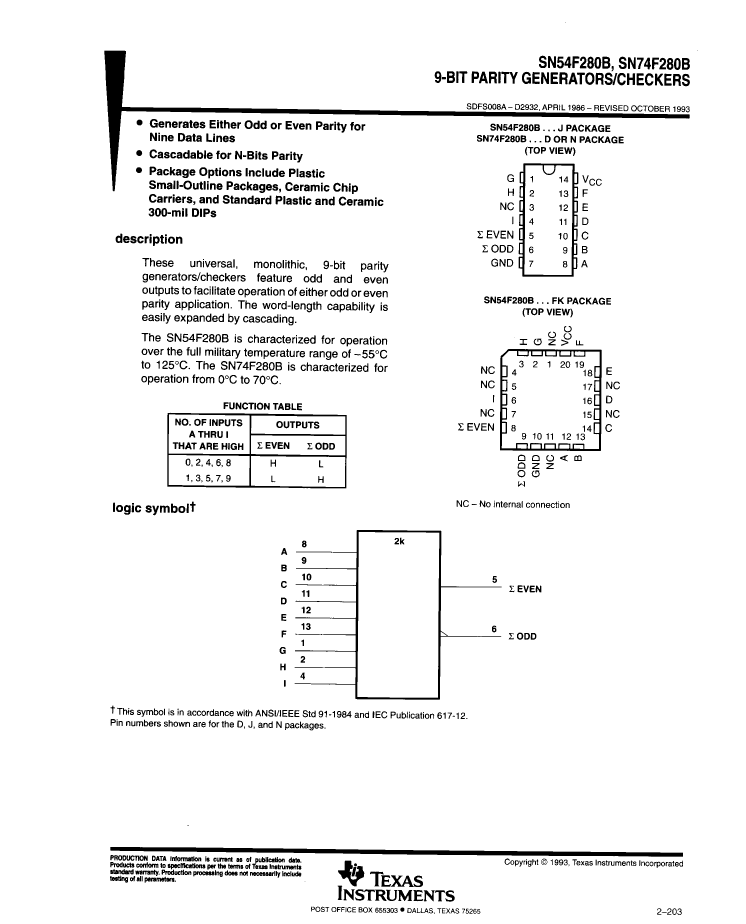

Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, PDSO14, PLASTIC, SO-14

SN74F280BDR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Other features	ODD/EVEN PARITY GENERATOR
series	F/FAST
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	8.65 mm
Logic integrated circuit type	PARITY GENERATOR/CHECKER
Humidity sensitivity level	1
Number of digits	9
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260

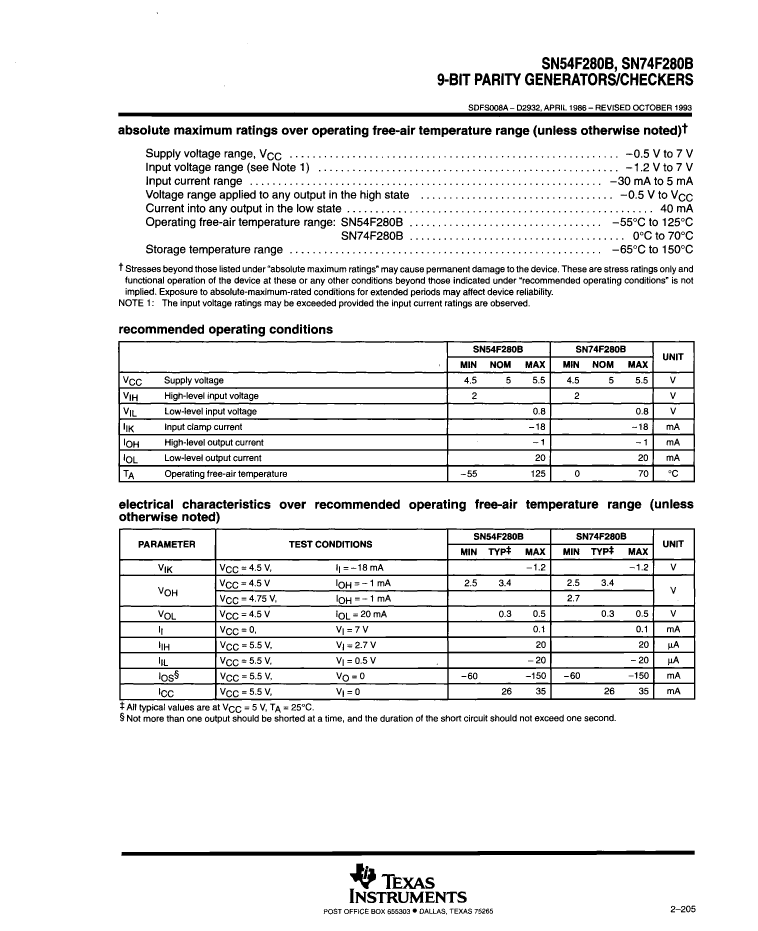

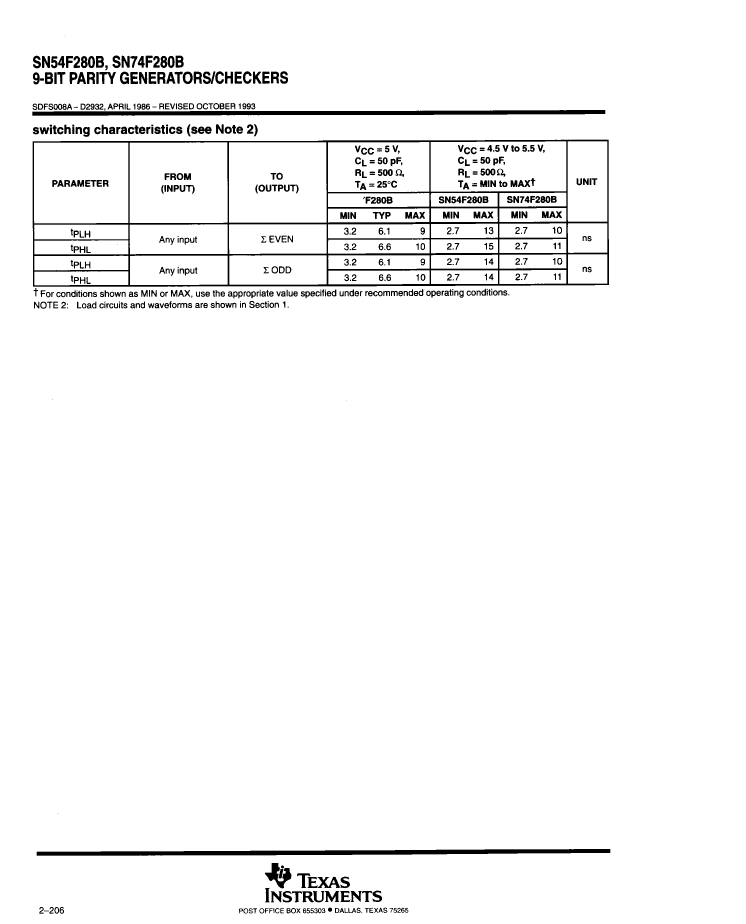

propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
