SS6714
Negative Voltage Regulator
FEATURES
Low power consumption.
Low temperature coefficient.
Output short-circuit protection.
Wide operating voltage range.
Good input stability.
Space-saving packages -
TO-92
or
SOT-89
DESCRIPTION
The SS6714 is a series of 3-terminal negative
voltage regulators with output voltages internally
set below the positive supply voltage. Since the
SS6714 consumes less current and requires
a smaller input/output voltage difference than
existing
industry-standard
3-terminal
voltage
regulators, higher capacity and longer service life
can be provide in battery-powered portable
equipment. The SS6714 is ideal as a power
source for liquid crystal displays.
APPLICATIONS
LCD for Printing Calculators
Cameras
Voltage References for Instrumentation
TYPICAL APPLICATION CIRCUIT
VIN
-6V
GND
SS6714-33
OUT
-3.3V
C1
1µF
+
Negative Voltage Regulator
ORDERING INFORMATION
SS6714-XXCXXX
Packing
TR: Tape and reel
TB: Tubes
Package type
X: SOT-89
Z: TO-92
Output voltage
30: -3.0V
33: -3.3V
50: -5.0V
Example: SS6714-30CXTR
à
-3.0V output, in SOT-89 package
shipped in tape and reel
PIN CONFIGURATION
SOT-89
TOP VIEW
1. VIN
2. GND
3. VOUT
1
2
3
TO-92
TOP VIEW
1. GND
2. VIN
3. VOUT
1
2
3
Rev.2.02 4/26/2004
www.SiliconStandard.com
1 of 5
SS6714
ABSOLUTE MAXIMUM RATINGS
Supply Voltage
.....................
............................………................................
-13V
Operating Temperature Range
Storage Temperature Range
Power Dissipation
.........................………........................
-
20°C~80°C
........................……….........................
-
65°C~150°C
SOT-89 Package
TO-92 Package
.....…..............
0. 80W
........…............
0.78W

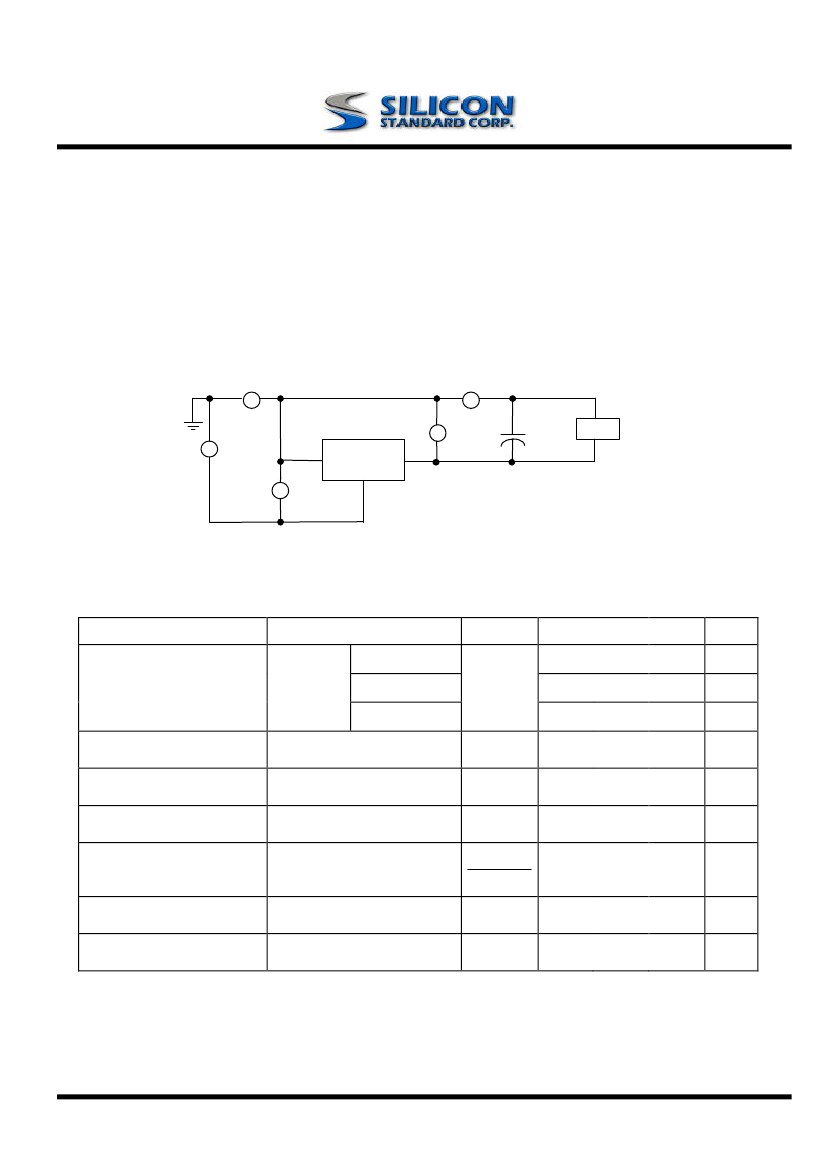

TEST CIRCUIT
I
IN
A
I
OUT
A
+
+
_
V V
OUT
+
LOAD
1µF
Voltage
Source
-
GND
V V
IN
+
SS6714
VIN
OUT
ELECTRICAL CHARACTERISTICS
PARAMETER
(VIN= -6.0V, T
J=25°C,
unless otherwise specified.)
SYMBOL
MIN.
-2.95
V
OUT
-3.25
-4.93
∆V
OUT
V
DIFF
I
IN
∆
V
OUT
∆
V
IN
•
V
OUT
TEST CONDITIONS
SS6714-30
TYP.
-3.0
-3.3
-5.0
20
50
6
0.05
50
MAX.
-3.05
-3.35
-5.07
100
200
12
UNIT
V
V
V
mV
mV
µA
%/ V
Output Voltage
I
OUT
=300µA
SS6714-33
SS6714-50
Load Regulation
I/O Voltage Difference
Supply Current
Input Stability
Temperature Coefficient
Output Short Circuit Current
I
OUT
=0~5mA
I
OUT
=300µA
I
OUT
=0
-25°C~85°C
R
LOAD
=0
T
C
15
ppm
mA
24
Rev.2.02 4/26/2004
www.SiliconStandard.com
2 of 5
SS6714

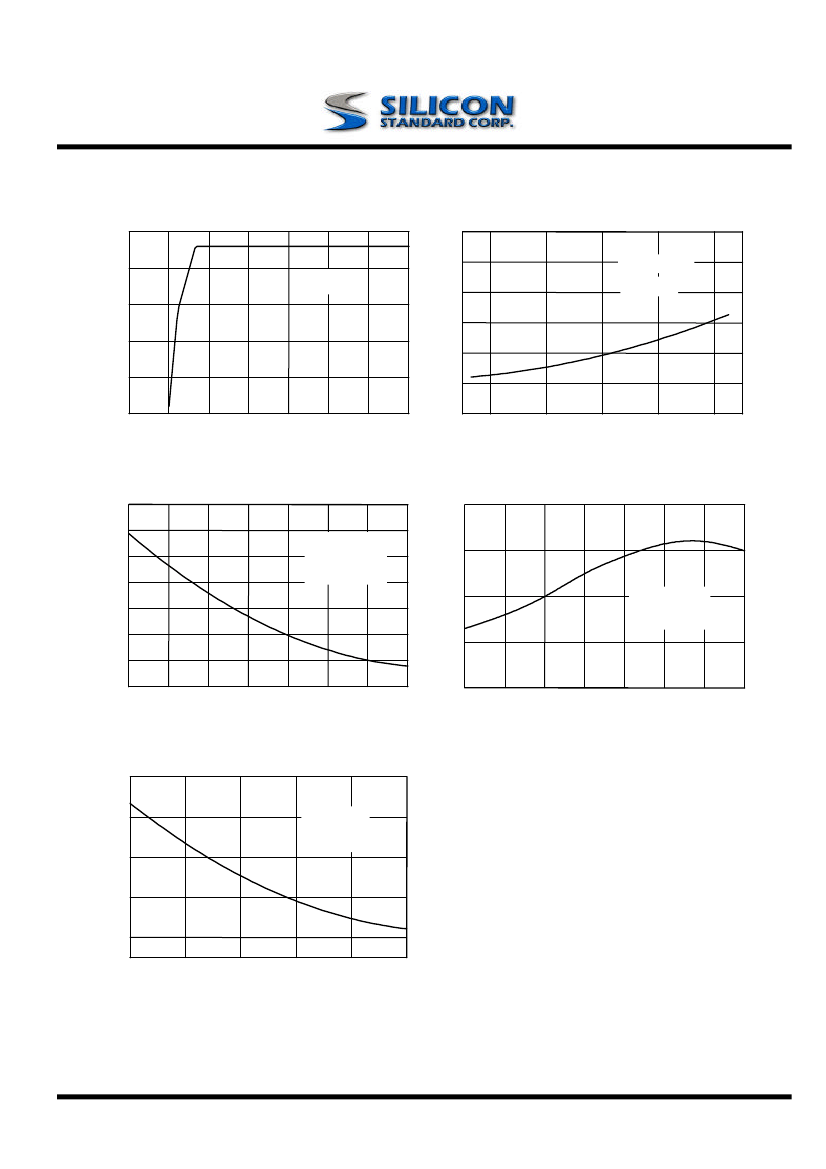

TYPICAL PERFORMANCE CHARACTERISTICS
-3.5
10
Output Voltage (V)
-3.0
T
A
=25°C
-2.5
Supply Current (
µ
A)
9
8
7
6
5
SS6714-33
T
A
=25°C
-2.0
-1.5
-1.0
0
-2
-4
-6
-8
-10
-12
-14
4
Supply Voltage (V)
Fig. 1 Output Voltage vs. Supply Voltage
(Load Current=300µA)
5.8
5.6
-3.30
Supply Voltage (V)
Supply Current Voltage vs. Supply Voltage
(No Load)
-4
-6
-8
-10
-12
Supply Current (
µ
A)
5.4
5.2
5.0
4.8
4.6
4.4
-40
Output Voltage(V)
SS6714-33
V
IN
= -6V
I
OUT
=0
-3.29
-3.28
V
IN
= -6V
I
OUT
=300µA
-3.27
-20
0
20
40
60
80
100
-3.26
-40
-20
0
20
40
60
80
100
Temperature (°C)
Fig. 3 Supply Current vs Temperature
Temperature (°C)
Fig 4 Output Voltage vs Temperature
-3.270
-3.275
Output Voltage (V)
V
IN
= -6V
T
A
=25°C
-3.255
0
-3.260
-3.265
1
2
3
4
5
Load Current (mA)
Fig. 5 Output Voltage vs Load Current
Rev.2.02 4/26/2004
www.SiliconStandard.com
3 of 5
SS6714
BLOCK DIAGRAM
GND
+
V
REF
-
+
-
VIN
VOUT
PIN DESCRIPTIONS
VOUT PIN - Output pin.
GND PIN - Power GND.
VIN PIN
- Power Supply Input.
APPLICATION INFORMATION
A capacitor of at least 1µF is required between the
output of the SS6714 and ground for stability.
Without this capacitor the part will oscillate. Even
though most types of capacitor may work, the
equivalent series resistance (ESR) should be held
to 5
Ω
or less if an aluminum electrolytic type is
used. Many aluminum electrolytic capacitors have
electrolytes that freeze at about -30°C, so solid
tantalum capacitors are recommended for operation
below -25°C. The value of this capacitor may be
increased without limit.
A capacitor of at least 0.1µF should be placed from
the input of the SS6714 to ground if the lead
inductance between the input and power source
exceeds 500nH (approximately 10 inches of trace).
Rev.2.02 4/26/2004
www.SiliconStandard.com
4 of 5
SS6714

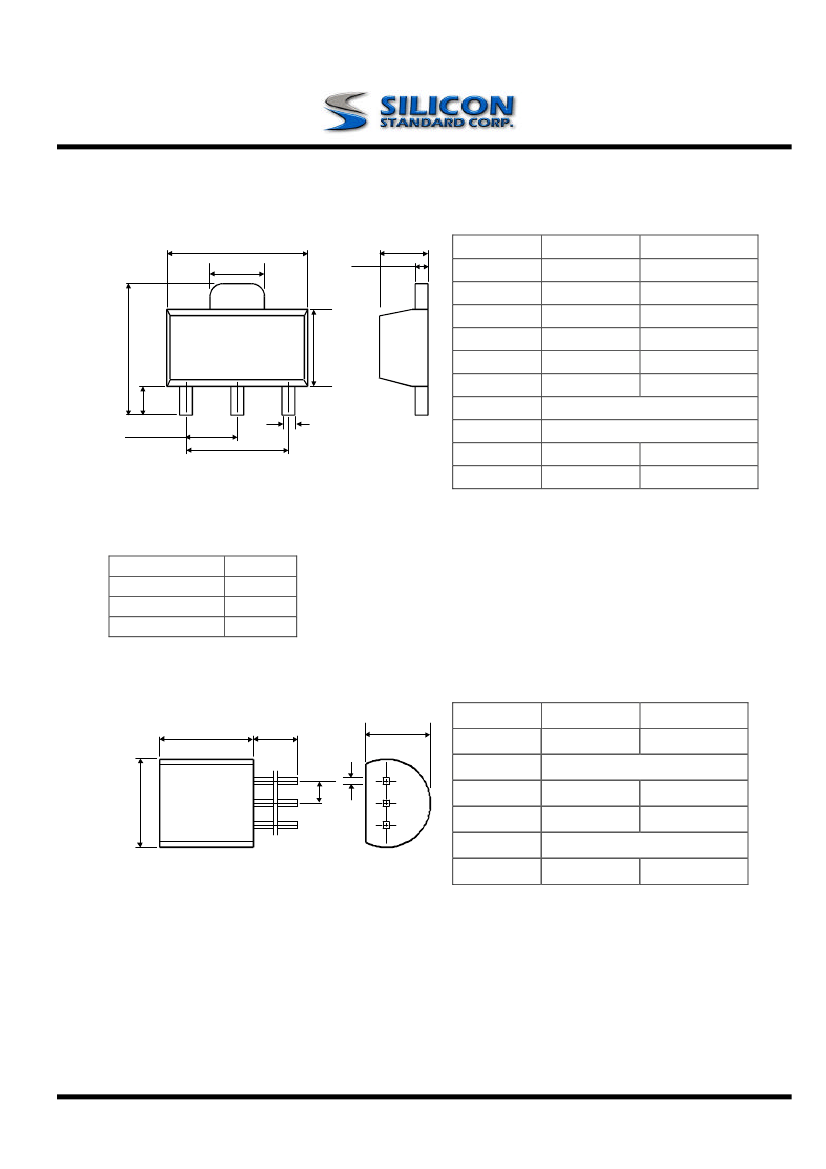

PHYSICAL DIMENSIONS
SOT-89 (unit: mm)
D
D1
C
A
SYMBOL
A
B
C
D
MIN
1.40
0.36
0.35
4.40
1.62
2.29
MAX
1.60
0.48
0.44
4.60
1.83
2.60
1.50 (TYP.)
3.00 (TYP.)
H
E
D1
E
e
L
e
e1
B
e1
H
L
3.94
0.89
4.25
1.20
SOT89 Marking
Part No.
SS6714-30
SS6714-33
SS6714-50
Marking
AP30
AP33
AP50
TO-92 (unit: mm)
SYMBOL
A
C
e1
D
A
L
C
E
MIN
4.32
MAX
5.33
0.38 (TYP.)
D
E
e1
L
4.40
3.17
5.20
4.20
1.27 (TYP.)
12.7
-
