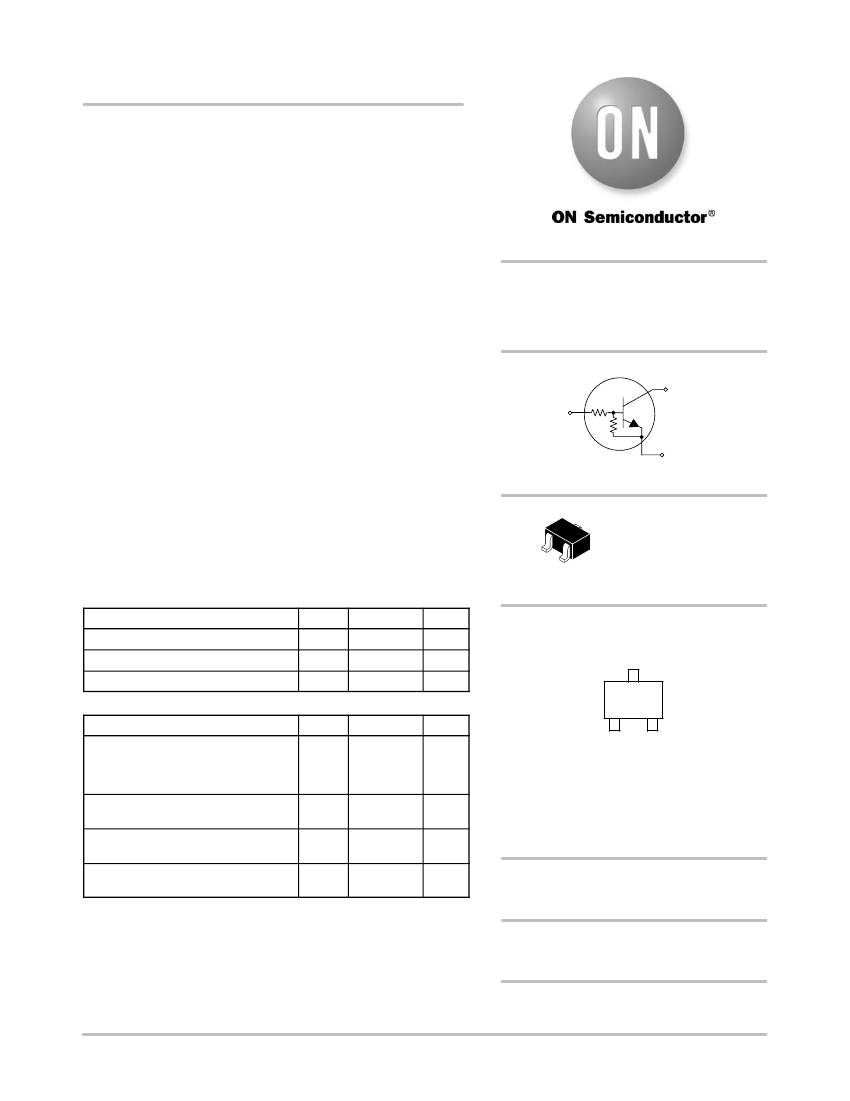

MUN5211T1 Series
Preferred Devices
Bias Resistor Transistor
NPN Silicon Surface Mount Transistor
with Monolithic Bias Resistor Network
This new series of digital transistors is designed to replace a single
device and its external resistor bias network. The BRT (Bias Resistor
Transistor) contains a single transistor with a monolithic bias network
consisting of two resistors; a series base resistor and a base-emitter
resistor. The BRT eliminates these individual components by
integrating them into a single device. The use of a BRT can reduce
both system cost and board space. The device is housed in the
SC-70/SOT-323 package which is designed for low power
surface mount applications.
Features
http://onsemi.com
NPN SILICON
BIAS RESISTOR
TRANSISTORS
PIN 3
COLLECTOR
(OUTPUT)
PIN 2
EMITTER
(GROUND)
•
•
•
•
Simplifies Circuit Design
Reduces Board Space
Reduces Component Count
The SC-70/SOT-323 package can be soldered using wave or reflow.
The modified gull-winged leads absorb thermal stress during
soldering eliminating the possibility of damage to the die.
•
Available in 8 mm embossed tape and reel. Use the Device Number
to order the 7 inch/3000 unit reel.
•
Pb-Free Packages are Available
MAXIMUM RATINGS
(T
A
= 25°C unless otherwise noted)
Rating
Collector-Base Voltage
Collector-Emitter Voltage
Collector Current
Symbol
V
CBO
V
CEO
I
C
Value
50
50
100
Unit
Vdc
Vdc
mAdc
PIN 1
BASE
(INPUT)
R
1
R
2
3
1
2
SC-70/SOT-323
CASE 419
STYLE 3
MARKING DIAGRAM
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation
T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Lead
Junction and Storage Temperature
Range
Symbol
P
D
Max
202 (Note 1)
310 (Note 2)
1.6 (Note 1)
2.5 (Note 2)
618 (Note 1)
403 (Note 2)
280 (Note 1)
332 (Note 2)
-55 to +150
Unit
mW
mW/°C
°C/W
°C/W
°C
8x M
G
G
R
qJA
R
qJL
T
J
, T
stg
8x = Device Code
M = Date Code*
G
= Pb-Free Package
(Note: Microdot may be in either location)
*Date Code orientation may vary depending
upon manufacturing location.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR-4 @ Minimum Pad.
2. FR-4 @ 1.0 x 1.0 inch Pad.
DEVICE MARKING INFORMATION
See specific marking information in the device marking table
on page 2 of this data sheet.
Preferred
devices are recommended choices for future use
and best overall value.
©
Semiconductor Components Industries, LLC, 2007
1
September, 2007 - Rev. 8
Publication Order Number:
MUN5211T1/D
MUN5211T1 Series
DEVICE MARKING AND RESISTOR VALUES
Device
MUN5211T1
MUN5211T1G
MUN5212T1
MUN5212T1G
MUN5213T1
MUN5213T1G
MUN5214T1
MUN5214T1G
MUN5215T1
MUN5215T1G
MUN5216T1 (Note 3)
MUN5216T1G (Note 3)
MUN5230T1
MUN5230T1G
MUN5231T1 (Note 3)
MUN5231T1G (Note 3)
MUN5232T1
MUN5232T1G
MUN5233T1
MUN5233T1G
MUN5234T1 (Note 3)
MUN5234T1G (Note 3)
MUN5235T1
MUN5235T1G
MUN5236T1 (Note 3)
MUN5236T1G (Note 3)
MUN5237T1 (Note 3)
MUN5237T1G (Note 3)
Package
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
SC-70/SOT-323
SC-70/SOT-323
(Pb-Free)
Marking
8A
8A
8B
8B
8C
8C
8D
8D
8E
8E
8F
8F
8G
8G
8H
8H
8J
8J
8K
8K
8L
8L
8M
8M
8N
8N
8P
8P
R1 (K)
10
10
22
22
47
47
10
10
10
10
4.7
4.7
1.0
1.0
2.2
2.2
4.7
4.7
4.7
4.7
22
22
2.2
2.2
100
100
47
47
R2 (K)
10
10
22
22
47
47
47
47
∞
∞
∞
∞
1.0
1.0
2.2
2.2
4.7
4.7
47
47
47
47
47
47
100
100
22
22
Shipping
†
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
3. New devices. Updated curves to follow in subsequent data sheets.
http://onsemi.com
2
MUN5211T1 Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Collector-Base Cutoff Current
(V
CB
= 50 V, I
E
= 0)
Collector-Emitter Cutoff Current
(V
CE
= 50 V, I
B
= 0)
Emitter-Base Cutoff Current
(V
EB
= 6.0 V, I
C
= 0)
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5215T1, G
MUN5216T1, G
MUN5230T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
MUN5236T1, G
MUN5237T1, G
I
CBO
I
CEO
I
EBO
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
50
50
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
100
500
0.5
0.2
0.1
0.2
0.9
1.9
4.3
2.3
1.5
0.18
0.13
0.2
0.05
0.13
-
-
nAdc
nAdc
mAdc
Symbol
Min
Typ
Max
Unit
Collector-Base Breakdown Voltage
(I
C
= 10
mA,
I
E
= 0)
Collector-Emitter Breakdown Voltage (Note 4)
(I
C
= 2.0 mA, I
B
= 0)
ON CHARACTERISTICS
(Note 4)
DC Current Gain
(V
CE
= 10 V, I
C
= 5.0 mA)
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5215T1, G
MUN5216T1, G
MUN5230T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
MUN5236T1, G
MUN5237T1, G
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5236T1, G
MUN5230T1, G
MUN5231T1, G
MUN5237T1, G
MUN5215T1, G
MUN5216T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
V
(BR)CBO
V
(BR)CEO
Vdc
Vdc
h
FE
35
60
80
80
160
160
3.0
8.0
15
80
80
80
80
80
-
-
-
-
-
-
-
-
-
-
-
-
-
-
60
100
140
140
350
350
5.0
15
30
200
150
140
150
140
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Vdc
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Collector-Emitter Saturation Voltage
(I
C
= 10 mA, I
B
= 0.3 mA)
V
CE(sat)
(I
C
= 10 mA, I
B
= 5 mA)
(I
C
= 10 mA, I
B
= 1 mA)
4. Pulse Test: Pulse Width < 300
ms,
Duty Cycle < 2.0%
http://onsemi.com
3
MUN5211T1 Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted) (Continued)
Characteristic
ON CHARACTERISTICS
(Note 5) (Continued)
Output Voltage (on)
(V
CC
= 5.0 V, V
B
= 2.5 V, R
L
= 1.0 kW)
V
OL
MUN5211T1, G
MUN5212T1, G
MUN5214T1, G
MUN5215T1, G
MUN5216T1, G
MUN5230T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
MUN5213T1, G
MUN5236T1, G
MUN5237T1, G
V
OH
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5234T1, G
MUN5235T1, G
MUN5230T1, G
MUN5215T1, G
MUN5216T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5236T1, G
MUN5237T1, G
R
1
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5215T1, G
MUN5216T1, G
MUN5230T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
MUN5236T1, G
MUN5237T1, G
Resistor Ratio
MUN5211T1, G
MUN5212T1, G
MUN5213T1, G
MUN5214T1, G
MUN5215T1, G
MUN5216T1, G
MUN5230T1, G
MUN5231T1, G
MUN5232T1, G
MUN5233T1, G
MUN5234T1, G
MUN5235T1, G
MUN5236T1, G
MUN5237T1, G
5. Pulse Test: Pulse Width < 300
ms,
Duty Cycle < 2.0%
R
1
/R
2
0.8
0.8
0.8
0.17
-
-
0.8
0.8
0.8
0.055
0.38
0.038
0.8
1.7
1.0
1.0
1.0
0.21
-
-
1.0
1.0
1.0
0.1
0.47
0.047
1.0
2.1
1.2
1.2
1.2
0.25
-
-
1.2
1.2
1.2
0.185
0.56
0.056
1.2
2.6
7.0
15.4
32.9
7.0
7.0
3.3
0.7
1.5
3.3
3.3
15.4
1.54
70
32.9
10
22
47
10
10
4.7
1.0
2.2
4.7
4.7
22
2.2
100
47
13
28.6
61.1
13
13
6.1
1.3
2.9
6.1
6.1
28.6
2.86
130
61.1
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
kW
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
Vdc
Vdc
Symbol
Min
Typ
Max
Unit
(V
CC
= 5.0 V, V
B
= 3.5 V, R
L
= 1.0 kW)
(V
CC
= 5.0 V, V
B
= 5.5 V, R
L
= 1.0 kW)
(V
CC
= 5.0 V, V
B
= 4.0 V, R
L
= 1.0 kW)
Output Voltage (off)
(V
CC
= 5.0 V, V
B
= 0.5 V, R
L
= 1.0 kW)
(V
CC
= 5.0 V, V
B
= 0.05 V, R
L
= 1.0 kW)
(V
CC
= 5.0 V, V
B
= 0.25 V, R
L
= 1.0 kW)
Input Resistor
http://onsemi.com
4
京公网安备 11010802033920号
EEWORLD
